Overview

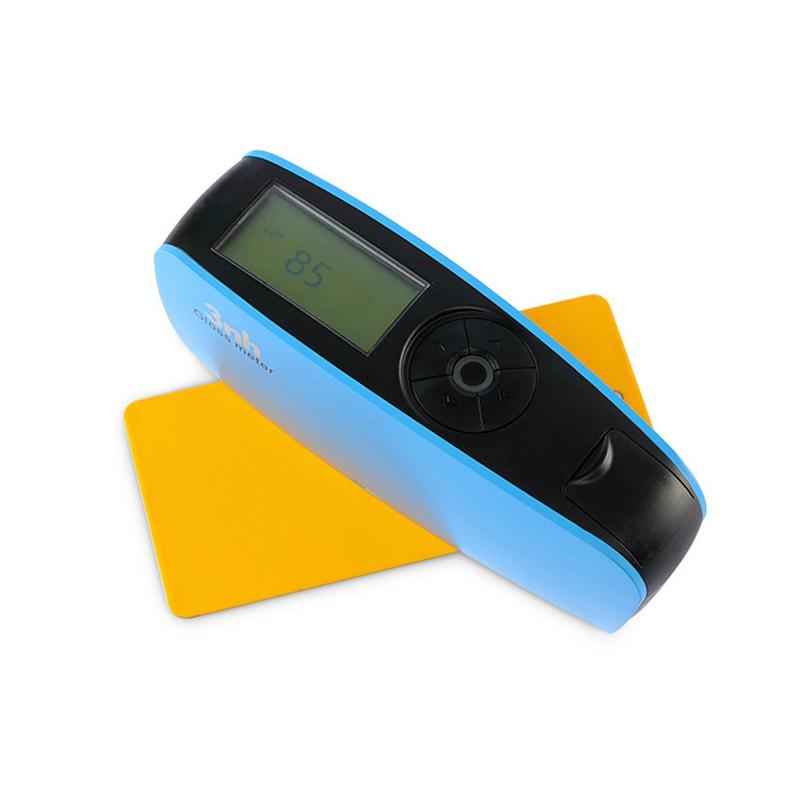

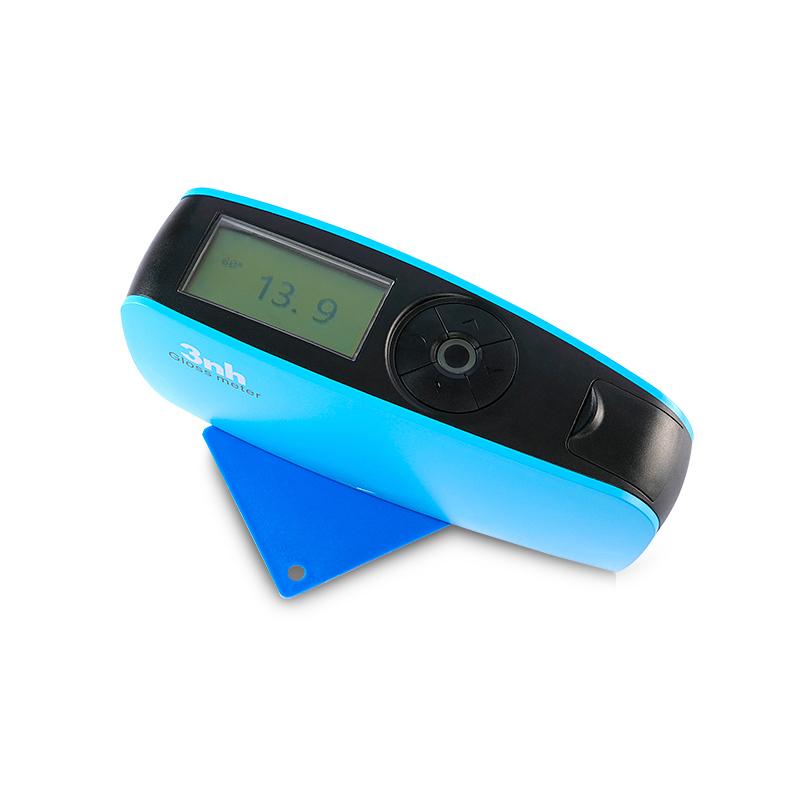

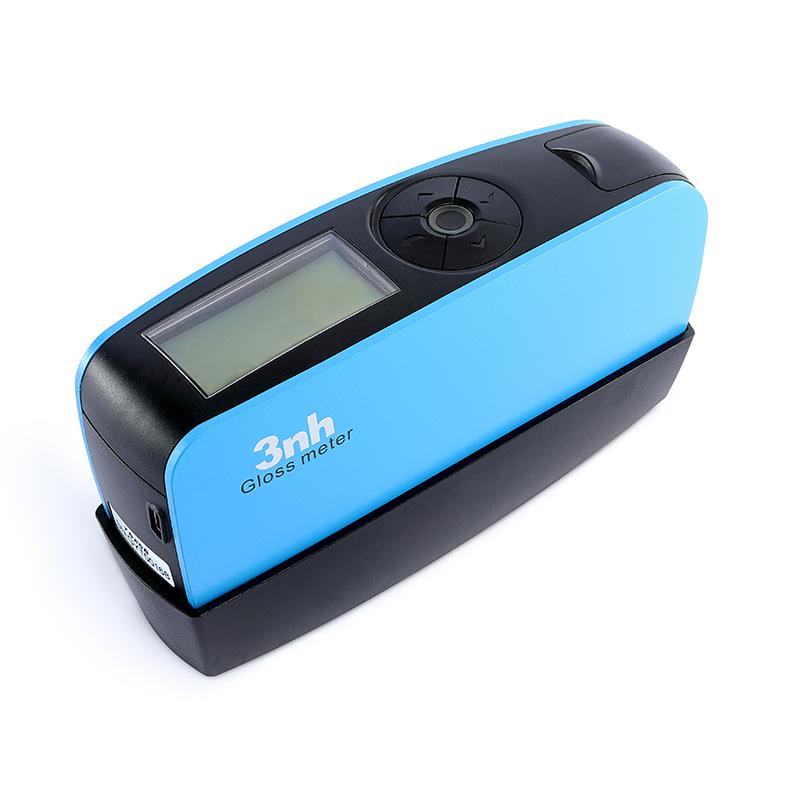

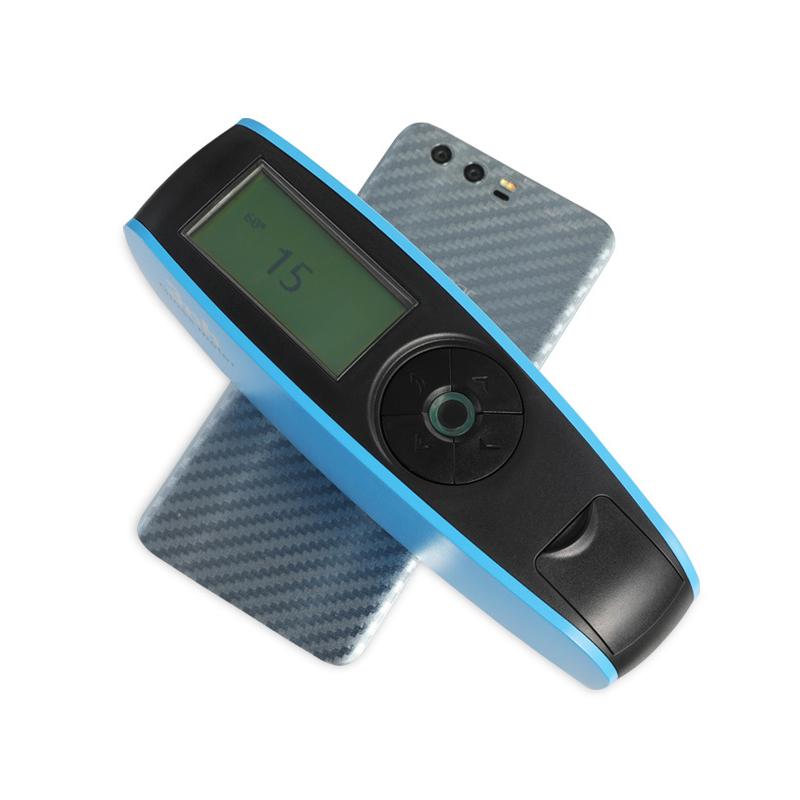

YG60 glossmeter is a 60 ° gloss measurement instrument designed and manufactured with reference to the international standard ISO2813 and the Chinese national standard GB/T9754. It has the function of automatically checking the calibration plate and is equipped with high-end quality management software to meet the requirements of JJG696 first-level working Glossiness Meter.
Features
1. Aesthetic surface design is closely integrated with ergonomics
2. With the function of automatically checking and correcting the standard board
3. Meet JJG696 level 1 glossmeter requirements
4. Large storage space, can store 35000 measurement data
5. With automatic shutdown function, 30 to 120 seconds can be freely selected
6. Comply with standards ISO2813, ASTMD523, GB/T9754
7. Equipped with quality management software, Quality control reports can be printed to achieve more functional expansion
8. Multiple Operating Modes, Multiple Function Settings, Can Meet Different Needs of Customers
Principle
The YG60 glossmeter uses 60 ° Measurement Angles to analyze the reflected light on the sample surface through the Measuring Area to achieve accurate measurement of gloss. The instrument has an automatic inspection calibrate function to ensure the accuracy of measurement data.
Applications
Paints inks, paints, paper printing, plastic electronics, furniture, Pottery and porcelain, Eletroplating, Hardware, Marble
Standards
ISO2813、ASTMD523、GB/T9754、JJG696
Steps
1. Automatic inspection and calibrating
2. Select measurement mode (basic mode, statistical mode, continuous mode, quality control mode)
3. Align the Instrument Measuring Area to the Surface of the Sample
4. Perform measurement, the measurement time is about 0.5 seconds
5. Data is automatically stored or transferred to the computer via the USB interface
6. Use GQC6 quality management software for data analytics and report printing
Notice
• operation temperature range is 0~ 40 ℃
• Storage temperature range -20~ 50 ℃
• relative humidity should be less than 85% RH, no condensation

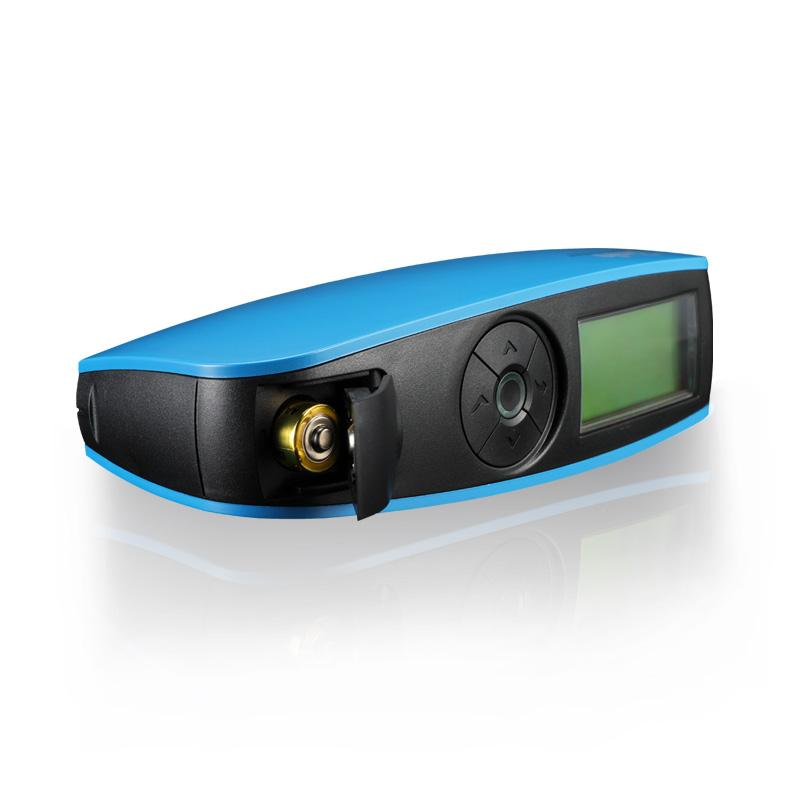

• Powered by AA alkaline batteries or NiMH rechargeable batteries or USB port
• Ensure instruments are properly calibrated before measurement
• Avoid use in a strong light environment
• Regularly clean measurement windows and calibration plates
