Overview

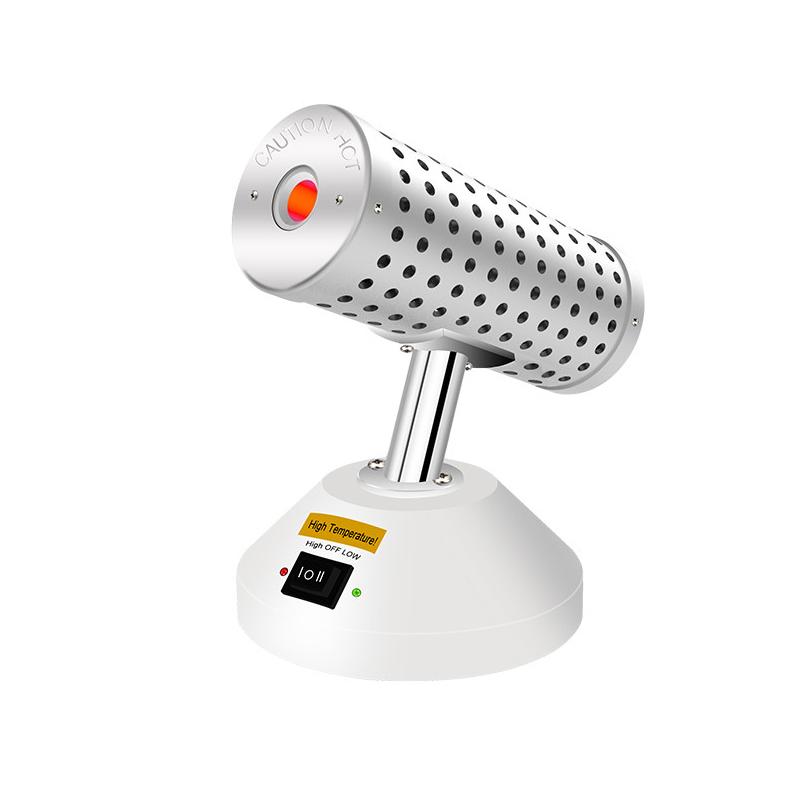

HM-15 infrared inoculation ring Autoclave is a high temperature sterilizing equipment of HUXI brand, which is specially used for rapid sterilization of inoculation rings, inoculation needles and other small items. It can completely replace traditional alcoholburners and is suitable for biological safety cabinets, Laminar Flow Cabinets, next to extractor fans, mobile cars and other environments. It can be easily used even in harsh conditions in the field.
Features
1. Inoculation ring sterilizing is safe, convenient, and can safely replace alcoholburners
2. The heating zone temperature can reach 800 ° C or higher, and sterilization only takes 5 to 7 seconds
3. Small size and light weight, easy to operate, beautiful instrument, easy to clean, long service life
4. Can be used in anaerobic chambers
5. Adopt intelligent algorithms to extend the service life of heating and improve safety
6. Pottery and porcelain funnel deep ash organic matter, Pollution properties to prevent splashing and cross contamination
Principle
The Autoclave uses infrared heating technology to make the central temperature of the heating zone reach a high temperature of 825 ° C +/- 25 ° C, and quickly sterilize small items such as seed rings at high temperature. Pottery and porcelain funnel pipes are deep in the ash treatment of organic substances to effectively prevent cross-contamination.
Applications
Biological safety cabinet, Laminar Flow Cabinet, next to the exhaust fan, mobile vehicle, field environment
Steps
1. Connect the AC220V power supply
2. Wait 15 minutes to warm up to operating temperature
3. Put the inoculation ring and other items into the heating area for 5-7 seconds to sterilize
Notice
• Ambient Temperature should be kept within the range of 5 ℃~ 40 ℃
• The outer diameter of the maximum drug consumption shall not exceed φ 15mm
• Make sure the equipment is in good condition before use, Power frequency meets AC220V requirements
• Avoid contact with high temperature parts during operation to prevent burns
