Overview

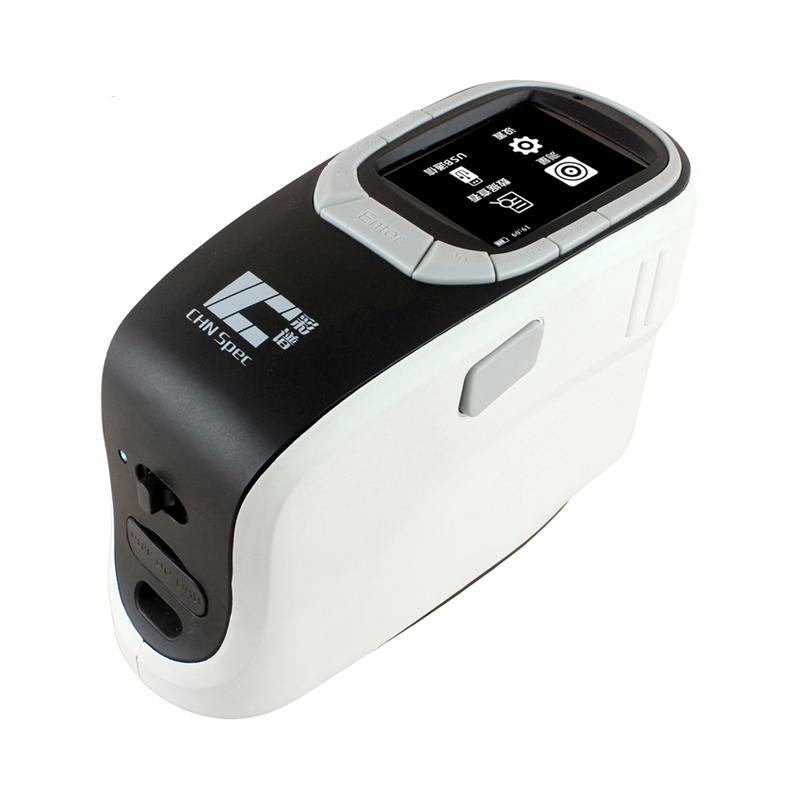

The CHNSPEC CS-600A Colorimeter is a Handheld Colorimeter for the measurement of 10mm caliber. It not only measures color differences but also analyzes colors. It has a camera view function. The large display screen intuitively and clearly displays the measurement value. It can store measurement data and personalize parameters.
Features
1. Composite LED Illuminant
2. Repeatability: Standard Deviation Within 0.05
3. Widely used in laboratories, factories, and construction sites
4. Portable, large-capacity rechargeable lithium battery, long service life, and DC power supply
5. Appearance design novel and beautiful, simple operation
6. With camera view function to prevent measurement deviation
7. Powerful storage function, can store 100 sets of master standards, each group of up to 200 test records
8. Pre-positioning board setting, easy to calibrate, no need for standard blackboard whiteboard
9. Transfer data through USB interface, support PC software operation
10. Dual Measurement mode: SCI and SCE simultaneous measurement and display results
11. Powerful built-in software, including a variety of color equations, Standard light sources and industry indicators
12. Bilingual Chinese and English Operating interface
Principle
The CHNSPEC CS-600A Colorimeter uses d/8 illumination (scattering Illuminant, 8-degree viewing angle), combined with SCI and SCE simultaneous measurement functions. It uses a dual-path array Sensor and CLEDs full-band equalized Led Illuminant to analyze color through measurement reflectance, and supports multiple Color difference formulas and Color space conversion.
Applications
Laboratory, factory, construction site
Steps
1. Boot and select Operating language
2. Use pre-positioning plates to calibrate
3. Locate the measurement area through the camera viewfinder function
4. Select Measurement mode (SCI or SCE)
5. Take measurements and see results
6. Store data or transfer via USB interface
7. Use PC software for further analysis
Notice
- Operating environment: temperature 0-45 ℃, relative humidity 80% or less (35 ℃), no water condensation
- Storage environment: temperature -25~ 55 ℃, relative humidity 80% or less (35 ℃), no water condensation
Avoid Use in Extreme Humidity Conditions
Periodically calibrated to ensure measurement accuracy
- Use a dedicated DC adapter or rechargeable lithium battery, pay attention to Battery life and charging times
