Overview

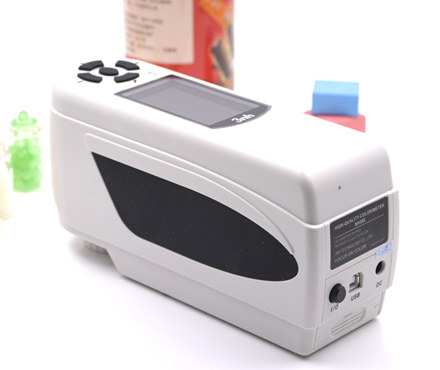

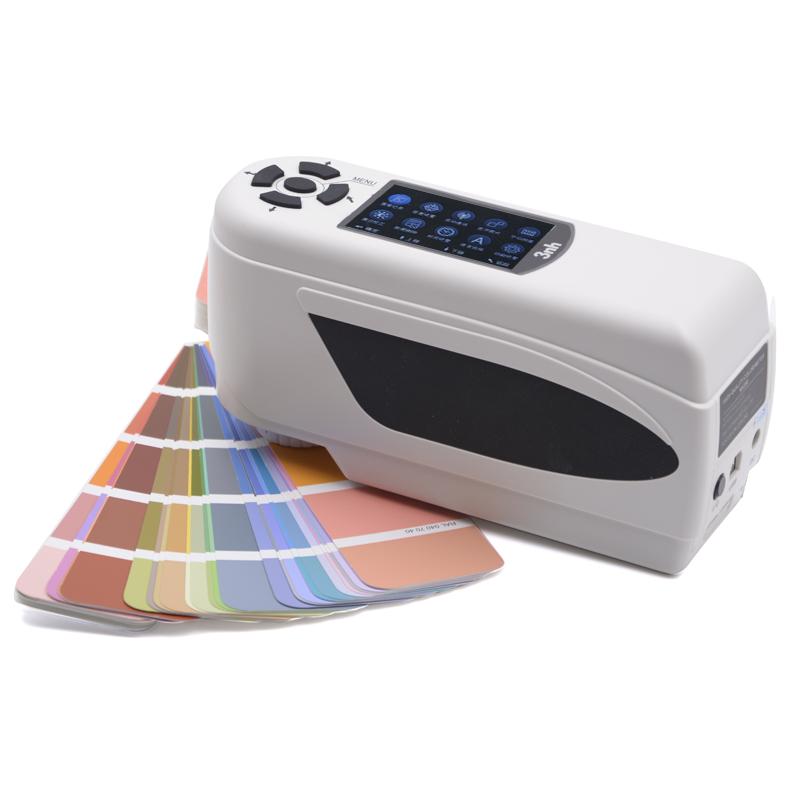

Sanenchi/3nh NH300 color difference meter is a single measurement diameter of 8mm Portable color difference meter, measurement Repeatability ≤ 0.07 Delta E, only supports D65 Measurement light source. The product combines the advantages of traditional imported color difference meters. After a lot of tests and innovative technology applications, it has the characteristics of accuracy, stability, beauty and affordability. It is a reliable solution for enterprise Color quality control management.
Features
1. Humanized design and easy operation: automatic black and white board correction, ergonomic structure design, silly Operating interface
2. Stable measurement performance: The average fluctuation of Delta E is less than 0.07, and the portable horizontal structure design ensures the measurement Stability
3. Convenient and fast positioning: equipped with lighting positioning function
4. PC-side software function expansion: equipped with genuine software serial number and password protection, support color difference analysis, color sample library management, color difference cumulative analysis and other functions
5, power management design: using high-capacity lithium-ion battery, charging can be measured more than 3000 times
Principle
NH300 color difference meter uses 8 °/d illumination mode and LED Illuminant. Color data is collected by silicon photodiode sensor, and color difference calculation is carried out in CIE LAB, LCh, XYZ and other Color spaces. Color difference evaluation is carried out using Delta E * ab Color difference formula.
Applications
Enterprise Color Quality Control Management
Standards
CIE No.15、GB/T 3978
Steps
1. Automatic black and white board correction when turned on
2. Use the light positioning function for quick positioning
3. Color measurement
4. Data analysis and management through PC software
Notice
• Measurement light source only supports D65
• Fixed measurement diameter of 8mm
• Operating Ambient Temperature 0~ 40 ℃
• Storage Ambient Temperature -20~ 50 ℃
• Use the genuine software serial number and password for software authorization
