Overview

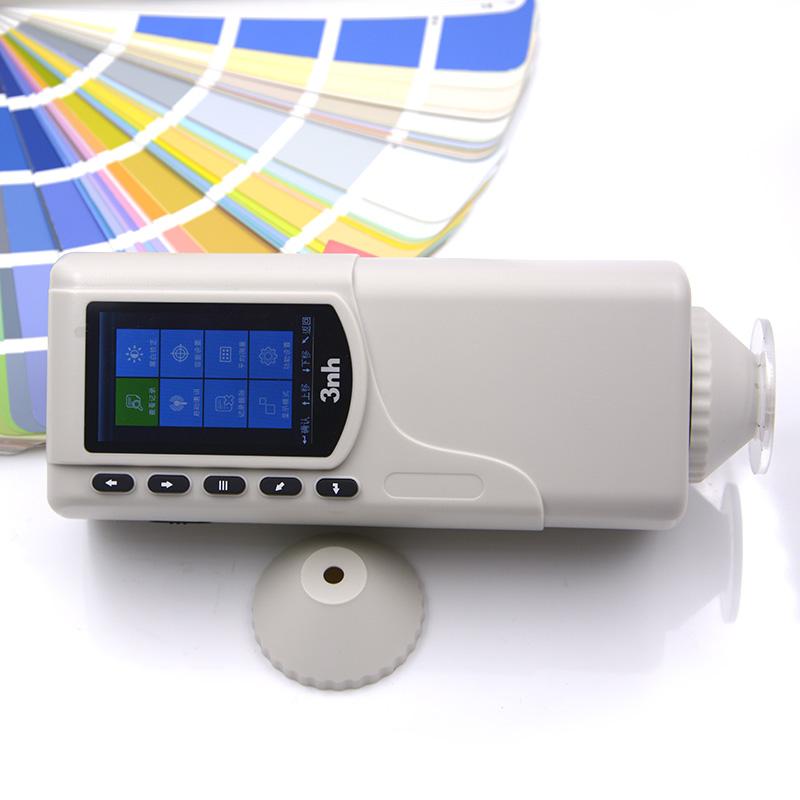

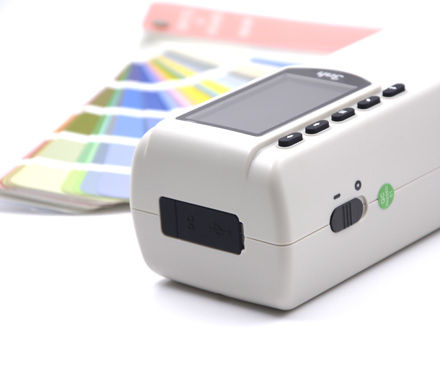

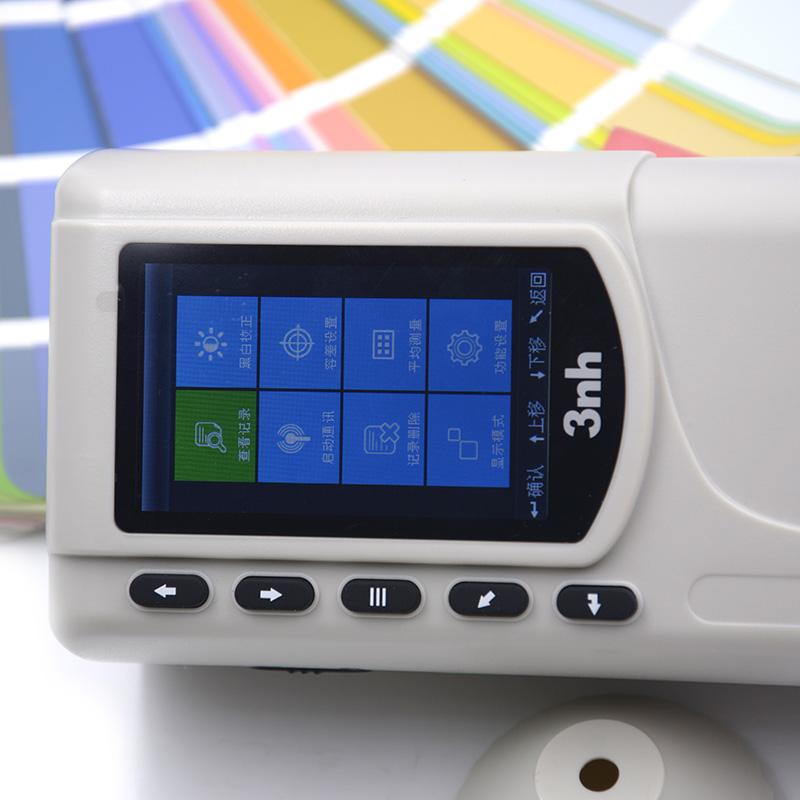

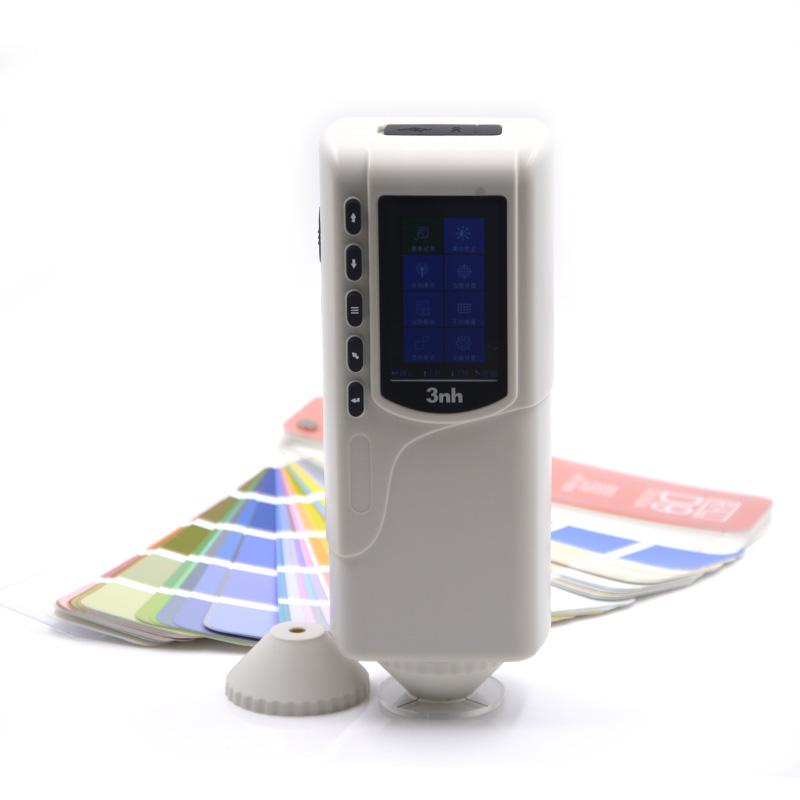

Sanenchi/3nh NR110 color difference meter is a handheld Portable small diameter color difference meter with a measurement diameter of 4mm. It is lightweight and easy to carry. It can be connected to computer operation data or printer printing data. The instrument is developed and produced according to CIE relevant standards and national standards. It adopts imported key components. It has the characteristics of accuracy and stability, simple operation, easy to learn and understand, and economical. It is suitable for production lines and communication sites, which is convenient for measurement operations and visual viewing of data.
Features
1. Built-in whiteboard parameters, no need for each calibration, to achieve fast boot measurement
2. Dual positioning: new technology of lighting positioning and accurate positioning of crosses
3, double measurement end face can be switched: large area stable end face and small area measurement concave and convex end face
4. New Integrating Sphere Optical Path Design: Eliminate Stray Light from Main Optical Path and Auxiliary Optical Path, Improve Measurement Stability and Accuracy
5, 4mm measurement diameter, vertical design, suitable for more measurement occasions
6. Adopt high-capacity rechargeable lithium-ion polymer battery, no need to buy batteries repeatedly
7. Configure CQCS3 high-end host computer software and connect to PC to achieve more functions
8, through SCM metrology authentication, CE certification, TUV certification, produced by ISO9001 international mass management certification enterprises
9. Exquisite Appearance, Adopting Traditional and Trend Double Aesthetic Design
10. Cost-effective, favored by industry users
Principle

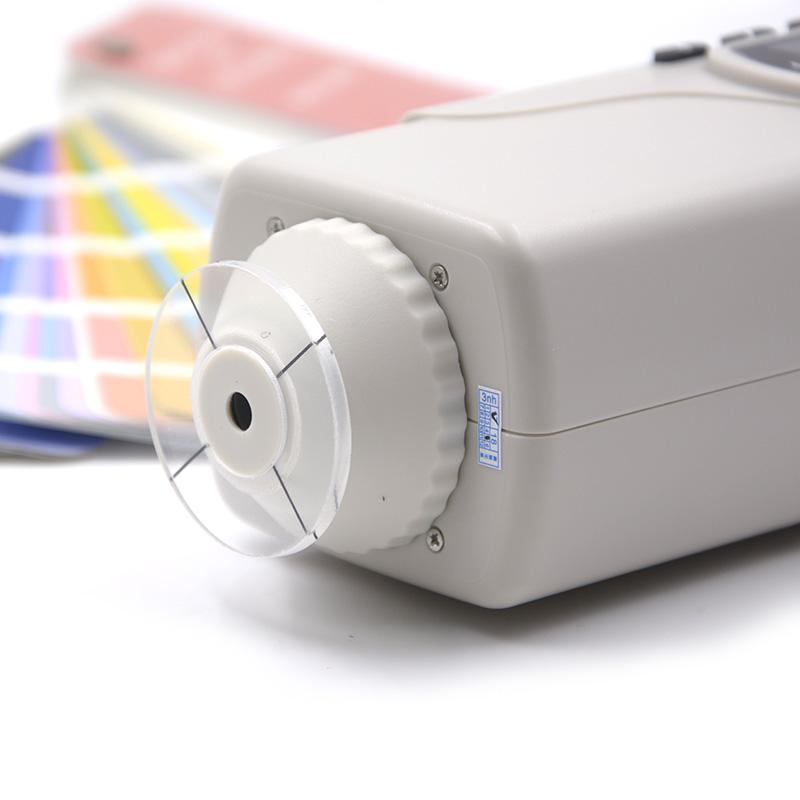

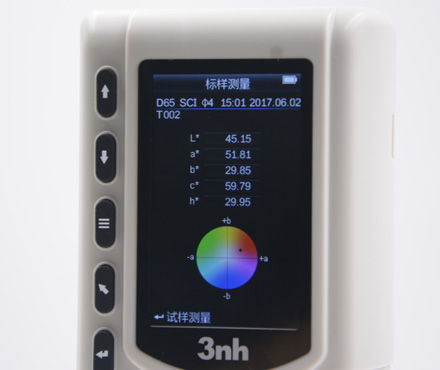

The NR110 color difference meter adopts 8 °/d lighting mode and LED Illuminant, the sensor is a silicon photodiode, and it is designed according to CIE standards and national standards. The new integrating sphere optical path design eliminates stray light in the main optical path and auxiliary optical path to ensure high measurement Stability and accuracy. The measurement diameter is φ 4mm, and the platform and pointed nozzle measurement end face can be switched. Color space includes CIE LAB, XYZ, LCh. Color difference formula is Delta E * ab. The observation angle is CIE 10 °. Measurement light source is D65.
Applications
Color quality control and color difference detection in Spinning & weaving, printing and dyeing, clothing, footwear, leather, chemical, plastic, plastic, pigment, paints, inks, printing, Hardware, photography, toys, food and other industries
Standards
SCM metrology authentication, CE certification, TUV certification, ISO9001 international mass management certification
Notice
• NR110 color difference meter is a precision instrument, to avoid external impact, causing irreversible damage
• Keep the instrument clean and tidy to prevent dust, water or Miscellaneous fine particles from entering the interior
• Storage environment should be drying, cool, avoid sun exposure or moisture
• Do not disassemble at will to avoid damage to the color difference meter
