Overview

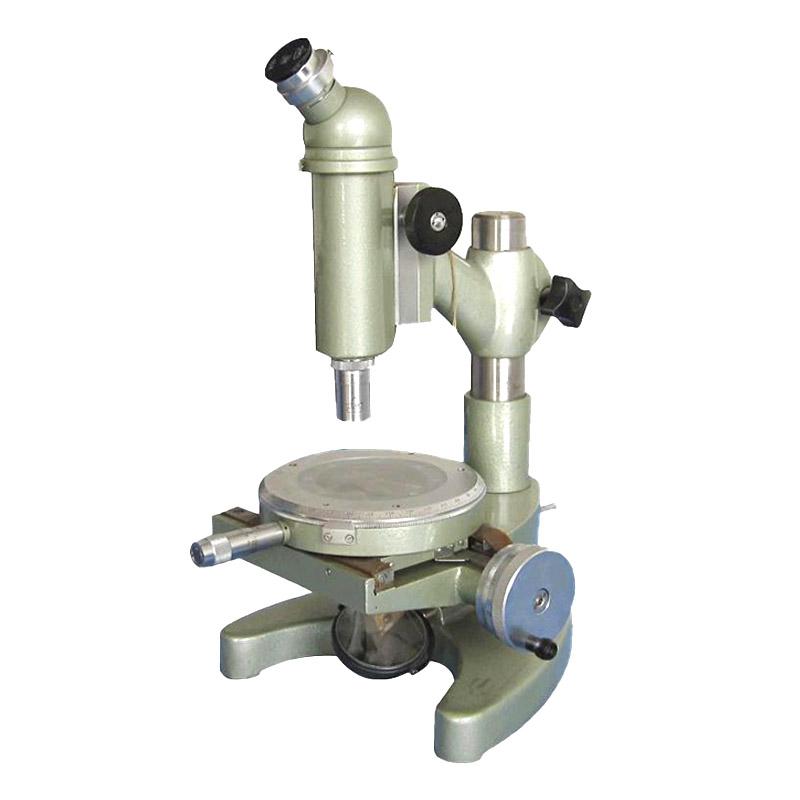

The TEELEN 15J measurement Microscope is a simple, easy to operate and durable measuring instrument with a long history and wide range of applications.
Features
1. Simple structure, easy operation and durability
2. Long history and wide range of applications
3. Optional multiple objective lenses (4 x, 5 x, 20 x, 40 x, 60 x)
4, the diameter of the measurement table is 120mm, Glass table diameter is 80mm
5, measurement range X-Y: 50 × 13mm, resolution 0.01mm
6, measurement accuracy: Instrument Indication Error +/- (5 + L/15) µm
7. The lifting range is 60mm, and the lens barrel and worktable can be rotated 360º.
Principle
Object was observed and measured by the magnification system of objective lens and eye lens, length was measured by coordinate system, angle was measured by rotating dial, surface finish was checked by comparison method.
Applications
Length measurement, angle measurement, surface finish inspection, metallurgical industry ore specimen identification, fiber inspection, printing industry, photographic industry, electronics industry
Steps
1. Measure the length in the coordinates: hole spacing, base surface distance, inner and outer diameter, keyway width, slot-die width, reticle width, etc
2. Rotate the dial to measure the angle: samples, gauges, drilling templates and parts with complex geometries for shape and angle measurement
3, used as an observation Microscope to check the work surface finish by comparison, identify metallurgical industry ore specimens, inspection of fibers and fine operations in printing, photography and electronics industries
Notice
• Instrument Indication Error is +/- (5 + L/15) µm, where L is the length of the measured piece mm
• The diameter of the measurement table is 120mm, and the diameter of the Glass table is 80mm.
• measurement range X-Y: 50 × 13mm
• Resolution: 0.01mm (micrometer drum reading)
• Lifting range 60mm
• Both the lens barrel and the worktable can be rotated 360º.
