Overview

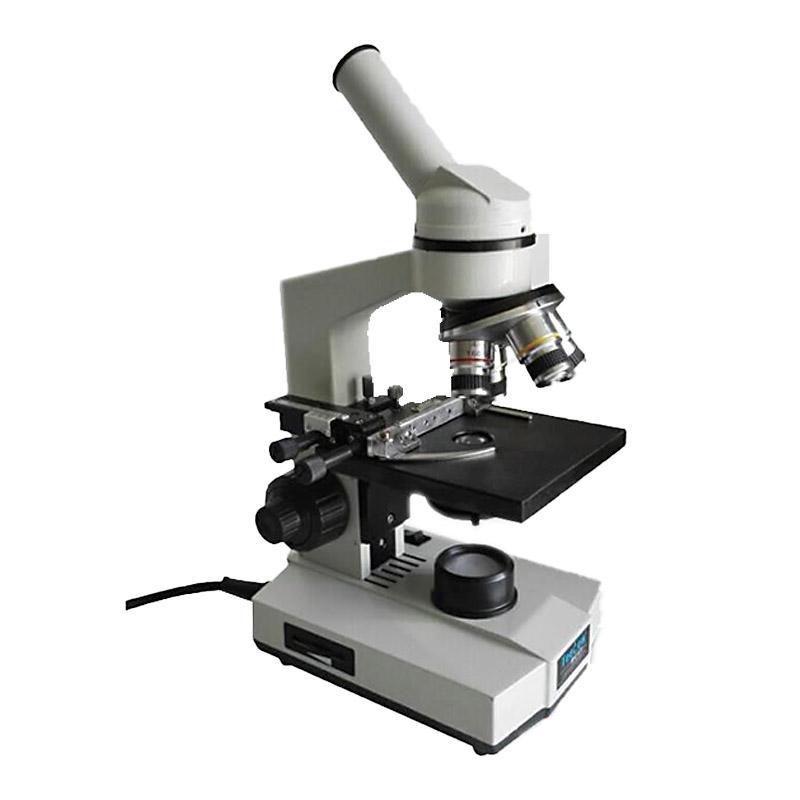

TEELEN XSP-1C Monocular Biological Microscope is a fully functional, clear imagery, cost-effective opticalin strument. The Microscope adopts traditional model design, stable mass, and a total magnification of 40-1000 times. It is suitable for three routine human assays and small units such as agriculture, forestry, fishery and aquaculture for assay analysis.
Features
1, traditional model design, mass stability, cost-effective
2. Adopting a liftable Abbe condenser, the condenser has a large adjustment range and good contrast
3. Adopt planetary coaxial coarse fretting focusing device for comfortable and stable focusing
4. Adopt double-decked mechanical stage with scale ruler, coaxial vertical and horizontal adjustment handwheel, easy to operate
Principle
The microscope realizes the sample magnification observation through the Optical inspection system, uses the four-hole converter with the color difference elimination objective lens to switch the magnification, provides uniform illumination through the Abbe condenser, and uses the coaxial coarse fretting focusing device to achieve accurate focusing, and finally forms a clear enlarged image in the eyepiece.
Applications
Three routine human body tests, agriculture, forestry, fishery and aquaculture analysis
Steps
1. Turn on the 220V power supply and turn on the lighting system
2. Place the sample on the stage
3. Focus through coaxial coarse fretting focusing device
4, swirl/spin four-hole converter to choose the appropriate objective magnification
5. Adjust the height of the Abbe condenser and the light bar to obtain the best observation effect
6. Observe the sample through the eyepiece and record it
Notice
• When using 100X oil mirror, you need to add mirror oil drip.
• Pay attention to the elastic adjustment of the coarse fretting focusing device during operation
• Optical inspection lens clean to avoid scratches
• Turn off the power in time after use
• Pay attention to handle with care when handling to avoid collisions
