Overview

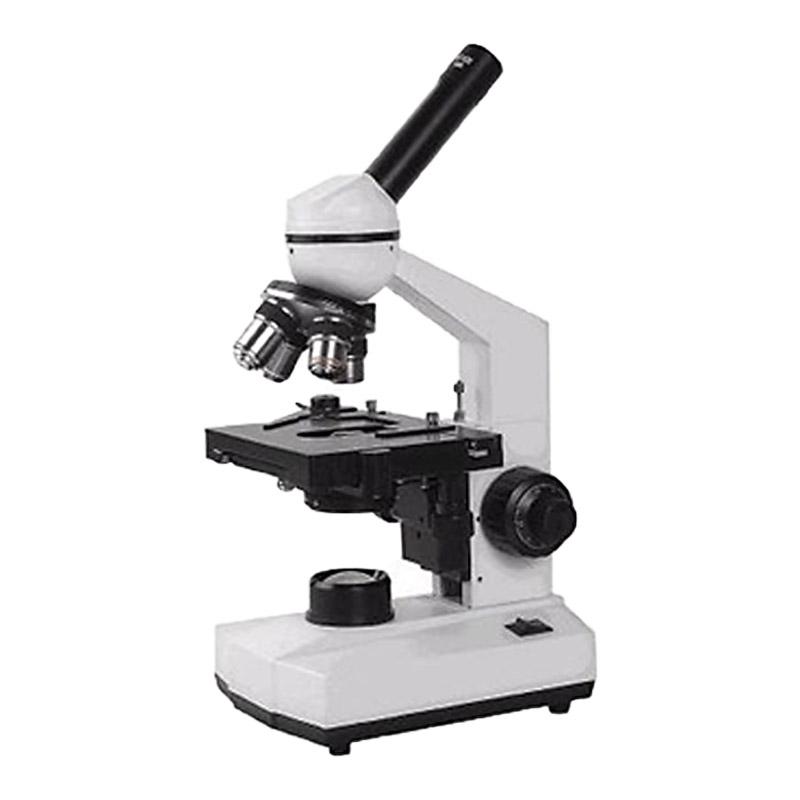

This monocular biological Microscope model is XSP-1CA, which can be magnified to 40-1600 times by monocular four-hole conversion. It is one of the instruments required for major scientific research and institutions and laboratory tests. It has the advantages of complete functions, clear imagery and high cost performance. It is suitable for three major routine tests on the human body and small units such as agriculture, forestry, fishery and aquaculture.
Features
1. Traditional models, stable mass and cost-effective
2. Adopting a liftable Abbe condenser, the condenser has a large adjustment range and good contrast
3. Adopt planetary coaxial coarse fretting focusing device for comfortable and stable focusing
4. Adopt double-decked mechanical stage with scale ruler, adjust handwheel coaxially vertically and horizontally, and operate more conveniently
Principle
The microscope realizes magnification observation through the Optical inspection system, adopts the combination of eliminating color difference objective lens and flat field eyepiece, and cooperates with the Abbe condenser lens to provide uniform illumination. The coarse micro-motion coaxial focusing system precisely adjusts the focal length, and the converter switches the objective lens of different magnifications to achieve the total magnification observation of 40-1600 times.
Applications
Scientific research institutions, university laboratories, laboratories, three routine human body tests, agriculture, forestry, fisheries and aquaculture analysis
Steps
1. Turn on the power supply and turn on the lighting system
2. Place the sample on the stage
3. Adjust the focal length through the coarse fretting focusing device
4, swirl/spin converter to select the appropriate magnification objective
5, adjust the condenser and light bar for the best imagery effect
6. Observe through eyepieces
Notice
• When using 100X oil mirror, you need to add mirror oil drip.
• Smooth operation is required when adjusting the coarse fretting focus
• Optical inspection components kept clean
• Turn off the power in time after use
• Be careful when handling
