Overview

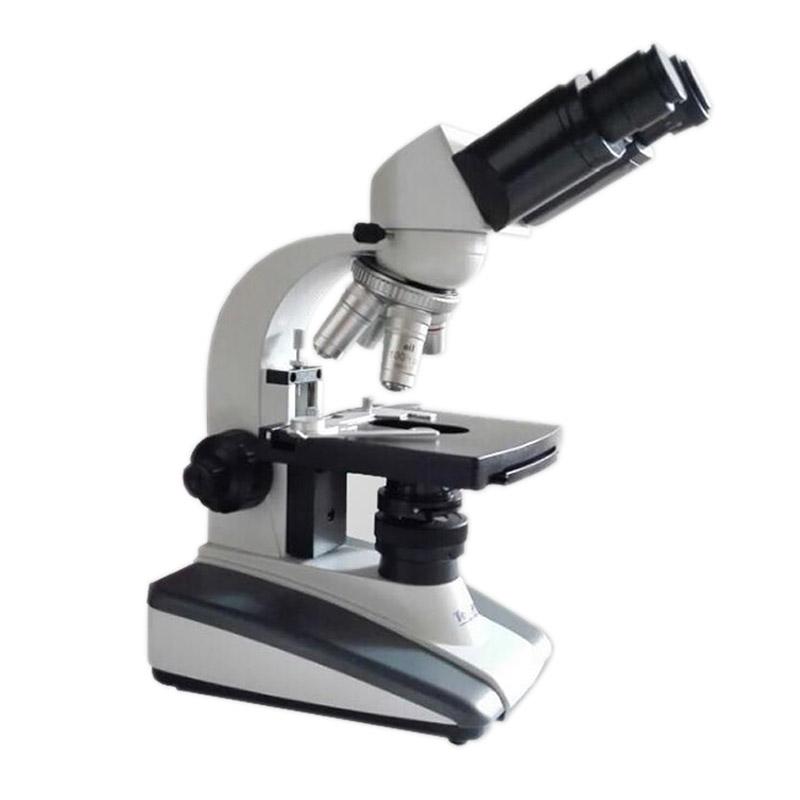

XSP-2C Binocular Biological Microscope is a laboratory instrument of TEELEN brand, which is widely used in biology, histology, chemistry and other research institutes, and can be used for teaching in school laboratories. The Microscope adopts electric Illuminant, the lighting can continuously adjust the luminance, and the eyepiece barrel can rotate 360 degrees freely.
Features
1. Illuminant, continuous adjustment of luminance
2. The eyepiece barrel can rotate 360 degrees freely
3. Equipped with color difference objective: 4X, 10X, 40X (spring), 100X (spring, oil)
4. Large field eyepieces WF10X, WF16X
5. Hinged double head, double person observation teaching head, hinged three head optional
6. Three-hole or four-hole converter
7.Double-decked active platform: 120x125mm, simple platform with table and tablet
8. Coaxial coarse fine focusing system, focusing range 20mm
9. Condenser NA = 1.25 with variable light bar Electric Illuminant, turntable light bar
10. Power supply: 220V or 110V AC input, 6V DC regulated output
Principle
The binocular biological Microscope provides illumination through the electric Illuminant. The ray of light irradiates the sample after being adjusted by the condenser and the variable light bar. After the sample image is enlarged by the objective lens, it is transmitted to the observer's eyes through the eyepiece barrel to achieve stereoscopic observation. The focusing system precisely adjusts the distance between the objective lens and the sample through the coaxial coarse fine-tuning mechanism to obtain a clear image.
Applications
Biology, histology, chemistry, etc. Research institute work, school laboratory teaching, laboratories, research institutes, institutions of higher learning
Steps
1. Connect the power supply (220V or 110V AC input)
2. Turn on the Electric Illuminant and adjust the luminance
3. Place the sample on the stage
4. Select the appropriate objective through the converter
5. Adjust the focal length using the coaxial coarse fine-tuning system
6. Adjust the viewing angle through the 360-degree rotatable eyepiece barrel
7. Conduct observation or teaching demonstrations
Notice
• Use oil immersion when using 100X oil mirrors
• Avoid collision between objective and sample when adjusting focus
• Power input needs to match 220V or 110V AC
• Optical inspection parts are kept clean
• Turn off the power after use
