Overview

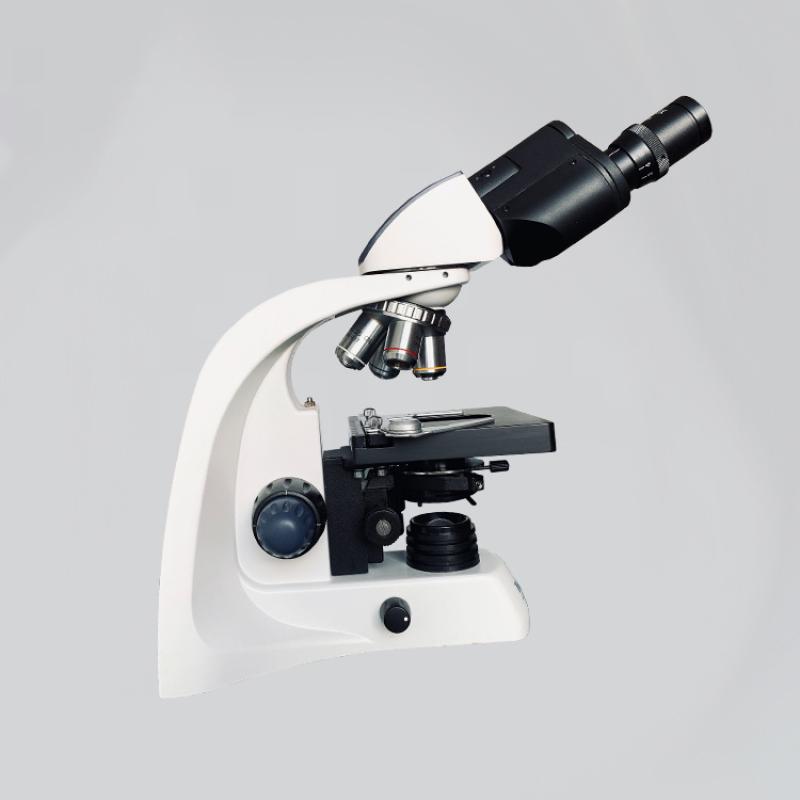

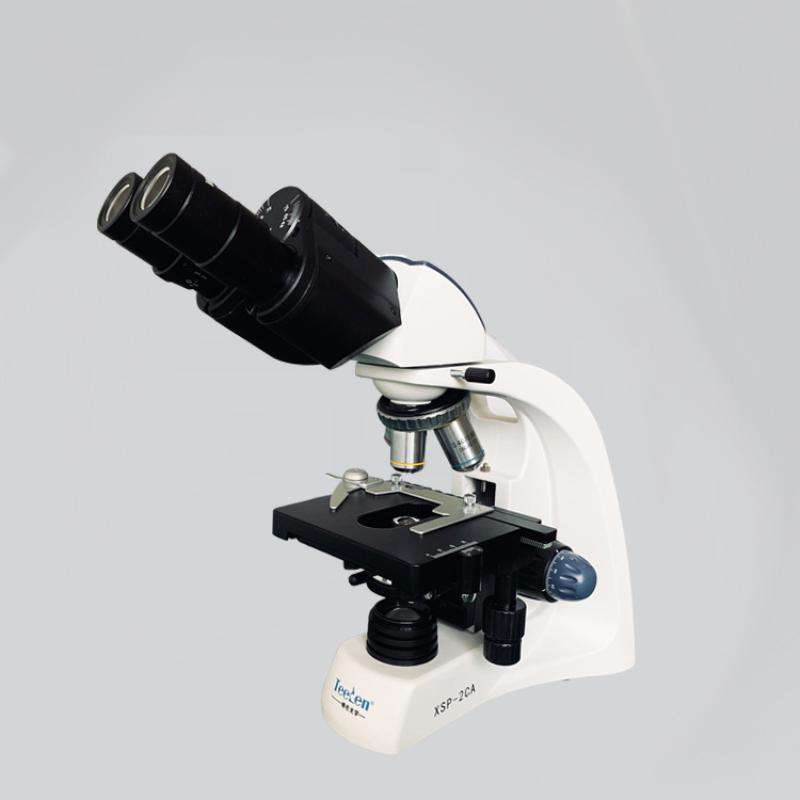

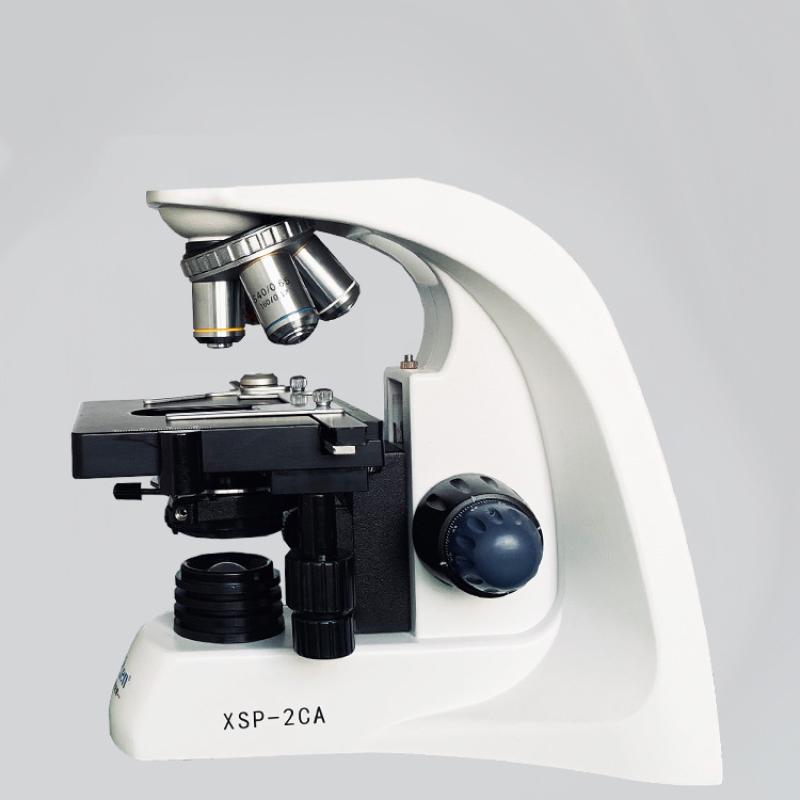

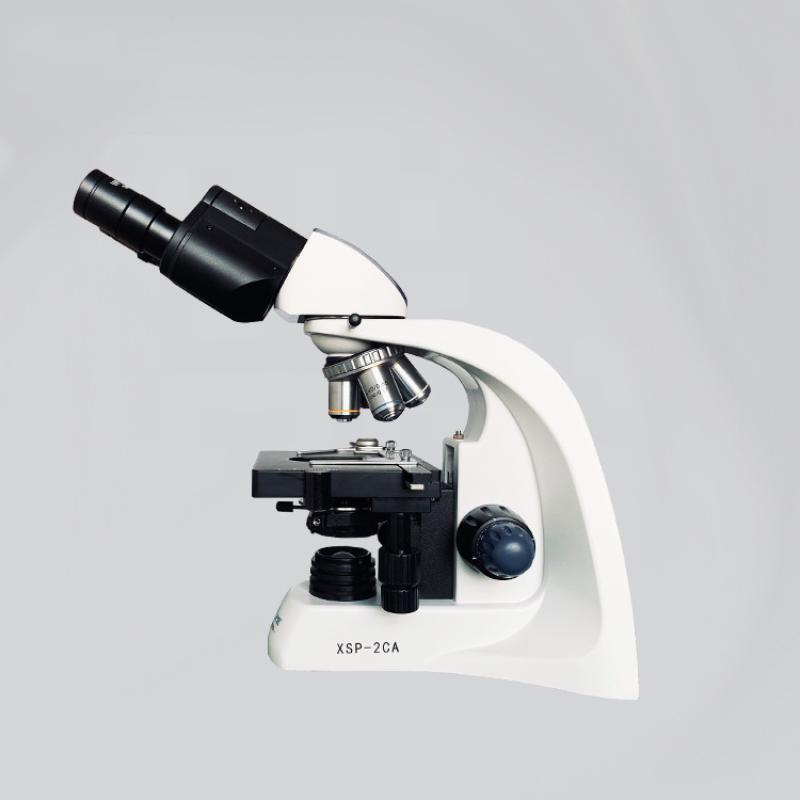

XSP-2CA binocular biological Microscope is a TEELEN brand product, which can be widely used in biology, chemistry and other research work, and can be used for teaching in school laboratories. The instrument adopts a liftable Abbe condenser lens group and an LED cold light source light path, and is equipped with a planetary coaxial coarse micro-motion focusing device and a double-decked mechanical mobile platform, which is easy and comfortable to operate.
Features
1. Adopt 195 color difference correction system, broadband coating to improve image contrast ratio
2. High eye point WF10X/18mm eyepiece, binocular vision adjustable, with card slot locking design
3.45 ° tilted hinged observation cylinder, pupil distance adjustment range 55~ 75mm, large 18mm field of view
4. The three-eyeliner barrel can be installed with a photography camera device, with a 0:100 spectral ratio
5. Two lighting methods: 3W LED or optional 6V/12W halogen lamp
6. Full Cora illumination condenser height adjustable
7. Anti-corrosion and wear-resistant mechanical moving stage, Travel 75 × 50mm
8. Anti-mildew structure design, prolonging service life
Principle
The microscope magnifies the sample image through the Optical inspection system of the objective lens and the eye lens. The Abbe condenser lens group provides uniform illumination, and the LED cold Illuminant ensures comfortable observation. The coaxial coarse fretting focusing device achieves precise focusing, and the mechanical stage facilitates sample positioning and observation.
Applications
Biology, chemistry, school laboratory
Steps
1. Power on and turn on the lighting system
2. Place the sample on the stage
3. Adjust pupil distance and diopter
Step 4 Use coarse fine-tuning to focus
5. Adjust the sample position through the mechanical moving platform
6. Select the appropriate magnification for observation
Notice
• Power frequency check before use
• Avoid contact with the sample when adjusting the focal length
• Optical inspection parts are kept clean
• Turn off the power after long-term use
• Pay attention to moisture-proof and mildew-proof when storing
