Overview

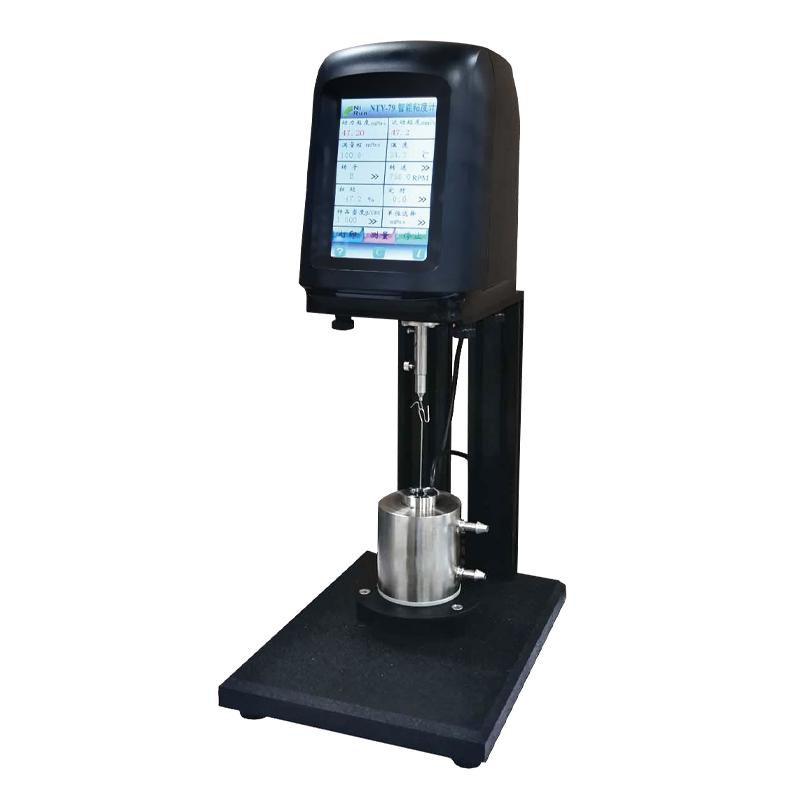

NIRUN NTV-79P programmable intelligent Rheometer is a digital viscosity measurement instrument, using 7 inch wide Touchscreen operation, support stepless speed measurement viscosity, measurement range of 1~ 75000000mPa.s, equipped with A, B, C, D four rotors.
Features
1, 7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen can directly display rheological Linear dispersion
3. Display shear rate and shear stress index
4. Anti-static shell, metal lifting rod design
5. Built-in RTD Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new bearing design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10, support external U disk data storage; single point, continuous, timing three storage options
11, password protection temperature and viscosity correction coefficient, allowing users to correct temperature and viscosity correction coefficient under the premise of reliable and accurate data
12, support stepless speed measurement viscosity, input any one speed, directly reflect the full scale of each rotor, convenient for users to select test conditions
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. A variety of user-friendly operation style interfaces are exchanged
16. Random with powerful operation wizard help
17, the viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20, AC Power Adapter 100V-240V, good anti-interference
Principle
The Rheometer uses the rotor to swirl/spin in the sample to generate shear force and measure the viscosity characteristics of the sample. The ARM chip processor is used to process data quickly, the built-in RTD temperature Probe monitors the temperature, and the Rotor speed is controlled by stepless speed change to display the shear rate and shear stress indicators in real time.
Applications
Glue, latex, solvent adhesives, polymer solutions, petroleum, paints, solvents, cosmetics, milk products, products, fruit juices
Steps
1. Select the appropriate rotor and test vessel
2, set the measurement parameters and speed
3. Start measurement and observe the change of viscosity value
4. Save data as needed
5. Clean the instrument after the measurement is completed
Notice
• Please read the Operation Manual carefully before use
• Power frequency in 100V-240V range
• Avoid exceeding the instrument range during measurement
• Regularly clean the rotor and test vessel
• Keep the temperature and viscosity correction factor password properly
