Overview

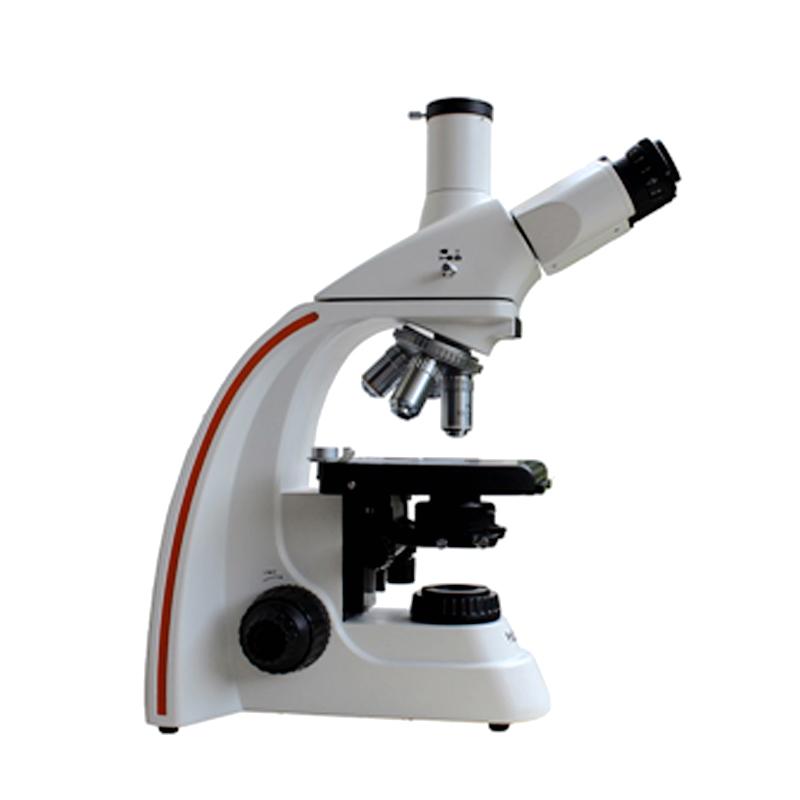

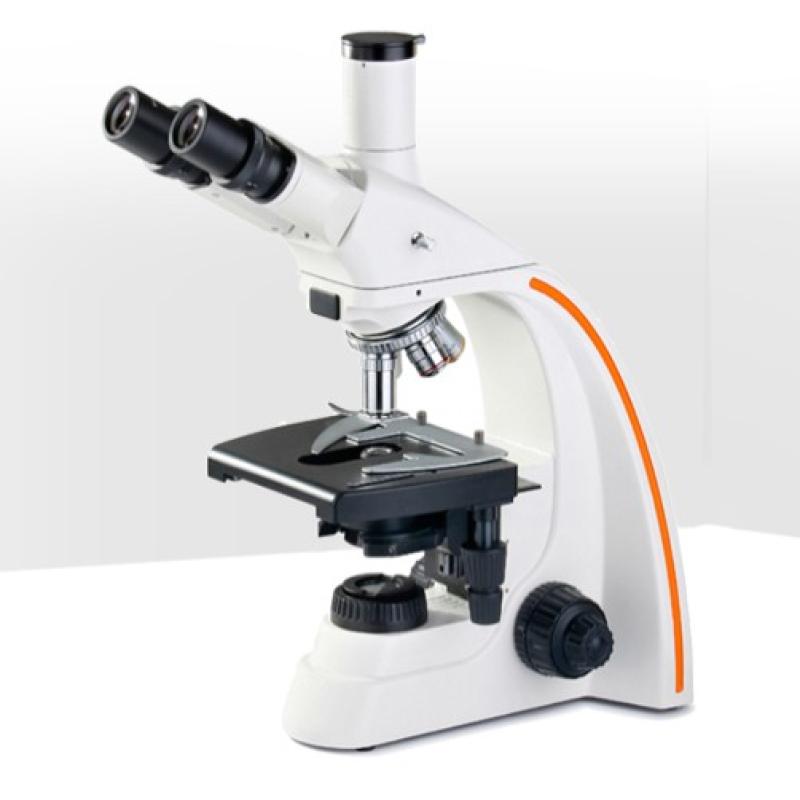

TL2800A research-grade trinocular biological Microscope is a TEELEN TL2800 series product. It is equipped with infinity flat-field color difference objective lens and large-field eyepiece. It has the characteristics of beautiful appearance, clear imagery, wide field of view and convenient operation. It can be widely used in biology, industry, agriculture and other fields. It is a satisfactory instrument for teaching, scientific research and other units.
Features
1. Optical inspection system provides excellent Optical Properties
2. Streamlined Design Concept and Soft Color Matching Make Microscope More Aesthetic
3. Satisfactory design that meets ergonomic requirements makes operation more convenient and comfortable, and the space is wider
4. Equipped with large field of view WF10X eyepieces (field number φ 22mm)
5. Adopt infinity flat-field objective
6. Coarse fretting coaxial focusing system with locking and limit device
7. High-power high-brightness white LED Illuminant, adjustable luminance
Principle
The microscope magnifies the sample through an Optical inspection system composed of an infinite flat-field color difference elimination objective and a large-field eyepiece. The sample is irradiated with a high-power high-brightness white LED Illuminant. The rays of light are focused by the Abbe condenser and then transmitted through the sample. The primary magnified image is collected by the objective lens and then transmitted to the eyepiece through the eyepiece tube, and finally a clear enlarged image is formed for observation.
Applications
Biology, industry, agriculture, teaching, research
Steps
1. Turn on the Microscope power and adjust the LED Illuminant luminance
2. Place the sample on the stage
3. Focus through coarse fretting coaxial focusing system
4. swirl/spin converter to select the appropriate objective multiple
5. Adjust the upper and lower positions of the Abbe condenser
6. Observe the sample image through the eyepiece
7. Turn off the power after use and clean the Microscope
Notice
• Pay attention to handle with care during operation to avoid collision
When adjusting the focal length, it is necessary to operate slowly to avoid damage to the sample or objective lens
• Optical inspection parts are kept clean to avoid dust contamination
• Turn off the power in time after use
• Regular maintenance to ensure stable instrument performance
