Overview

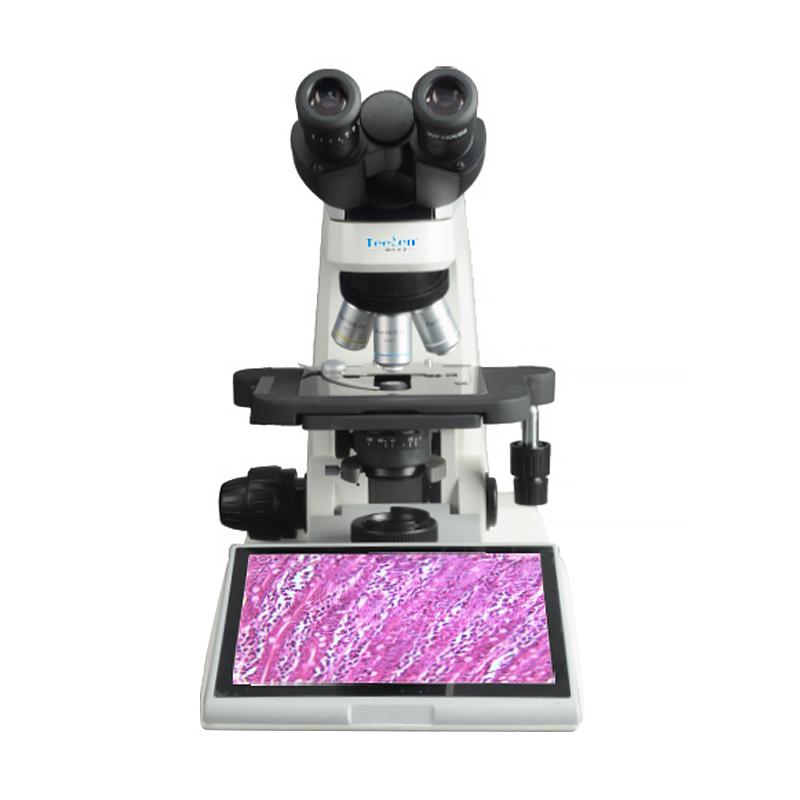

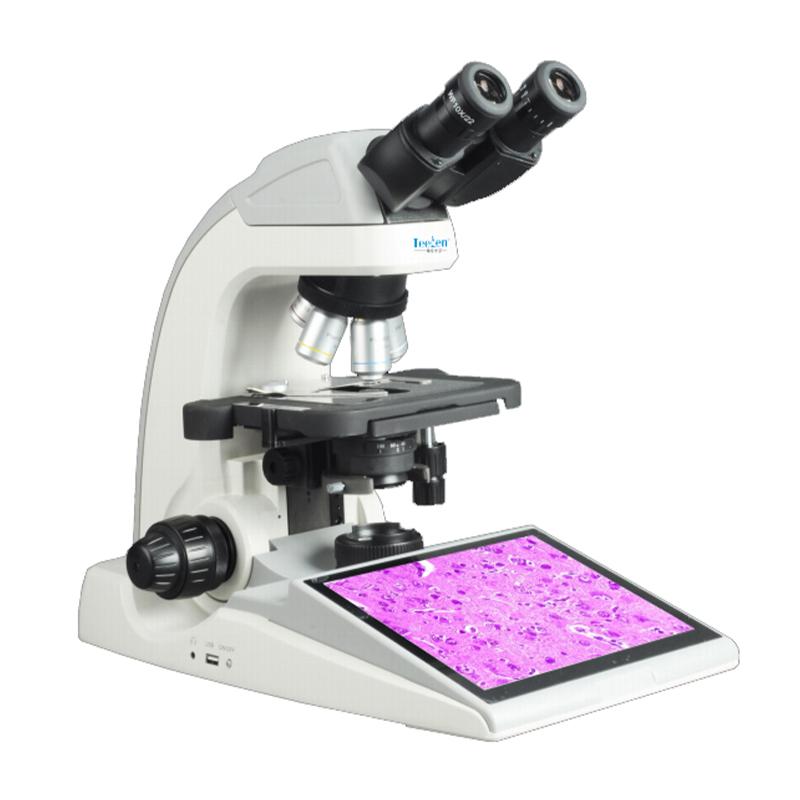

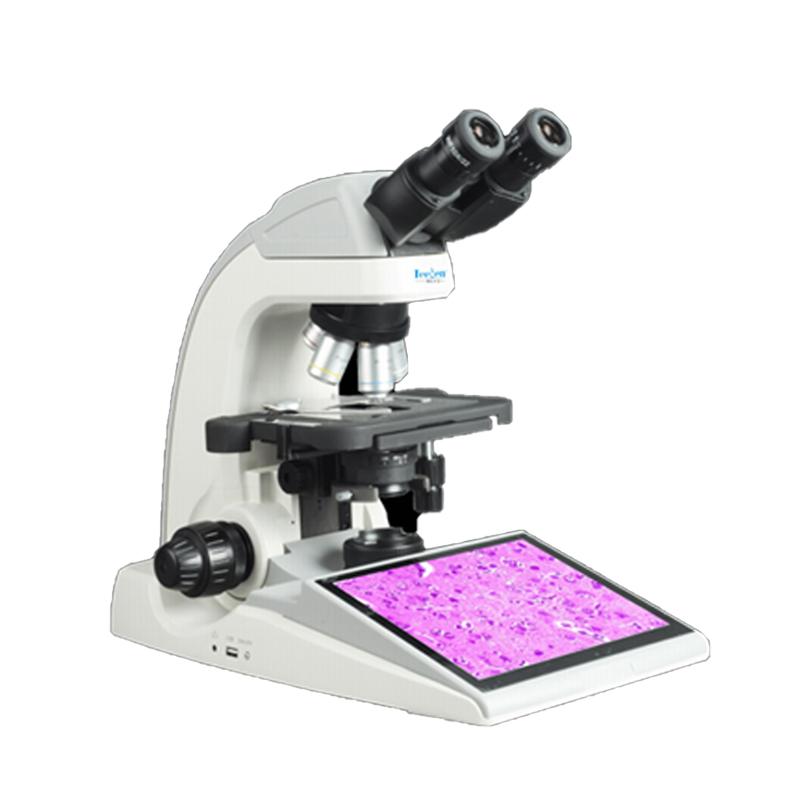

The TL5000 Integrated LCD Digital Microscope is a digital biological Microscope of the TEELEN brand. It adopts an integrated design and integrates an Optical inspection imagery system, a digital capture system and an image presentation system. The body provides a variety of interfaces including USB, SD, WIFI, LAN and HDMI for easy data transmission and display expansion, and has a storage box for easy storage of slices and accessories.
Features
1. Built-in 16 million pixel digital imagery system, integrated in the observation cylinder, high reliability, precision imagery, dustproof and anti-disassembly damage.
2. Integrated hinged binocular digital observation cylinder, can be tilted 30 °, 360 ° swirl/spin, pupil distance 48~ 75mm, eye point height adjustable 42mm.
3. Embedded 9.7 inch IPS retina screen, resolution 2048x1536, running WIN10 operating system.
4. Provide a variety of interfaces: two USB ports, SD socket, built-in WIFI, Gigabit LAN interface, HDMI interface.
5. CF Infinity Optical inspection system, effectively eliminate color difference and spherical difference, good interchangeability.
6. Anti-mildew structure design, using anti-mildew coating and anti-mildew block to inhibit mold growth.
7. Mechanical moving stage, synchronous toothed belt drive, moving range 78x54mm, vernier reading 0.1mm.
8. Coaxial coarse fine-tuning system, coarse adjustment range 22mm, fine-tuning 0.2mm per revolution, minimum grid value 2μm.
Principle
The TL5000 Microscope uses a CF Infinity Optical inspection system to form an enlarged image through the combination of objective lens and eyepiece. The built-in digital camera captures the image and transmits it to the embedded display screen. The image processing system allows to adjust parameters such as color, luminance, contrast ratio, and supports manual or automatic exposure and white equilibrating. Data transmission and external device connection are realized through USB, WIFI or LAN interfaces.
Applications
Biological observation, medical research, educational demonstration, industrial testing
Steps
1. Turn on the power and start the Microscope system.
2. Place the slice on the stage and fix it with the slice clip.
3. Adjust the focus until the image is clear through the coarse fine-focus handwheel.
4. Select the objective lens multiple (4X, 10X, 40X, or 100X) for observation.
5. Use the built-in screen or external display device to view the image.
6. Adjust color, luminance, contrast ratio and other parameters through image processing function.
7. Use the measurement function for length, angle and other measurements.
8. Export image data via USB, SD or WiFi interface.
Notice
• Avoid disassembling the camera frequently to prevent damage to the performance of the device.
• Use anti-mildew design in high heat and humidity environment, and check anti-mildew parts regularly.
• Pay attention to the coarse fine-tuning range when focusing to avoid damage to the mechanism due to excessive force.
• When using the oil lens, ensure that the objective lens and section are clean to prevent contamination.
When connecting external devices, ensure that the interface is compatible and stable.
