Overview

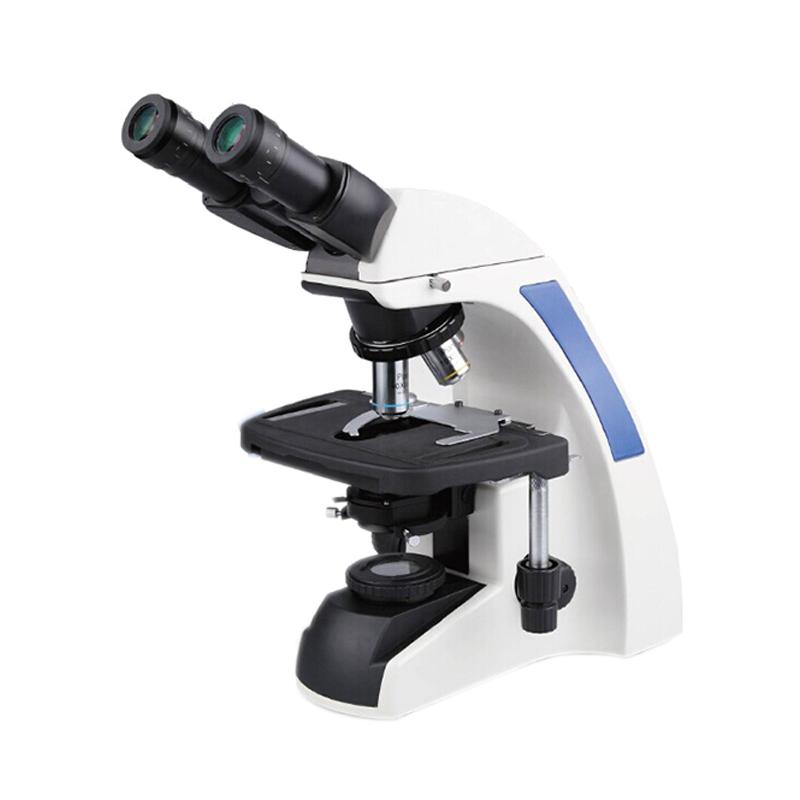

TL3200B built-in digital biological Microscope is a TEELEN TL3200 series product. It is equipped with infinity flat-field color difference objective lens and large-field eyepiece. It has the characteristics of beautiful appearance, clear imagery, wide field of view and convenient operation. On the basis of the original model, a built-in digital camera is added, which is convenient for installation and use. It can be used for experimental photography, geometric measurement and other functions. It is widely used in biology, industry, agriculture and other fields. It is a satisfactory instrument for teaching, scientific research and other units.
Features
1. Excellent Infinity Optical inspection system provides excellent Optical Properties
2. Streamlined Design Concept and Soft Color Matching Make Microscope More Aesthetic
3. Satisfactory design that meets ergonomic requirements makes operation more convenient and comfortable, and the space is wider
4. High Power 3W LED Cold Illuminant Lighting
5. Built-in digital camera, easy to install and use, support experimental photography and geometric measurement functions
Principle
The Microscope uses an infinity Optical inspection system that allows sample magnification through a combination of objective and ocular lenses. A built-in digital camera captures images for photography and measurement analysis. LED Cold Illuminants provide uniform illumination to ensure imagery mass.
Applications
Biology, industry, agriculture, teaching, research
Steps
1. Install Microscope and Connect Power
2. Adjust the pupil distance (48mm-75mm) and the viewing head angle (30 degrees tilt)
3. Select the appropriate eyepiece (WF10X or WF16X) and objective (4X, 10X, 40X, 100X)
4. Place the sample on the stage
5. Use coaxial coarse fine-focusing mechanism for focusing
6. Turn on the LED lighting system
7. Use the built-in digital camera to take pictures or measurements
Notice
• Dripping oil is required when using 100X objectives
• When focusing, pay attention to the fine-tuning grid value of 0.001mm.
• The moving range of the stage is 75mm × 55mm
• Keep the lens clean and avoid scratches
• Turn off the power in time after use
