Overview

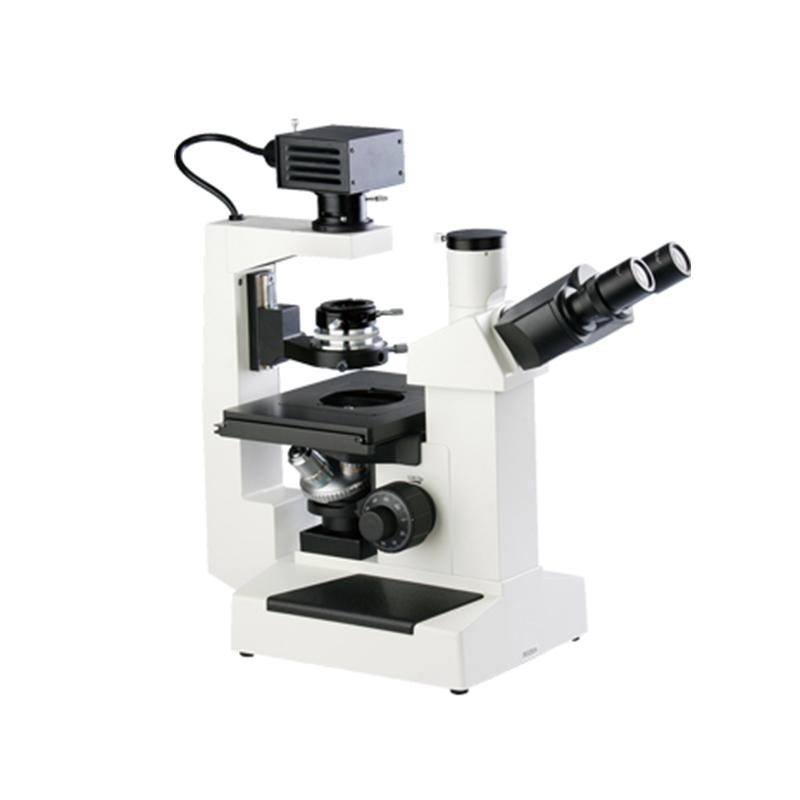

The DXS-1 inverted biological microscope is a product of the TEELEN brand. It is equipped with a long working distance flat-field color difference objective, a large-field eyepiece and an adjustable condenser. The product has a compact structure and a reasonable design of the operation part, so that the observer can feel relaxed and comfortable during the operation of the instrument. The Microscope is suitable for microscopic observation of cellular tissues, transparent liquid tissues, and dynamic microscopic observation of foster tissues in culture dishes.
Features
1. Configure long working distance flat field color difference objective
2. Large field of view eyepiece design
3. Adjustable condenser
4. Compact structure, reasonable design of operating parts
5. Triple eyepiece tube, 30 ° tilt
6. Coarse fretting coaxial focusing system, with locking and limit device, fretting grid value 2μm
7. Four-hole converter (internal ball positioning)
8. Double-decked mechanical moving stage, moving range 30mm vertically and 75mm horizontally
9. Plug-in phase contrast condenser, working distance 30mm
10.6V20W halogen lighting system, adjustable luminance
11. Equipped with Frosted Glass, Blue and Green Color Filters
Principle
Optical inspection and magnification of samples is performed by the inverted biological Microscope through the configuration of long working distance flat-field color difference elimination objective lens and large field eyepiece, combined with adjustable condenser lens. The lighting system uses a 6V20W halogen lamp to provide Illuminant, adjustable luminance, and color filters are used to optimize the imagery effect. The focusing system enables precise focusing, and the stage and culture dish pallet are adapted to different sample containers for dynamic observation of foster tissue.
Applications
Research institutes, colleges and universities, agriculture, animal husbandry and dairy industry
Steps
1. Turn on the lighting system and adjust the luminance
2. Place the sample on the stage or culture dish tray
3. Initial focusing using coarse fretting coaxial focusing system
4. Precise adjustment by fretting focusing, the fretting grid value is 2μm
5. Switch the objective using a four-hole converter
6. Insert color filters as needed to optimize the observation effect
7. Turn off the power after the observation is completed
Notice
- Pay attention to the locking and limiting devices of the focusing system during operation to avoid excessive adjustment
Make sure the stage moves within 30mm in the longitudinal and 75mm in the transverse direction
- When using the culture dish pallet, confirm that the inner groove size fits the sample container
- The lighting system is a 6V20W halogen lamp, pay attention to safety when using it to avoid burns
- Optical inspection parts regularly to keep imagery clear
When the instrument is not in use, the power should be turned off to extend its lifespan
