Overview

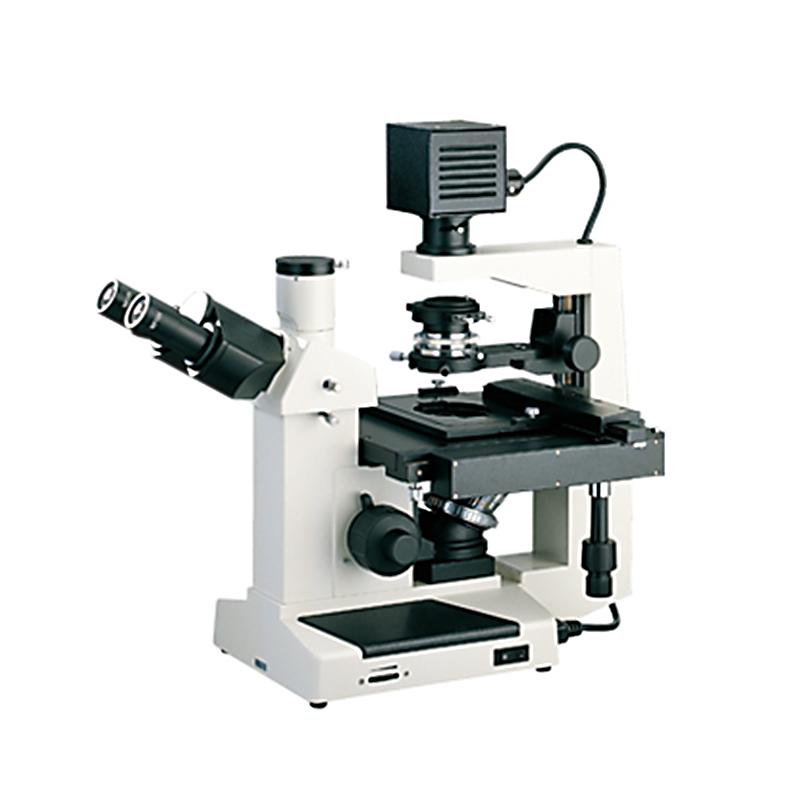

The DXS-5 InvertedMicroscope is an inverted biological Microscope launched by TEELEN. It uses an excellent infinity Optical inspection system to provide good Optical Properties. The streamlined design concept combines a compact and stable high-rigidity body to meet the vibration protection requirements of microscopic operation. The ultra-long working distance condenser system supports the observation of high-culture dishes or cylindrical flasks without contamination foster cells. The lighting system has good heat dissipation, and the ergonomic design makes the operation convenient and comfortable.
Features
1. Optical inspection system to provide excellent Optical Properties
2. Streamlined design, compact and stable high rigidity main body, good anti-vibration performance
3. Super long working distance concentrating system, working distance 70mm
4. Condenser with insert plate phase contrast device, which can realize phase contrast microscopic observation
5.9W LED lighting system, adjustable luminance
6. Five-hole converter, coarse micro-motion coaxial focusing system
7. Large moving range of the stage (horizontal 112mm x vertical 79mm)
8. Equipped with a variety of culture dish pallets, suitable for different sizes of culture dishes
9. Binocular pupil distance adjustment range 48-75mm, eye point height 400mm
Principle
The DXS-5 InvertedMicroscope uses an infinity Optical inspection system that enables microscopic observation through a combination of objective and eyepiece. Its inverted design allows the objective to be located below the stage for easy observation of cell tissue in the culture dish. The phase contrast system enables phase contrast observation of transparent samples through a pull-plate phase contrast condenser and an adjustable phase contrast ring. The illumination system uses LED Illuminant to penetrate color chips to adjust the characteristics of light rays.
Applications
Research institutes, colleges and universities, agriculture, animal husbandry and dairy industry
Steps
1. Turn on the instrument power and adjust the LED lighting luminance
2. Place the sample on the stage or culture dish tray
3. Select the appropriate objective through the five-hole converter
4. Use coarse fretting coaxial focusing system for focusing
5. For phase contrast observation, insert the phase contrast device
6. Adjust the binocular pupil distance to a comfortable position
7. Adjust the sample observation position by moving the ruler
8. Turn off the power after observation
Notice
• Please read the instructions carefully before use
• Be careful to avoid contact between the objective lens and the sample when focusing
• The moving ruler is removable, so be careful when operating.
• Optical inspection parts are kept clean to avoid contamination
• Use matching adjustment tools for maintenance
The instrument should be placed on a stable workbench
• Avoid severe vibration affecting the observation effect
