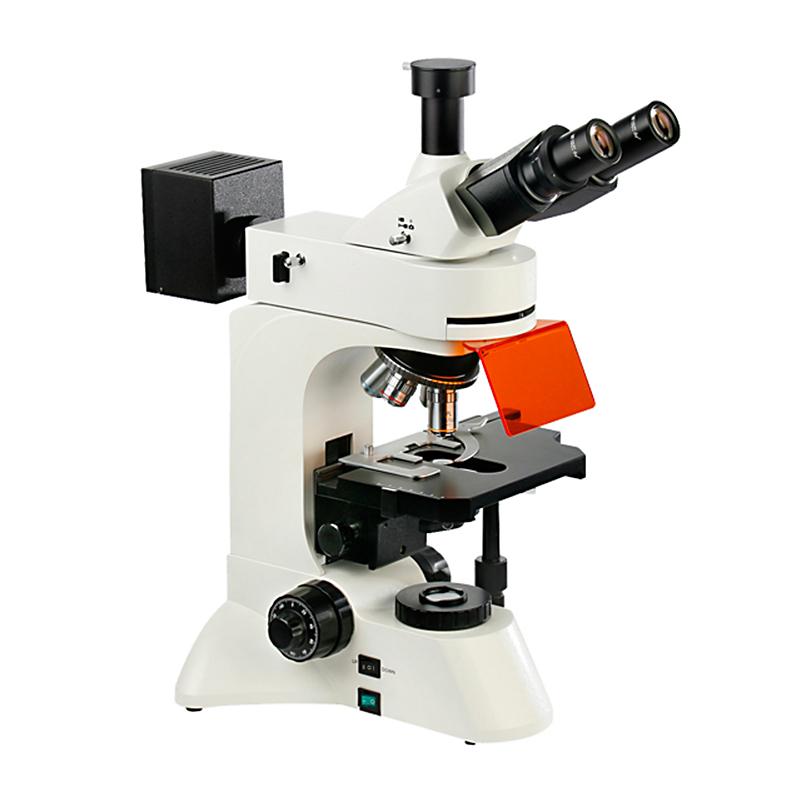

TEELEN TL3201-LED Fluorescence Microscope Infinity Flat Field Color difference Objective Lens

Name: TEELEN TL3201-LED Fluorescence Microscope Infinity Flat Field Color difference Objective Lens
Brand: Teelen
SKU: NB025480

Please contact customer service

Optical inspection system and Modular design, equipped with flat-field color difference elimination fluorescent objective, fretting grid value of 2 μ m, support multi-band fluorescent filter group, comfortable operation.

Model

TL3201-LED

Get Quote

Category : Microscope

Brand : Teelen

SKU : NB025480

Service :The delivery and service By NBCLab.Com

Overview

TEELEN TL3201-LED Fluorescence Microscope is suitable for fluorescence microscopy and transmission bright field observation. Optical inspection system has clear, bright imagery and wide field of view by using infinite flat-field color difference-cancelling fluorescent objective lens and large field of view eyepiece without magnification color difference. The body design that meets ergonomic requirements makes the operation more comfortable and easy. It is a satisfactory instrument for scientific research work and can be used by scientific research, universities and other departments.

Features

1. Optical inspection system and Modular function design. 2. Equipped with high-mass infinite flat-field color difference-eliminating fluorescent objective, the imagery is clearer and brighter. 3. Wide-angle flat-field eyepieces: the diameter of the field of view is 22mm. 4. Coarse fretting coaxial focusing mechanism, with locking and limiting device, fretting grid value: 2μm. 5. Transmission lighting system: built-in field of view light bar, 6V30W halogen lamp lighting, heat sink, adjustable luminance. 6. Drop illumination system: 100W/DC high voltage mercury lamp, power box 220V/110V optional. 7. The three-eyeliner barrel can freely switch between visual observation and microphotography, and can be 100% transparent during photography, suitable for low-light microscopic image shooting.

Principle

The Fluorescence Microscope is based on the Infinity Optical inspection system, which provides uniform illumination through the transmission illumination system, the epiphany illumination system uses a high voltage mercury lamp to excite fluorescence, the fluorescence filter group selects a specific excitation light band, the objective lens and eyepiece are combined to achieve high-definition imagery, and the focusing system precisely controls the focal length.

Applications

Scientific research, universities

eyepiece
Large field of view WF10X (Φ 22mm)
Infinity flat-field color difference objective
PL 4X/0.10; PL 10X/0.25; PLF L40X/0.85 (spring) (no magnification and color difference); PL 100X/1.25 (spring, oil)
Eyepiece tube
Triple eyepiece, 30 ° tilt
C interface
1X C-Type CCD dedicated interface
epifluorescence illumination system
3W high-brightness monochrome LED, which can be combined in monochrome or two-color.
Fluorescence filter set B
Excitation optical band: 520~ 530nm
Fluorescence filter set G
Excitation optical band: 460~ 470nm
Fluorescence filter set UV
Excitation optical band 360nm~ 370nm
Fluorescence filter set V
Excitation optical band 390nm~ 400nm
Focusing mechanism
Coarse fretting coaxial focusing, fretting grid value: 2μm, with locking and limit device
converter
Five holes (inward ball positioning)
stage
Double-decked mechanical mobile (Size: 210mmX140mm, moving Range: 75mmX50mm)
Transmission lighting system
Abbe condenser NA.1.25 can be lifted up and down; Blue filter and frosted Glass; collector suitable for LED lighting (built-in field of view light bar); 3W high-brightness white LED, luminance adjustable

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
