Overview

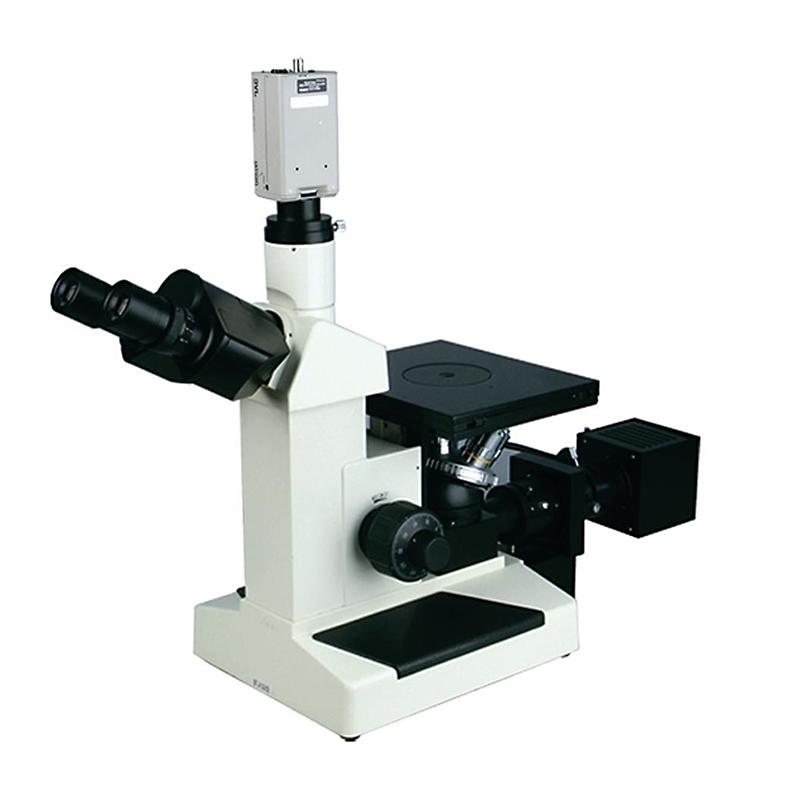

4XC series Metallurgical Microscopy is a Metallurgical Microscopy product of TEELEN brand, which is mainly used to identify and analyze the internal structure and organization of metals. It is an important tool for metallographic research in metal physics. This instrument is equipped with a photographic device to take integer photos required for metallographic diagrams, which is suitable for factories, mines, universities and scientific research departments.
Features
1. Equipped with large field of view eyepiece and long distance flat field color difference objective (no coverslip), the field of view is large and clear
2. Coarse fretting coaxial focusing mechanism, coarse elastic adjustable, with locking and limit device, fretting grid value: 2μm
3.6V20W halogen lamp, adjustable luminance
4. When equipped with a rotating shaft type trieyepiece, you can freely switch between normal observation and polarized observation, and perform 100% light-transmitting photography
Principle
Metallurgical Microscopy magnifies the surface structure of metal samples through an Optical inspection system, using a combination of eyepiece and objective lens to achieve high magnification. The equipped camera device can record metallographic images, and the metallographic analysis system can analyze and determine the tissue.
Applications
Factories and mines, universities, scientific research departments
Steps
1. Prepare the metal sample and place it on the stage
2. Adjust the focal length through the coarse micro-motion coaxial focusing mechanism
3. Select the appropriate objective lens multiple for observation
4. Switch between normal observation and polarized observation modes as needed
5. Use a photographic device to take metallographic pictures
6. Analyze and determine by metallographic analysis system
Notice
• Oil mirror technology is required when using 100X objectives
• Pay attention to rough and elastic adjustment when focusing
• The halogen luminance can be adjusted as needed
Make sure there are enough rays of light when shooting
• Optical inspection parts are cleaned regularly
