Overview

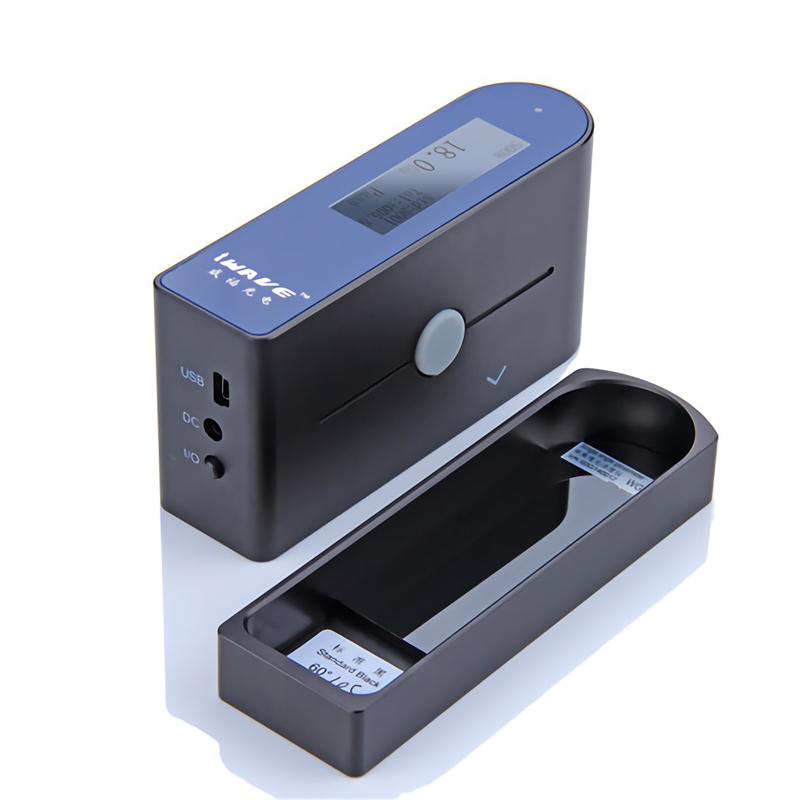

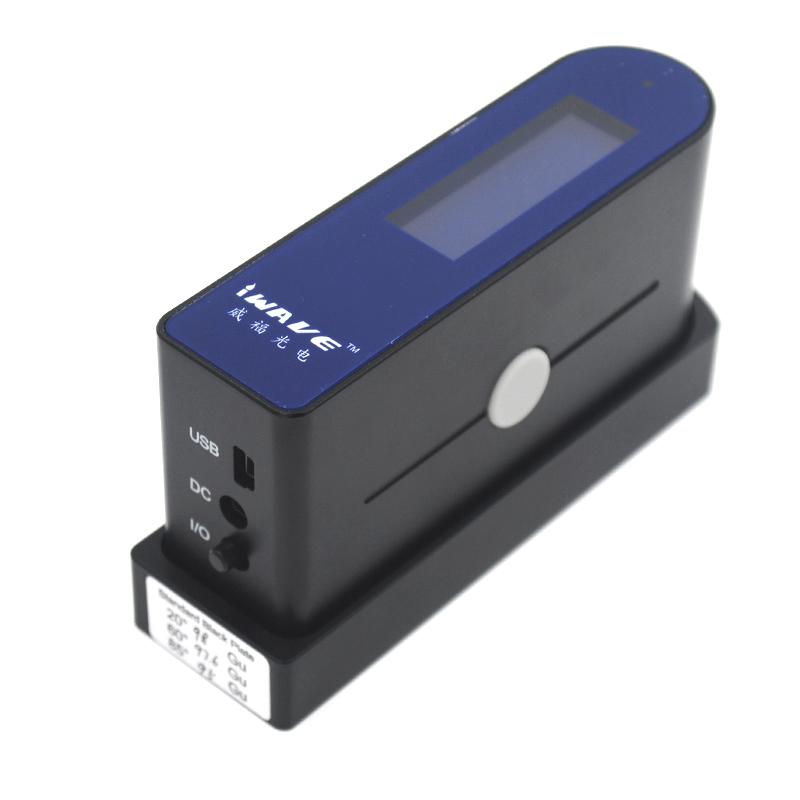

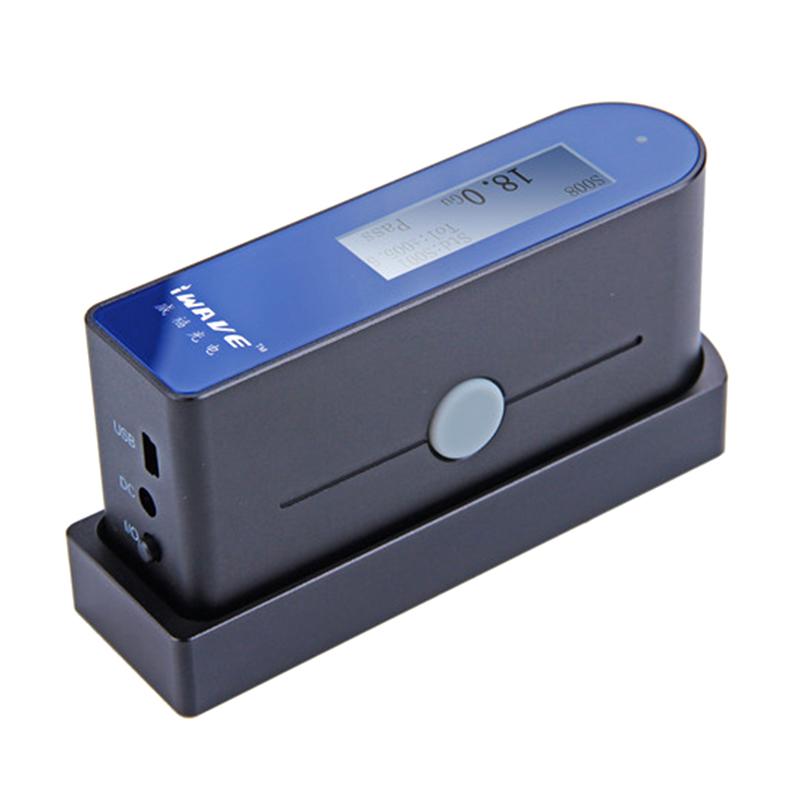

IWAVE WG60 precision glossmeter adopts 60 degree projection angle, with automatic measurement, manual measurement, single measurement, average measurement and other Measurement modes, supports cross setting, provides flexible combination Measurement mode.
Features
1. Exquisite and lightweight shape, easy to carry and use
2. Automatic calibration, High Stability
3. Fully intelligent design, single-button operation, all operations can be completed with one hand
4. Long life Illuminant, no need to replace
5. LCD digital display, clear and clear
6. Built-in large-capacity lithium battery, can be charged repeatedly, fully charged can be continuously measured for more than 12 hours
7. Rich functions, accurate measurement, Repeatability, high cost performance
Principle
The IWAVE WG60 glossmeter projects rays of light at a 60 degree angle to the surface under test, measuring the intensity of the reflected light to calculate the Glossiness value for accurate surface Gloss assessment.
Applications
Paints, inks, lacquers, Coatings, Woodwork, Marble, Granite, Vitrified Polished Tiles, Ceramic Tiles, Plastics, Paper, Miscellaneous Non-metallic Materials
Standards
ISO-2813、ASTM-C584、ASTM-D523、DIN-67530、ASTM-D2457、JND-P60、GB-9754、GB-9966、GB-8807
Steps
1. Automatic calibration
2. Select Measurement mode (Auto, Manual, Single or Average)
3. Align the instrument to the measured surface for measurement
4. Read the LCD display Glossiness value
5. Can store data or connect printer output results
Notice
• Please use the original Power Adapter and battery in case the instrument malfunctions or burns out
• Avoid use in flammable and explosive gas, dust, smoke environment to prevent accidents
• Avoid use in strong magnetic fields, violent vibrations, dust, smoke environments to prevent abnormal data and performance failures
• The instrument is a precision equipment, please do not disassemble and assemble it without permission, otherwise it may be damaged and cannot be repaired.
