Overview

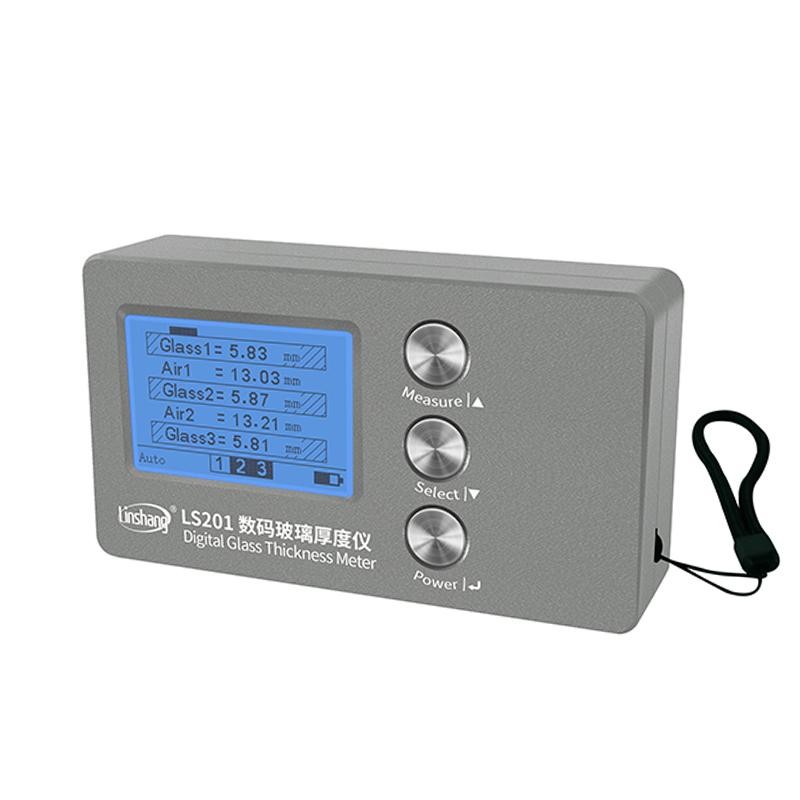

The LS201 digital Glass Thickness gauge uses the principle of Optical inspection reflection to measure Glass Film thickness on one side of Glass, especially for measurement occasions where general measurement tools such as scale or vernier calliper cannot or are not easy to operate, such as architectural laminated Glass, insulating glass window Film thickness measurement. For the measurement of air laminated Glass, the film thickness of multi-layer Glass and intermediate air layer can also be obtained at the same time. The instrument adopts CCD detection, liquid crystal display, simple operation, fast and reliable measurement.
Features
1. The display methods in Chinese and English can be switched, and the use is borderless.
2. Glass Film thickness nondestructive detection, laser reflection principle, Glass unilateral surface measurement Glass Film thickness.
3. Fast measurement, accuracy up to 0.1mm.
4. It can measure various Glass materials such as Three Glass and Two Cavity Glass.
5. Automatic measurement and manual measurement mode, can accurately test a variety of different specifications of Hollow Glass Film thickness.
6. Manual mode measurement, set the corresponding parameters according to the actual type of Glass, you can measure accurate data.
Principle
LS201 Digital Glass Thickness gauge uses the principle of Optical inspection reflection to carry out measurement on the single surface of Glass through laser reflection, and uses CCD detection technology implementation Film thickness detection.
Applications
Film thickness measurement of architectural laminated Glass and insulating glass windows
Steps

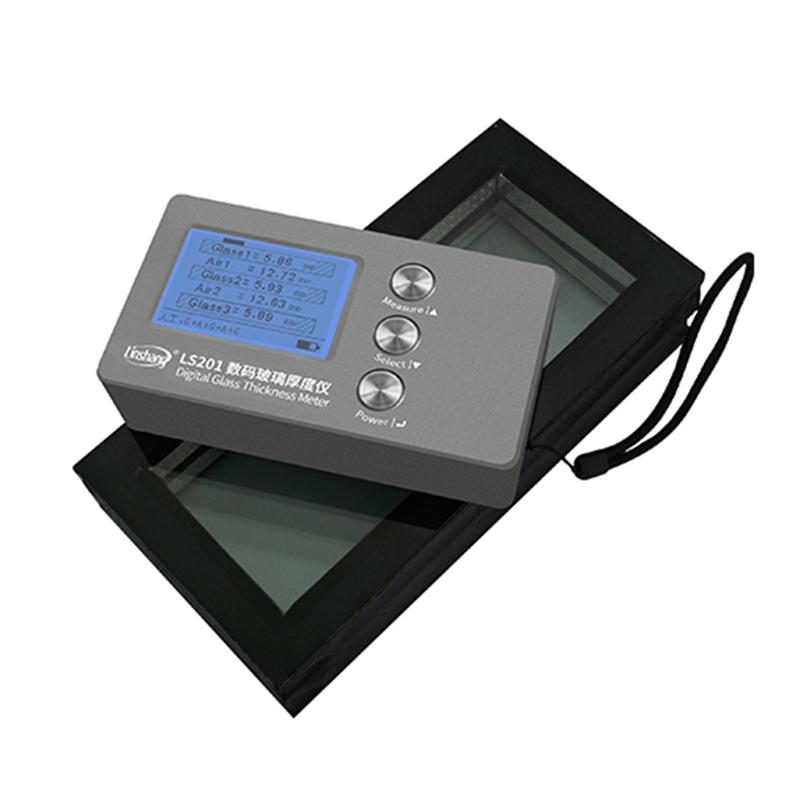

1. Automatic measurement mode: directly align with Glass for measurement.
2. Manual measurement mode: Measurement is carried out after setting the corresponding parameters according to the actual type of Glass.
Notice
• Keep the tested Glass surface clean, which is conducive to improving the measurement accuracy.
• Try to avoid testing multiple pieces of Glass overlapping together, which may cause errors in test results.
• Keep the detector on the back of the instrument clean, and wipe it with a soft cloth or cotton swab stained with alcohol, and do not wipe it with a cloth stained with Miscellaneous organic solvents.
• In order to improve the measurement accuracy, try to avoid the back of the instrument facing the sun test.
• Avoid facing the laser directly with your eyes.
• Avoid contact with corrosive materials and stay away from high temperature and high humidity environment.

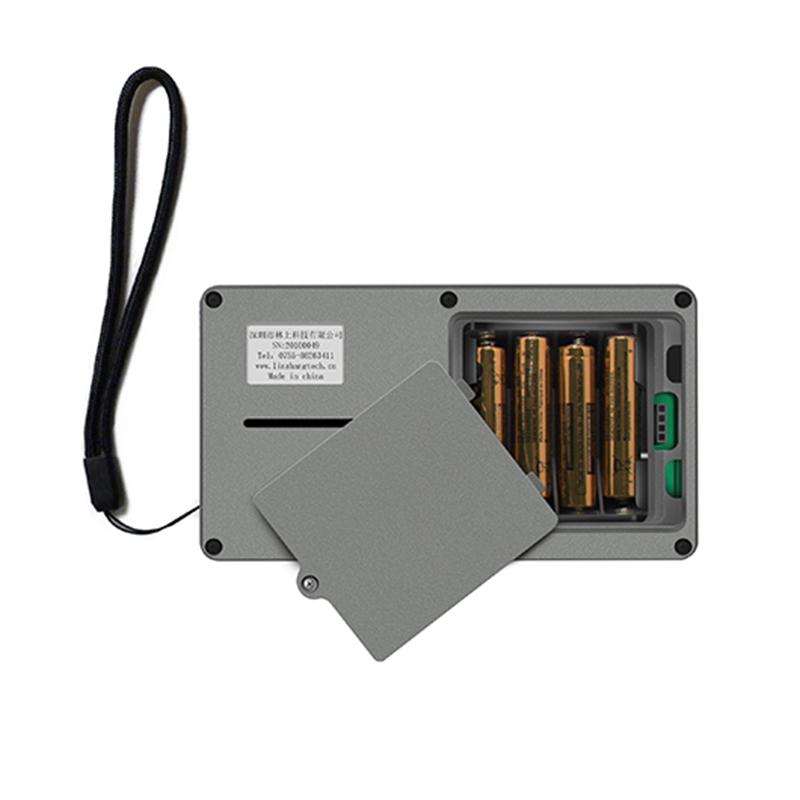

• When the battery symbol is empty and flashing, please replace the battery in time.
