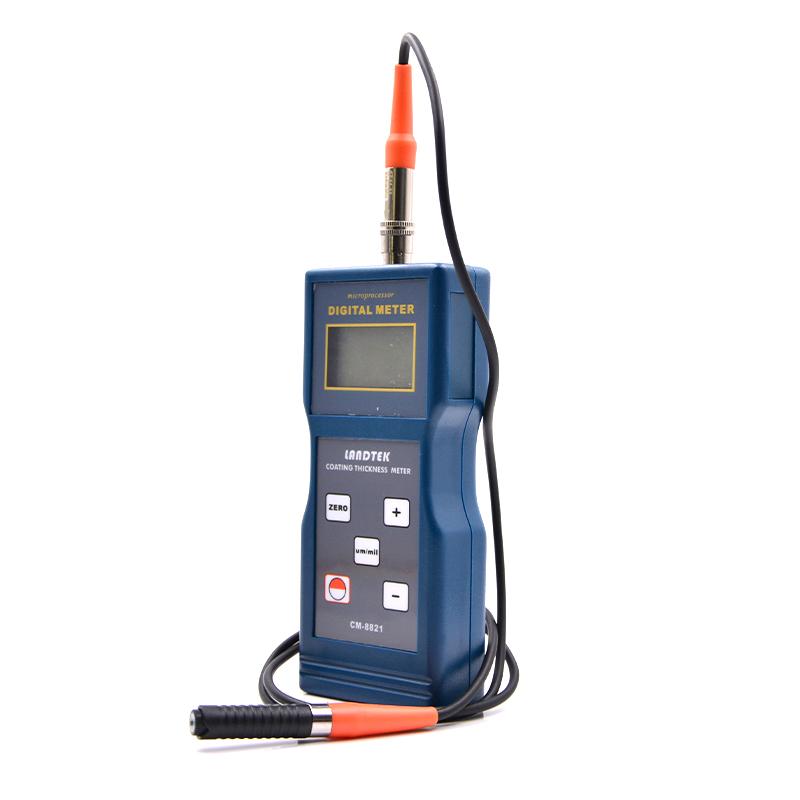

LANDTEK CM8821 Coating thickness Gauge magnetic thickness Gauge 0~ 1000μm Measurement range

Name: LANDTEK CM8821 Coating thickness Gauge magnetic thickness Gauge 0~ 1000μm Measurement range
Brand: LANDTEK
SKU: NB000265
Price: 240.0 USD
Availability: InStock

$ 240.00Ex works

Adopt magnetic Induction principle measurement, thickness range 0~ 1000μm, error +/- 3%, with low voltage prompt function, support split Probe and customized range, adapt to different curvature matrix measurement needs.

Model

CM8821

Get Quote

Category : Coating Thickness Gauge

Brand : LANDTEK

SKU : NB000265

Service :The delivery and service By NBCLab.Com

Overview

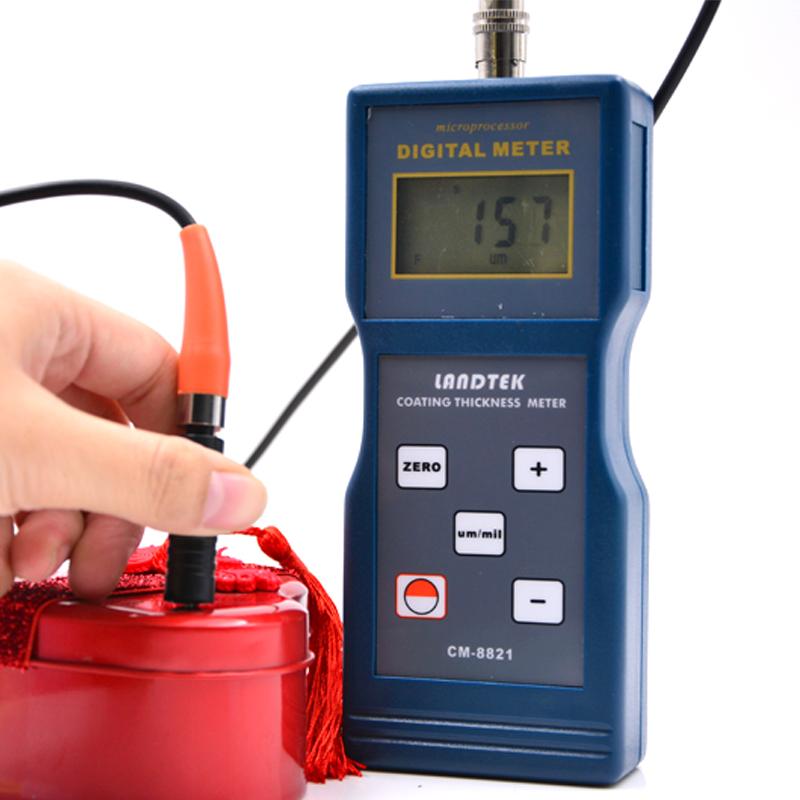

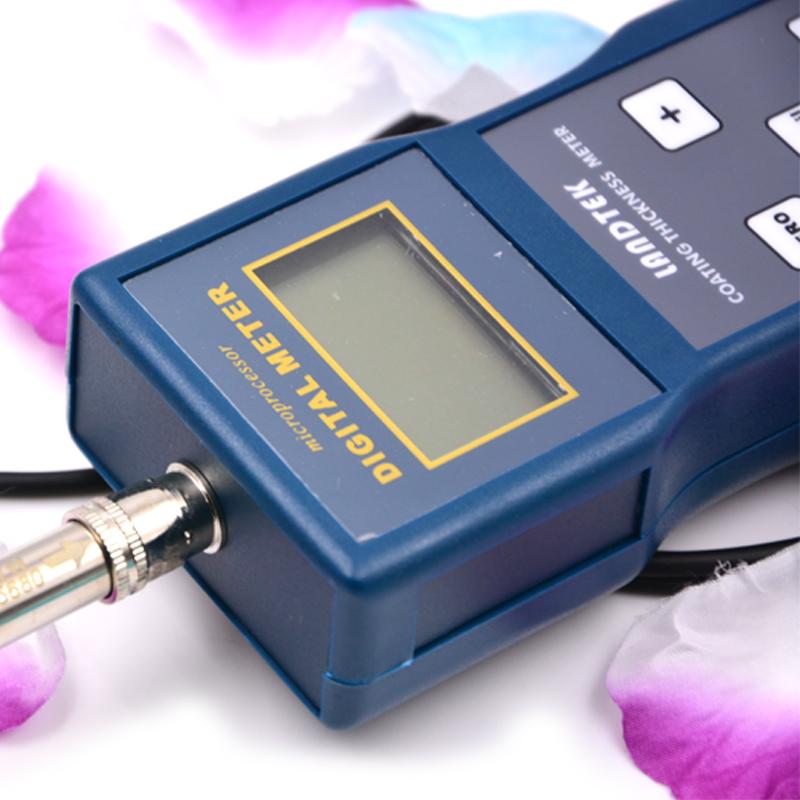

The LANDTEK CM8821 Coating thickness gauge is an economical magnetic thickness gauge. It uses the magnetic principle to measure the nonmagnetic Coating thickness on magnetic metal substrates. Measurement range is 0~ 1000 microns. The instrument displays measurement data through the LCD screen and has a low voltage indication function, which can prompt the user to replace the battery in time to avoid the low battery affecting the life of the instrument.

Features

1. Using magnetic Induction principle measurement 2. Measurement range 0~ 1000μm 3. LCD display data 4. Low voltage prompt function 5. The resolution can reach 0.1μm | 1μm 6.Lightweight, only 210g (without battery) 7. Support μm/mils unit display 8. Optional Customized Range Sensor

Principle

CM8821 Coating thickness gauge adopts the principle of magnetic Induction to measure the thickness of non-ferrous magnetic coatings and platings on ferromagnetic metal substrates such as steel and iron through magnetic Sensor.

Applications

Thickness measurement of non-ferrous magnetic coatings such as lacquer, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxidation layer, etc

Measurement principle
F magnetic Induction
Measurement Range
0~ 1000μm/0~ 40mil (standard Range)
resolution
0.1μm/1μm
minimum radius of curvature
F: convex 1.5mm/concave 25mm
minimum measurement surface
6mm
thinnest matrix
0.3mm
margin of error
+/- 1~ 3% n or +/- 2.5um
Metric/Imperial
optional
Battery Voltage prompt
Low Voltage prompt
Operating Conditions
Temperature: 0~ 40℃, Humidity: 10~ 90% RH
power supply

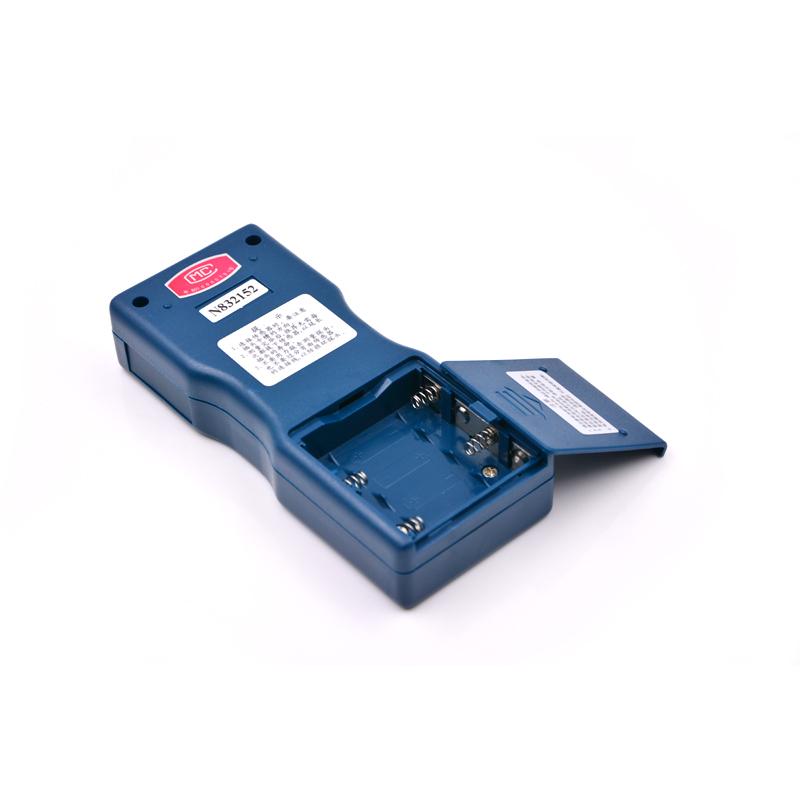

4 AA batteries
Dimension
161x69x32mm
weight
210G (without battery)
Optional Accessories
Customizable Range (Large Range Sensor): 0~ 200um to 18000um

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
