Overview

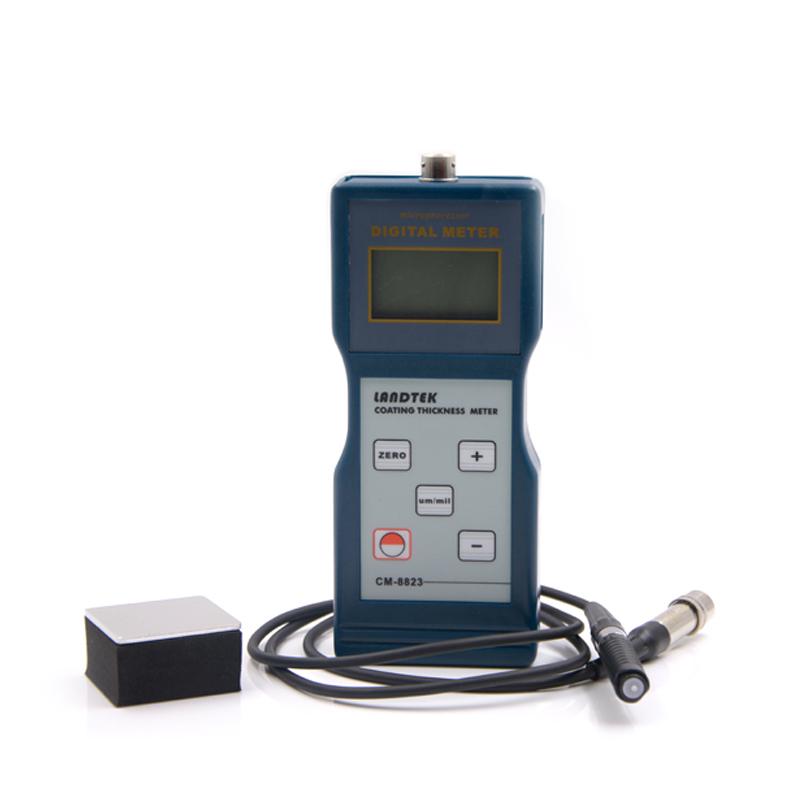

LANDTEK CM8823 film thickness gauge is a Portable structure design, with N-type Probe eddy Current Coating thickness gauge, LCD display measurement thickness data, simple and intuitive. CM8823 Coating thickness gauge uses eddy Current thickness measurement principle for Measurement range of 0~ 1000 micron thickness of coatings, the minimum surface can be measured is convex 3mm, the minimum measurement area is 6mm, with automatic shutdown function, saving energy and extending battery life.
Features

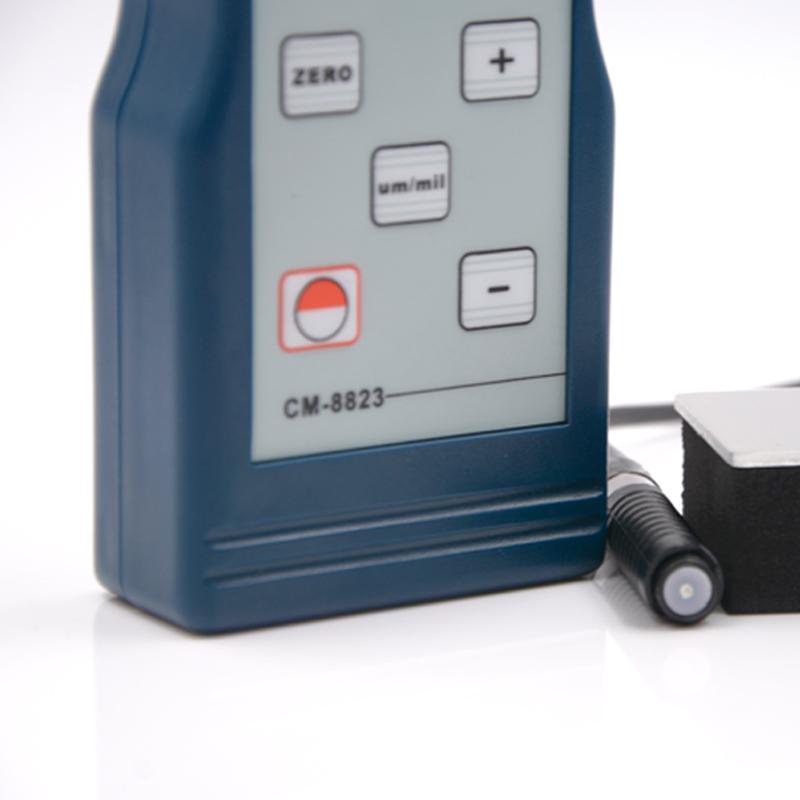

1. Portable structure design

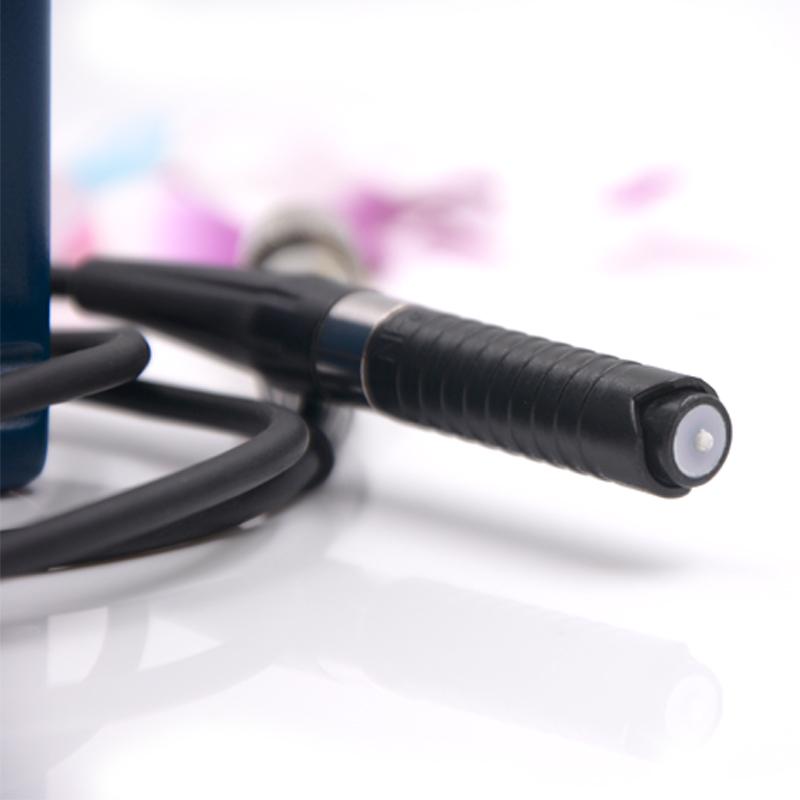

2. Take-out N Probe
3. LCD display thickness data
4. Measurement range 0~ 1000 microns
5. Minimum surface measurement capability convex 3mm
6. Minimum measurement area 6mm
7. Automatic shutdown function
8. Low voltage prompt function
9. Unit display supports μm/mils
Principle
CM8823 film thickness gauge using eddy Current thickness measurement principle, using eddy current Sensor measurement Coating thickness, suitable for measurement of the thickness of nonconductive coatings on aluminum.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection
Steps
1. Install 4 * AA batteries
2. Boot preparation measurement

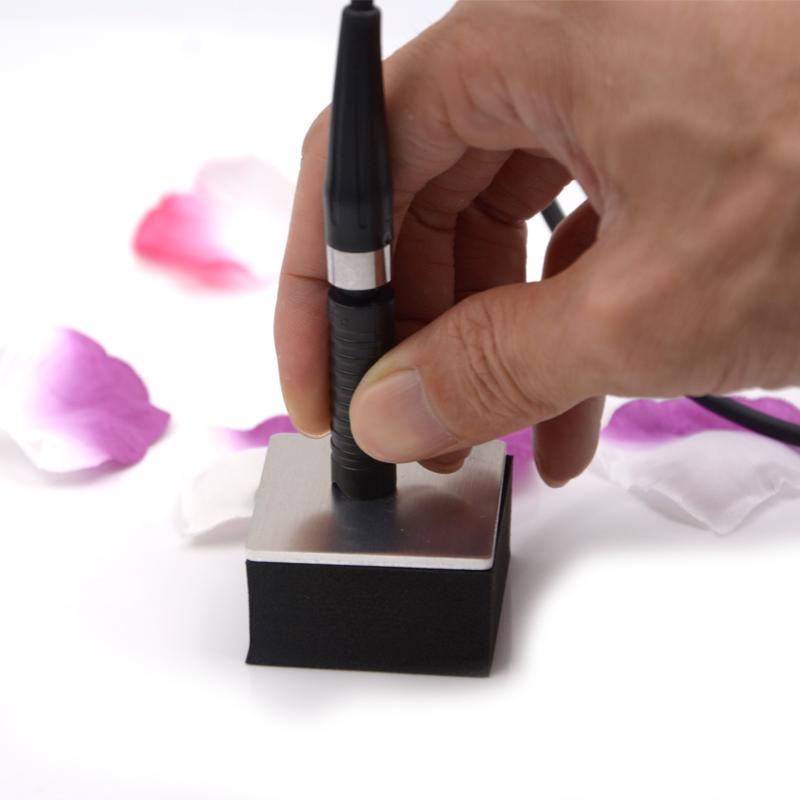

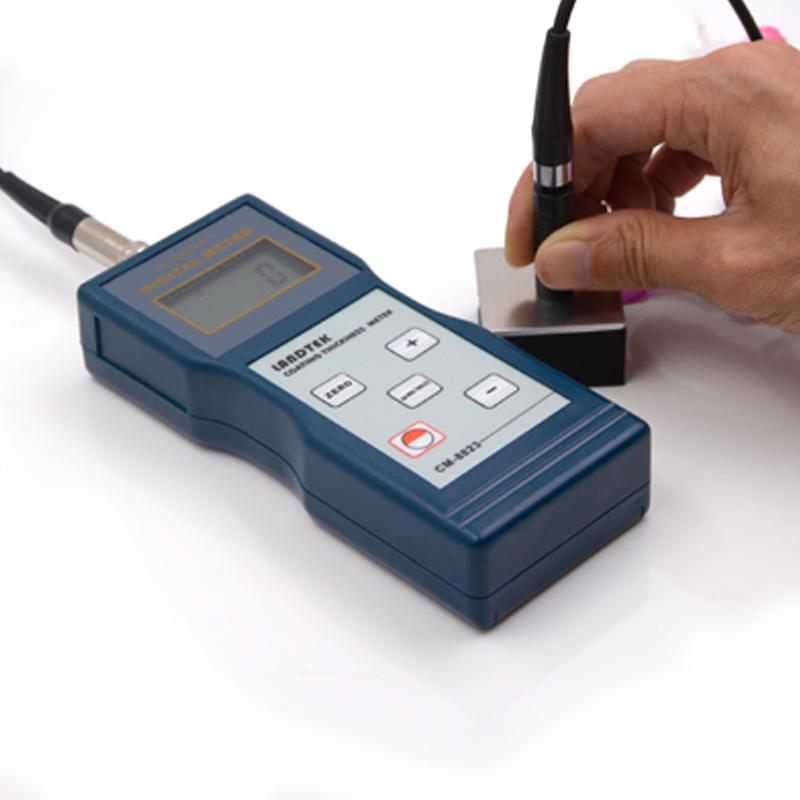

3. Place the Probe on the surface of the coating to be tested
4. Read the thickness data displayed on the LCD screen
5. Automatic shutdown after use
Notice
• Operating temperature range 0~ 40 ℃
• relative humidity range of 10~ 90% RH
• The thinnest substrate is required to be 0.3mm.
• Minimum measurement surface diameter is φ 6mm
Only for measurement of nonconductive coatings on aluminium
• Pay attention to the battery power and replace it in time
