Overview

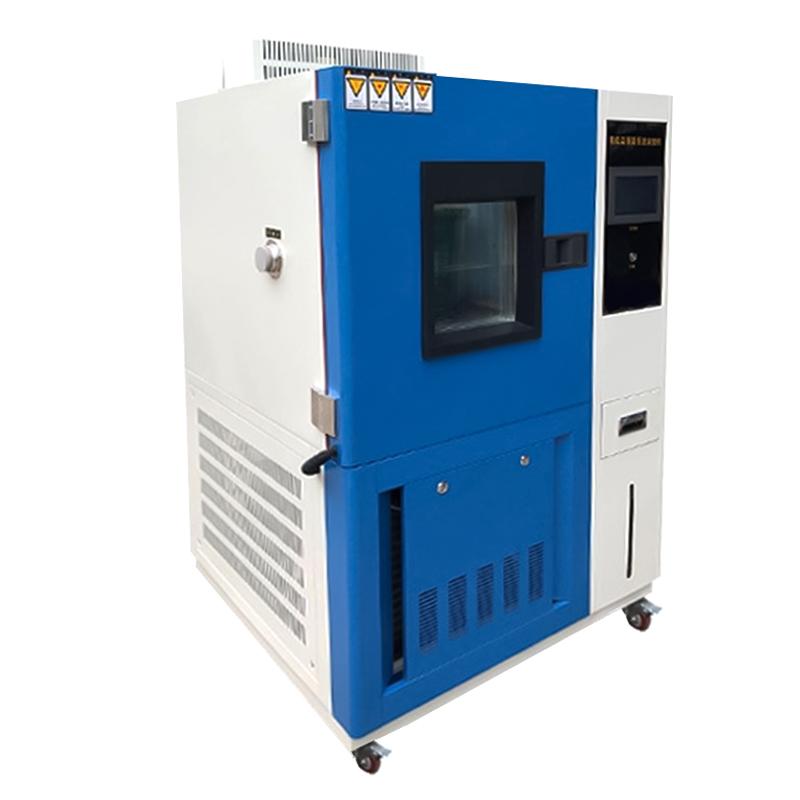

GDS-500D high and low temperature damping heat test chamber is produced by ZKHS, suitable for aerospace products, information electronic Instruments, materials, electrical and electronic products and various electronic components in high and low temperature or heat and humidity environment inspection performance indicators. Inner chamber dimensions of the equipment are 700 * 800 * 900mm, Temperature range -60~ 150 ℃, Humidity Control Range 30~ 98% R.H., with precise temperature and humidity control ability.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2. The liner adopts imported stainless steel mirror plate, and the shell adopts A3 steel plate spray
3. Equipped with a large observation window with lighting, it can clearly observe the situation in the box
4. Humidification system piping and control circuit board are designed separately to improve safety
5. Use ultra-fine fiberglass insulation cotton to avoid unnecessary energy loss
6. Equipped with a 50mm diameter test hole, it can be used for external test power cord or signal cable
7. The temperature and humidity control instrument adopts a 7.0-inch large screen, which is easy to operate and easy to edit programs
8. Capacity with 100 sets of programs and 1000 segments of 999 cycle steps
9. The refrigerator adopts the original French "Taikang" fully enclosed Compressor
10. Adopt a multi-wing blower with strong air circulation to ensure uniform distribution of temperature and humidity
Principle
The equipment is heated by a fully independent system of nickel-chromium alloy electric heating heater, and the built-in isolated all-stainless steel shallow surface evaporative humidifier is humidified. The evaporator coil dewpoint temperature laminar contact dehumidification method is used to achieve dehumidification. The refrigeration system adopts the original French "Taikang" fully enclosed Air-Cooled compression refrigeration method, and a strong air supply circulation is realized through a temperature-resistant and low-noise air-conditioning motor and a multi-blade centrifugal wind turbine to ensure uniform temperature and humidity distribution in the test area.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical and Electronic Products, Various Electronic Components
Standards
GB/T10592－2008、GB/T10586－2006、GB/T2423.1－2008、GB/T2423.2－2008、GB/T2423.3－2006、GB/T2423.4－2008、GJB150.3A-2009、GJB150.4A-2009
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ + 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Power frequency requirements are AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire system
• The equipment has the function of automatic water shortage protection, and the water source needs to be replenished in time
• Equipment with leakage, short circuit, over temperature, water shortage, motor overheating, Compressor overpressure, overload, overcurrent protection and other safety devices
