Overview

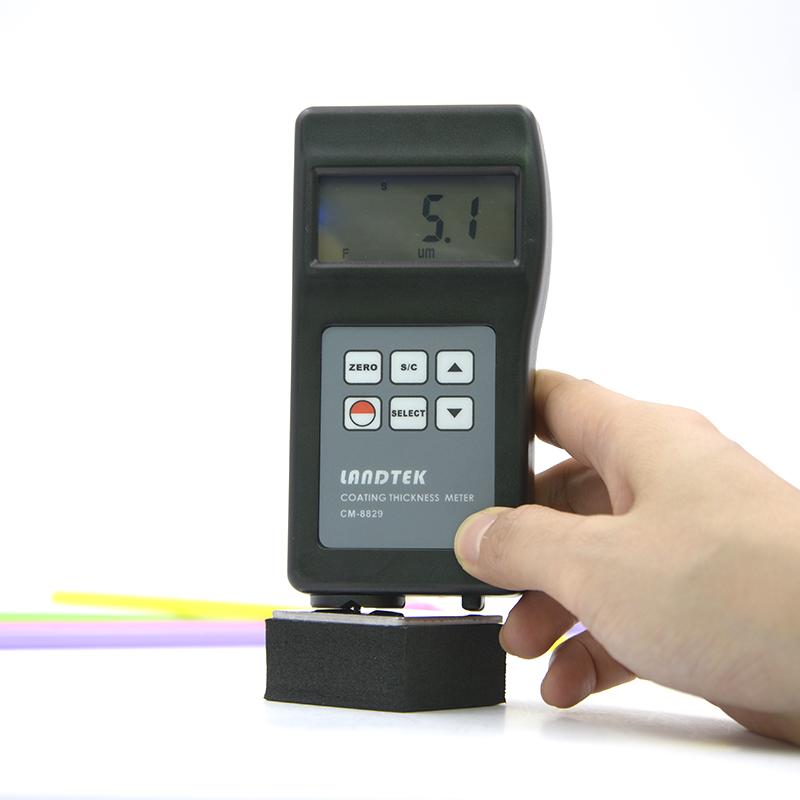

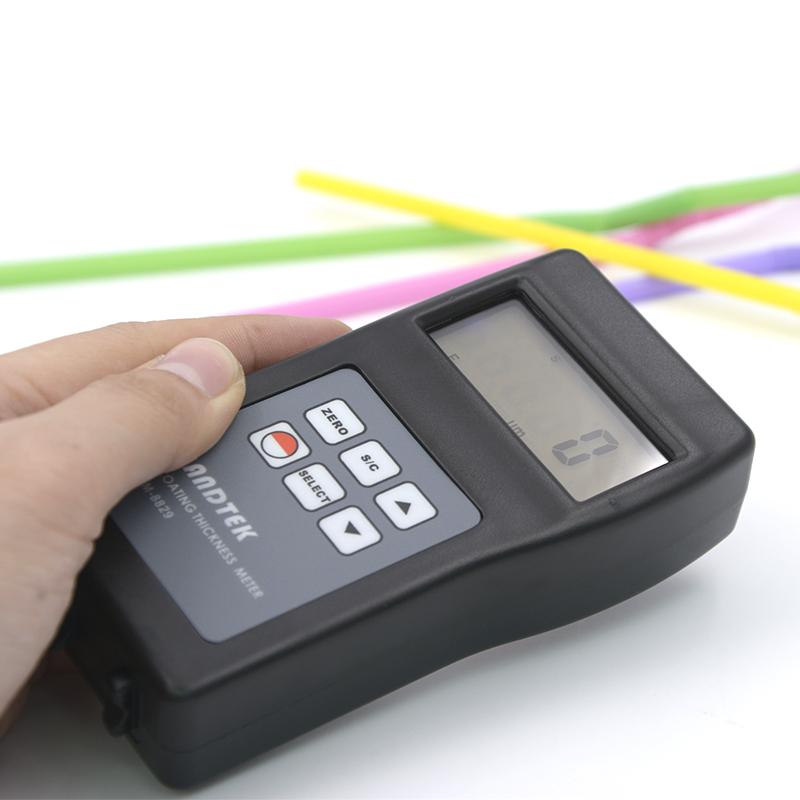

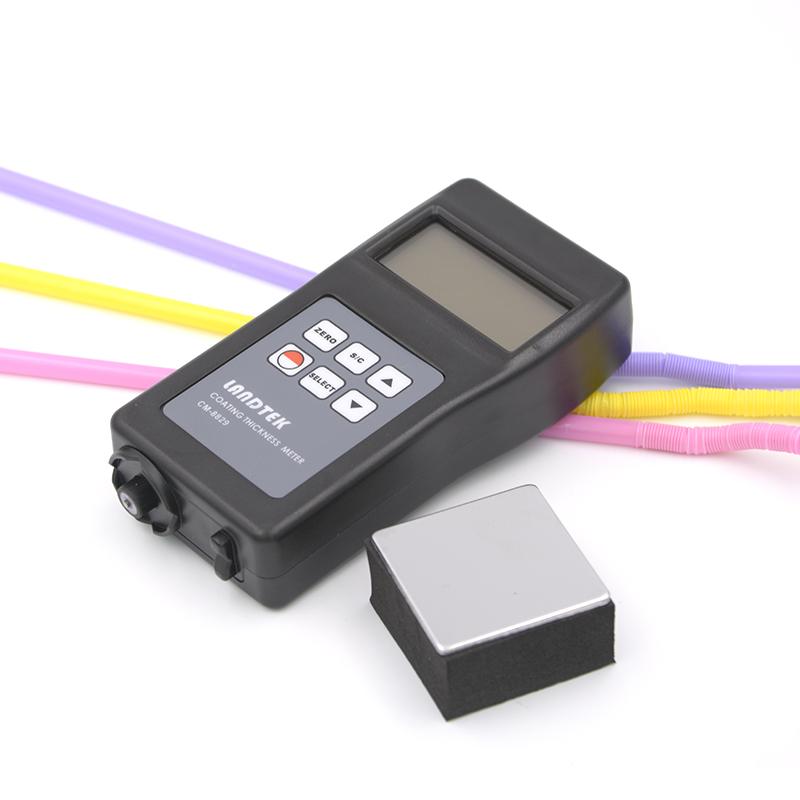

The LANDTEK CM8829f magnetic thickness gauge is a practical Coating thickness gauge in the LANDTEK Coating thickness gauge series, used for the measurement of magnetic coatings on non-magnetic materials on metals. The instrument is designed with a built-in integrated Sensor structure, which is convenient for thickness measurement on the outer belt. Stability during measurement is better, which can meet the needs of most applications. It has digital display, professional structure design and a variety of Measuring methods, which can be widely used in a variety of Coating thickness measurement.
Features
1. Metric/imperial unit conversion
2. Single and Continuous Measurement modes available
3. Automatically remember the calibrated value and automatically identify the material of the tested substrate
4. With functions such as manual shutdown, automatic shutdown and undervoltage prompt
5. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
6. Use USB data cable output, RS-232C data cable and software to communicate with PC
7. Integral instrument is suitable for one-handed operation, with "Large Probe", large contact surface with better Stability, accurate results and strong Repeatability
8. Optional configuration Bluetooth ™ data output selection
Principle
The LANDTEK CM8829f magnetic thickness gauge adopts the principle of magnetic Induction to measure the thickness of non-ferromagnetic coatings and platings on ferromagnetic metal substrates such as steel and iron through magnetic Sensor.
Applications
Paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxidation layer, etc
