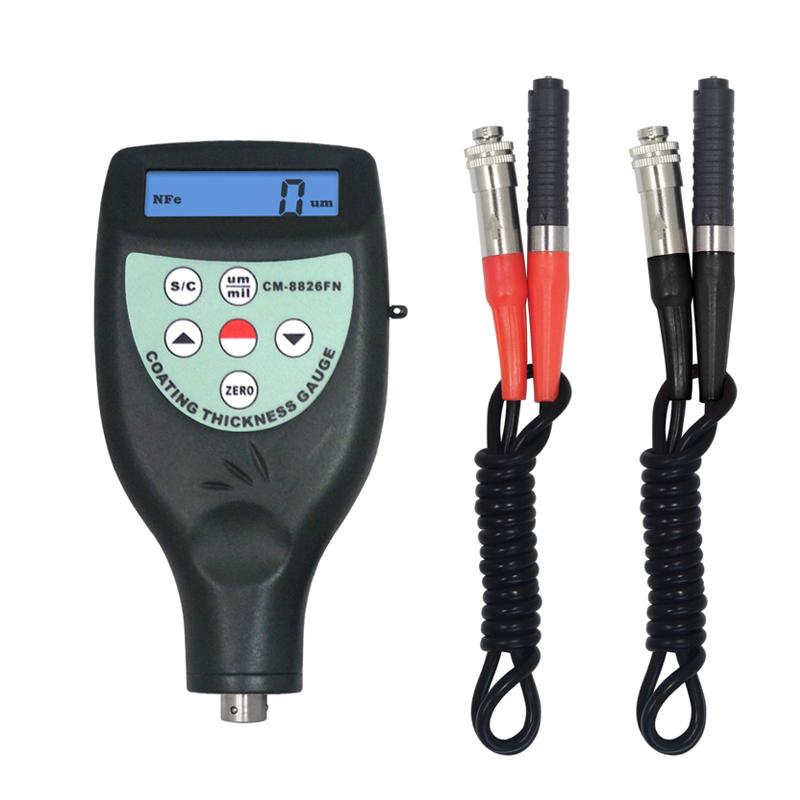

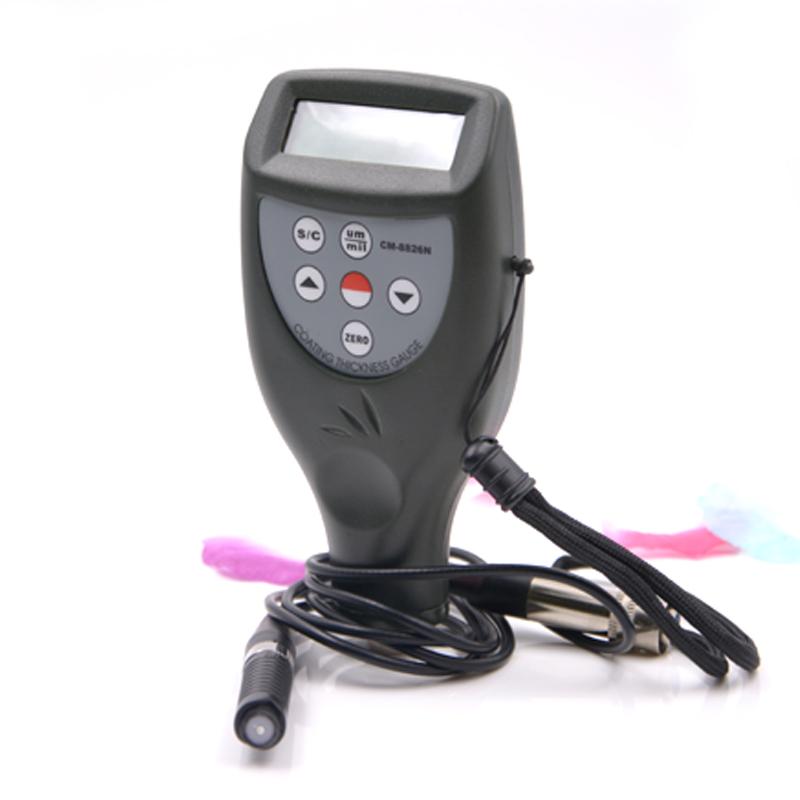

LANDTEK CM8826N Coating thickness Gauge dry film thickness Gauge eddy current principle 0-1250μm

Name: LANDTEK CM8826N Coating thickness Gauge dry film thickness Gauge eddy current principle 0-1250μm
Brand: LANDTEK
SKU: NB000271
Price: 316.0 USD
Availability: InStock

$ 316.00Ex works

Measurement range of 0-1250μm using eddy current principle, with single and continuous two measurement modes, support metric imperial unit conversion, with split Probe and RS232C interface, providing Automatic calibration and matrix recognition function.

Model

CM8826n

Get Quote

Category : Coating Thickness Gauge

Brand : LANDTEK

SKU : NB000271

Service :The delivery and service By NBCLab.Com

Overview

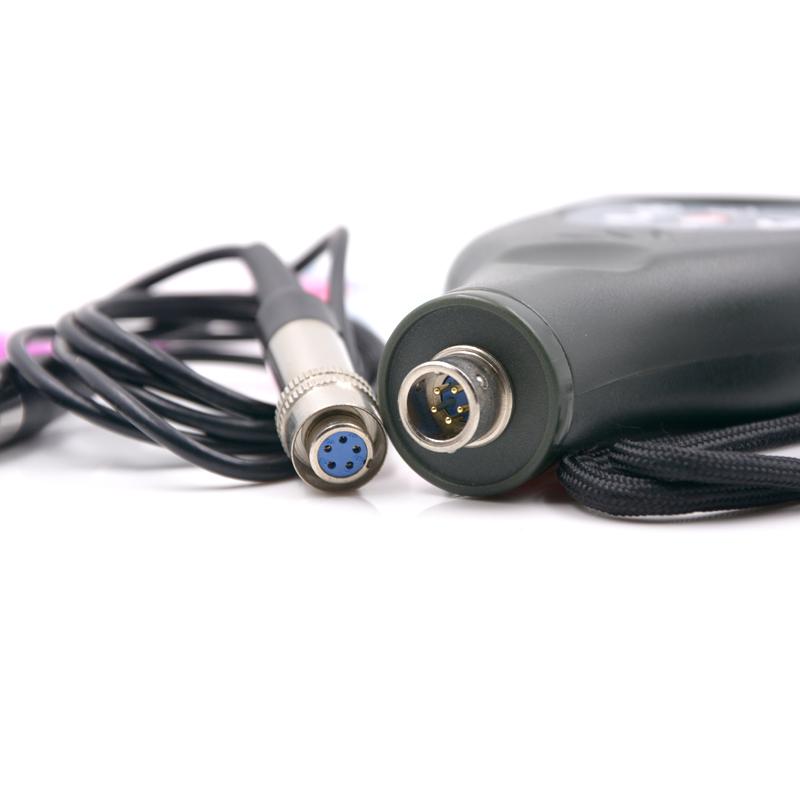

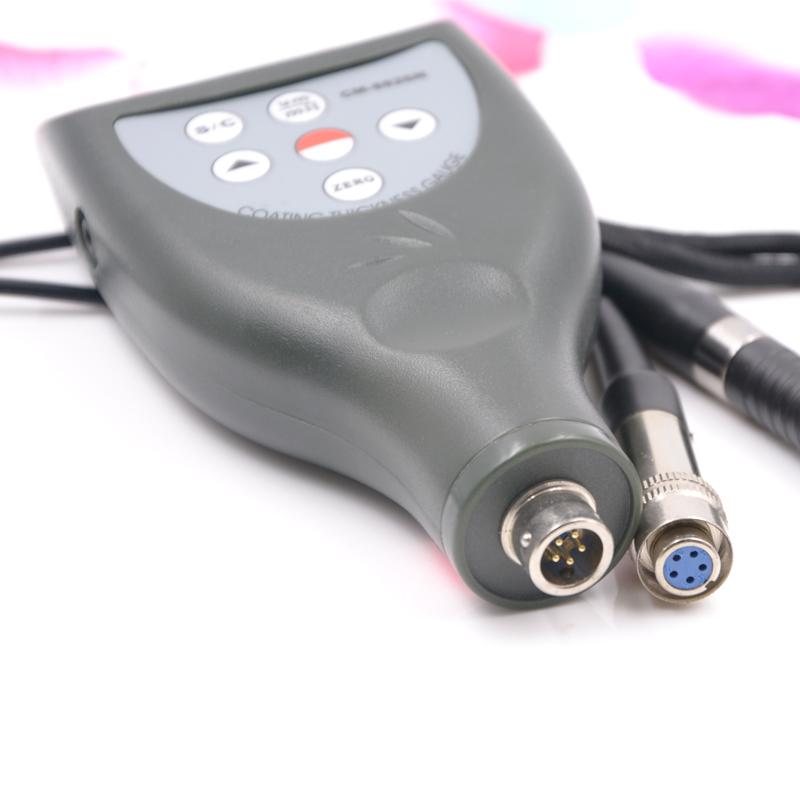

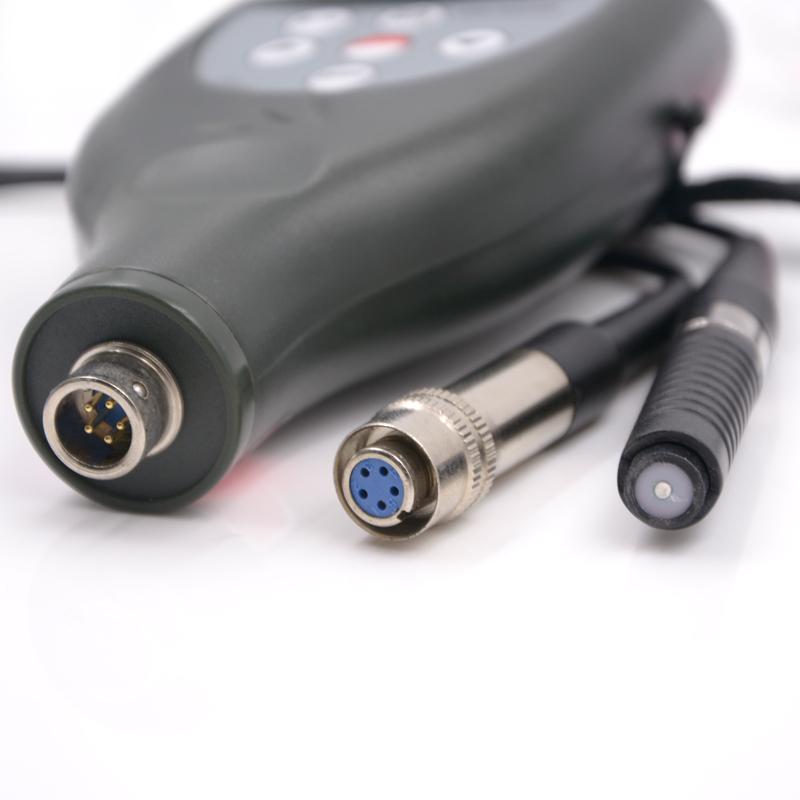

LANDTEK CM8826n dry film thickness gauge is an eddy current thickness gauge. It uses the eddy current thickness measurement principle to measure the Coating thickness on non-magnetic conductive substrates such as Aluminum Panels and copper plates. It is mainly used for measuring dry-film thickness. The instrument adopts the separation design of the host and the Sensor. It is equipped with eddy current sensor as standard, and Miscellaneous Sensor is also optional to adapt to different Measured objects. Measurement range is 0~ 1250 microns.

Features

1. Non-ferrous dry film thickness gauge 2. Measurement mode: Single Measurement mode and Continuous Measurement mode 3. Metric/imperial unit conversion 4. With functions such as manual shutdown, automatic shutdown and undervoltage prompt 5. Automatically remember the calibrated value and automatically identify the material of the tested substrate 6. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement 7. With RS232C interface, RS-232C data cable and software can be used to communicate with PC 8. Optional configuration Bluetooth data output selection 9. split design, provide a variety of Probes, more mobile measurement 10. Spring guide sleeve Probe with wear-resistant hard metal probe, which can be measured on hard or rough surfaces to ensure that the probe has constant tightness and stable sampling values 11. The display screen is a 4-digit 10mm LCD screen

Principle

LANDTEK CM8826n dry film thickness gauge adopts the principle of eddy current thickness measurement, and measures the Coating thickness on the non-magnetic conductive substrate through eddy Current Sensor.

Applications

Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields

Measurement principle
NF eddy current
Measurement Range
0~1250μm
resolution
0.1μm/1μm
minimum radius of curvature
F: convex 1.5mm/concave 25mmN: convex 3mm/concave 50mm
minimum measurement surface
6mm
thinnest matrix
0.3mm
margin of error
+/- 1~ 3% n or +/- 2.5um
Metric/Imperial
optional
Battery Voltage prompt
Low Voltage prompt
Operating Conditions
Temperature: 0~ 40℃, Humidity: 10~ 90% RH
power supply
4 AA batteries
Dimension
126x65x27mm
weight
120G (without battery)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
