Overview

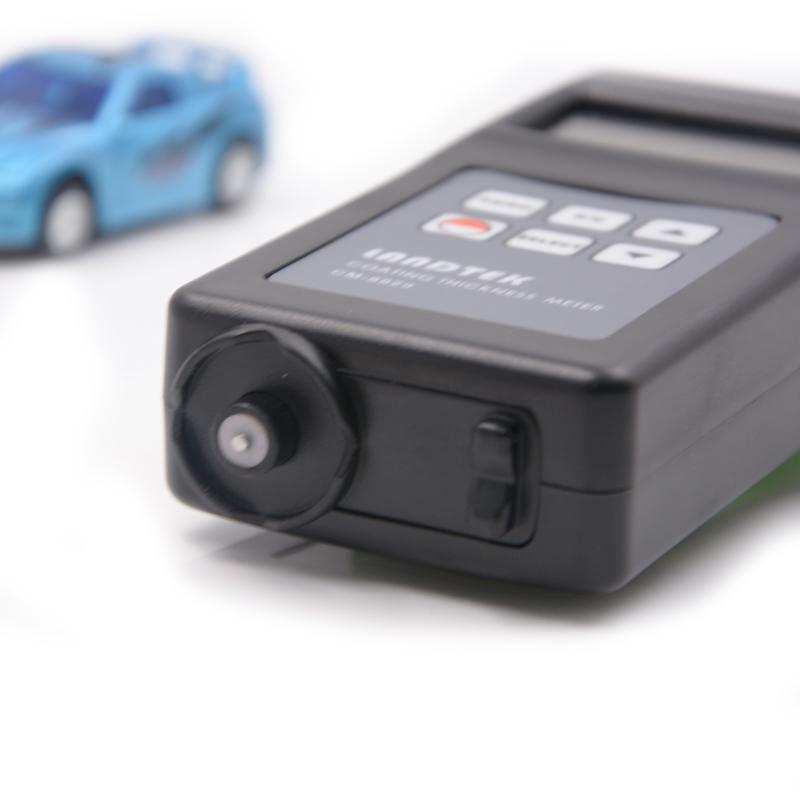

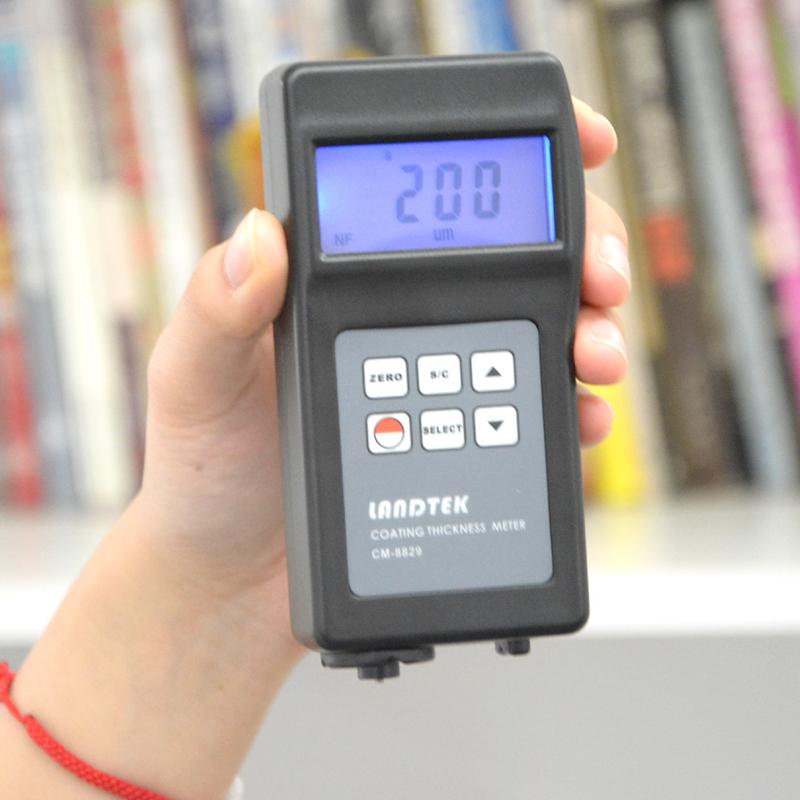

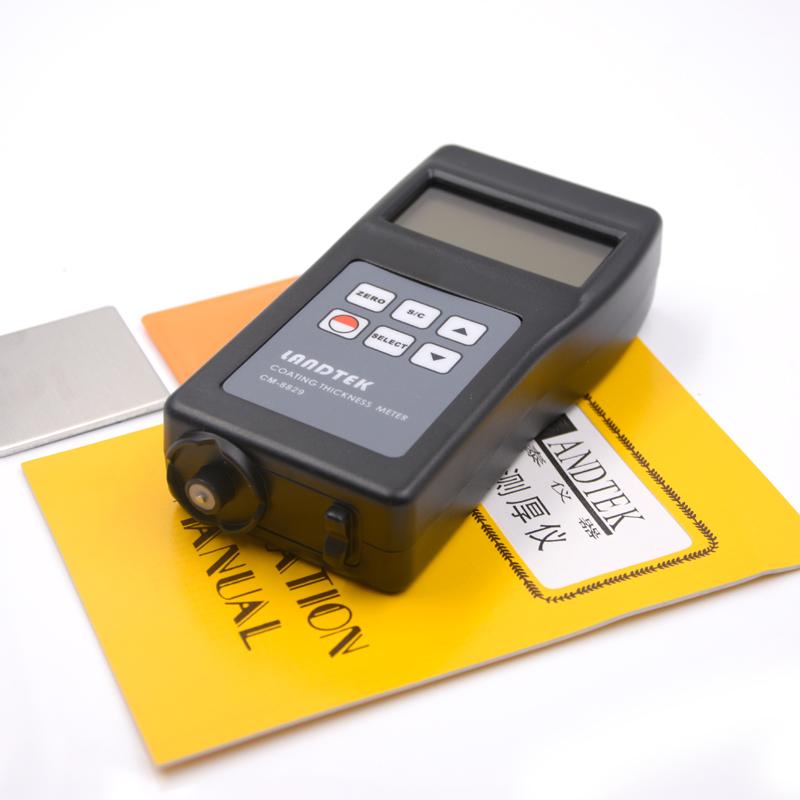

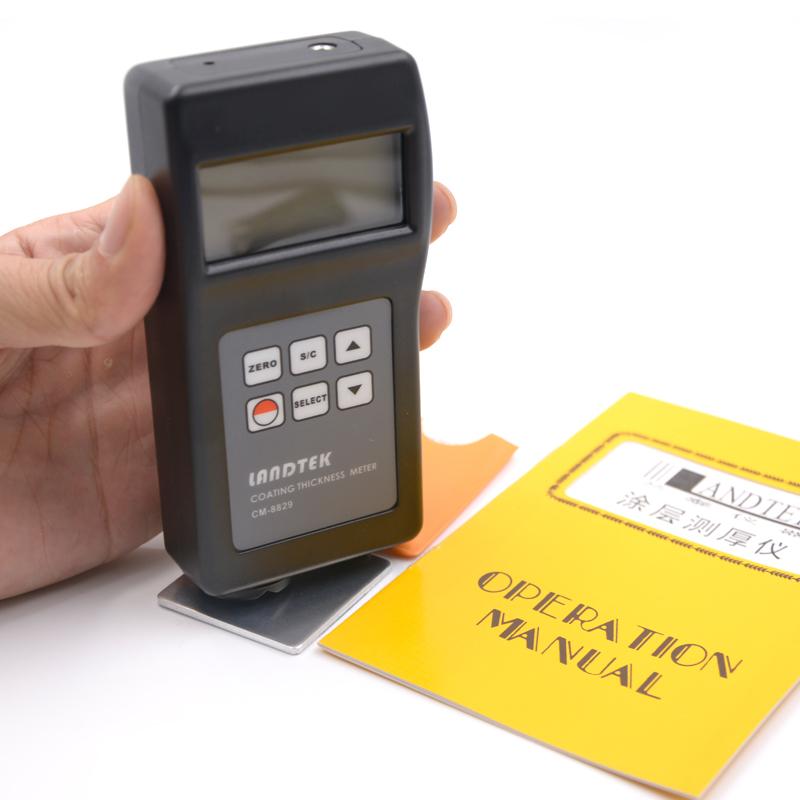

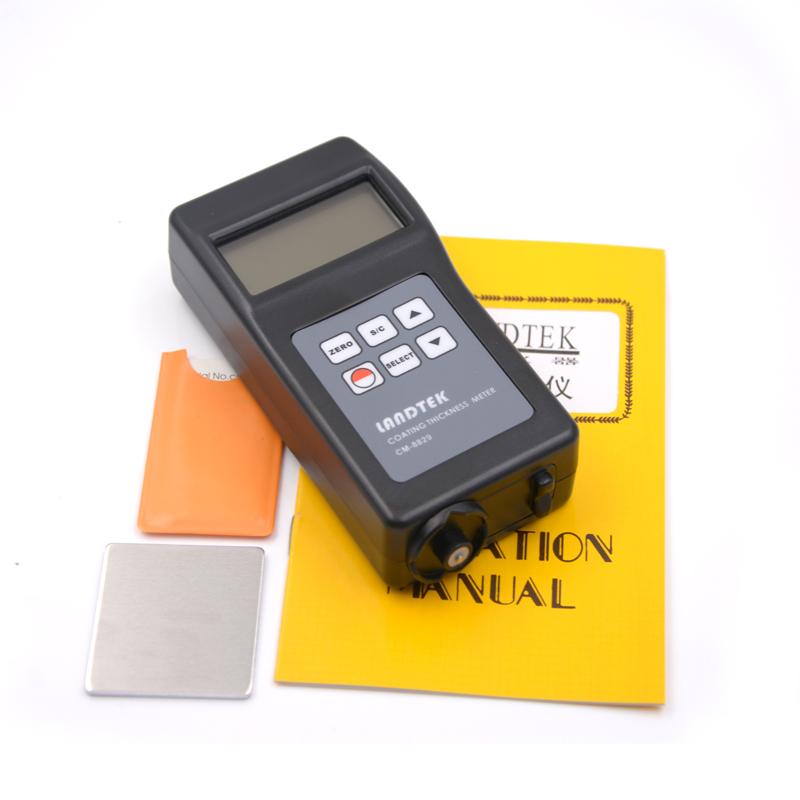

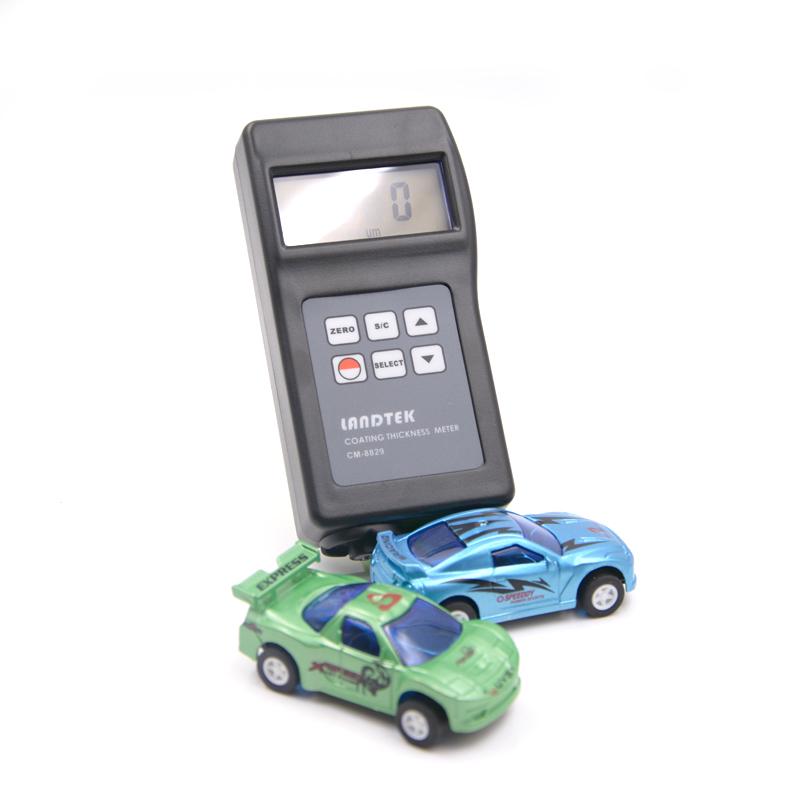

The LANDTEK CM8829n Lacquer Thickness Gauge is an integrated Coating thickness gauge with a built-in eddy current Sensor. It is compact and easy to carry. The thickness gauge uses a hard plastic case with impact resistance. The operation panel consists of six buttons for all thickness measurement operations, and the measurement is fast and simple.
Features
1. Single and continuous Measurement modes are available.
2. Metric/imperial unit conversion.
3. It has functions such as manual shutdown, automatic shutdown and undervoltage prompt.
4. Automatically remember the calibrated value and automatically identify the material of the tested substrate.
5. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement.
6. Use USB data cable output, RS-232C data cable and software to communicate with PC.
7. Provide optional configuration Bluetooth ™ data output selection.
8. The overall design is suitable for one-handed operation, with "large Probe" and large contact surface, good Stability, accurate results and strong Repeatability.
Principle
LANDTEK CM8829n paint layer thickness gauge adopts eddy Current principle for measurement, and detects the Coating thickness on copper, aluminum, zinc, tin and other substrates through the built-in eddy current Sensor.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields
Notice
As a precision instrument, it is necessary to prevent collisions.
* Operating temperature range is 0~ 40 ℃, relative humidity range is 10~ 90% RH.
