Overview

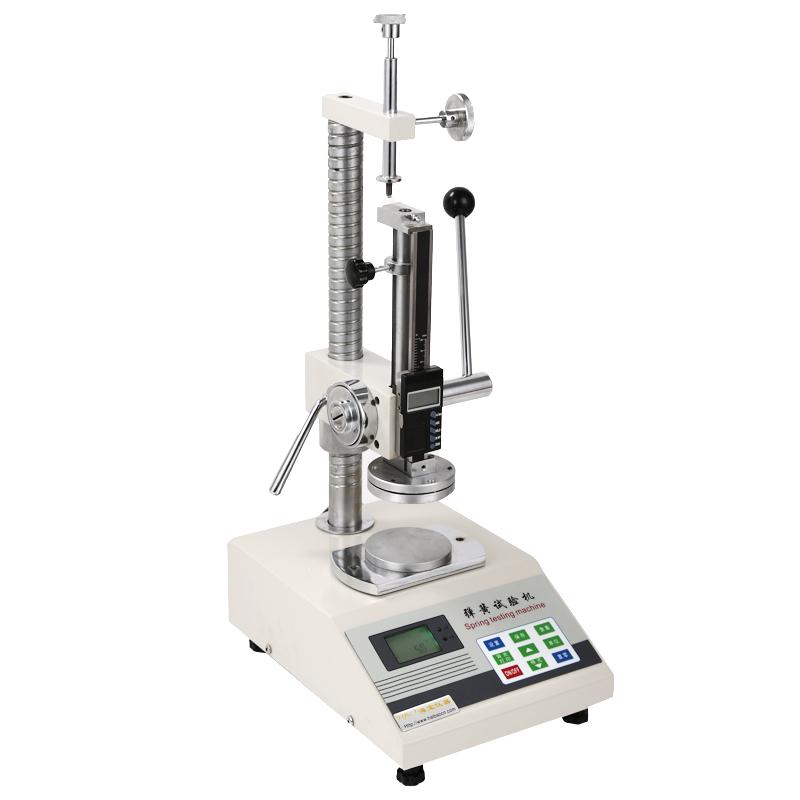

HT-5000P spring tensile and compression testing machine is a HT series electronic digital display spring tensile and compression testing machine under the HBO brand, which is specially used to test the deformation and load relationship characteristics of tensile and compression springs. The instrument is suitable for working load testing of tensile and compression springs under a certain working length.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
HT-5000P spring tensile and compression testing machine applies load to tensile and compression springs through electronic digital display technology, and measures the deformation of the spring and the load relationship characteristics. The instrument uses High Accuracy Sensor to collect data, and displays the test results in real time through the LCD screen, and has data storage and processing functions.
Applications
Tension spring test, compression spring test
Standards
+/- 0.5% accuracy
Steps
1. Set the upper and lower limit alarm values
2. Select the test unit (N, kgf, lbf)
3. Set peak hold time (0 to 99 seconds)
4. Set the automatic shutdown time without operation (0-99 minutes)
5. Conduct spring tensile or compression tests
6. View the test data and perform analysis and processing
7. Optionally connect the computer to display the force value Linear dispersion and force value table
8. Optionally use a micro printer to output test results
Notice
• Maximum measurement value is 5000N, do not overload
• Graduation to 1N to ensure test accuracy
• Travel of displacement scale is 150mm, pay attention to the test range
• The maximum free length of the measurable spring is 150mm
• Effective Travel ≤ 135mm
• Maximum pressure space ≤ 430mm
• The maximum pulling space is ≤ 280mm
• Instrument net weight 70kg, pay attention to safety when handling
• accuracy of +/- 0.5%, regularly calibrated to ensure accuracy
