Overview

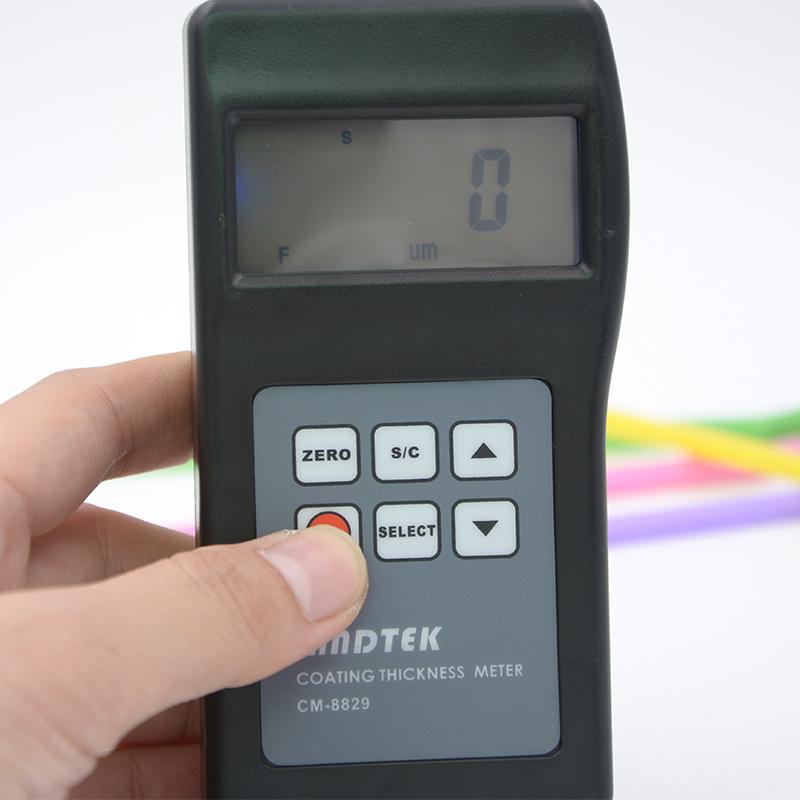

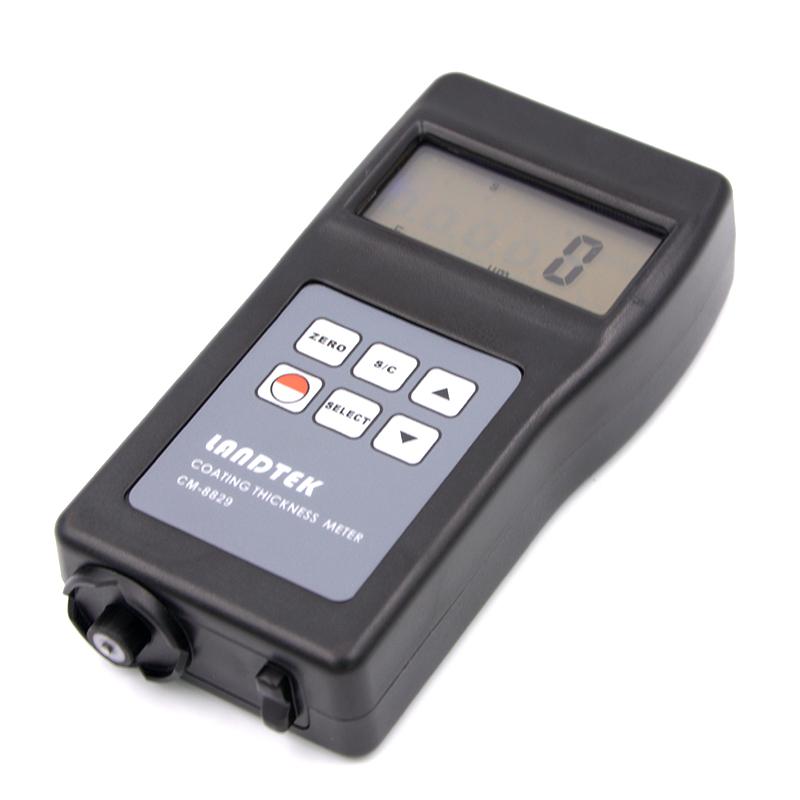

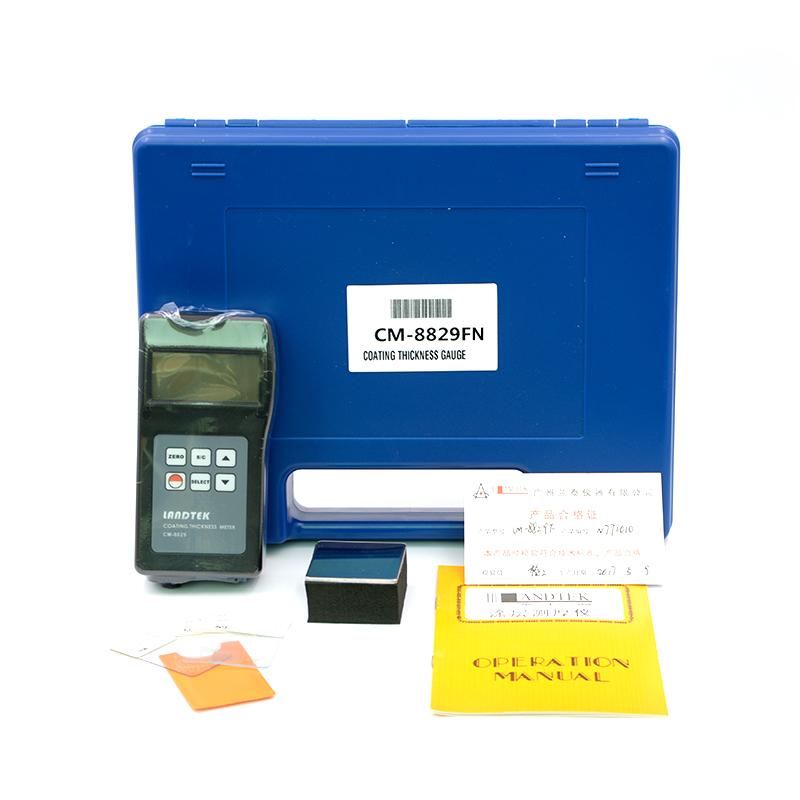

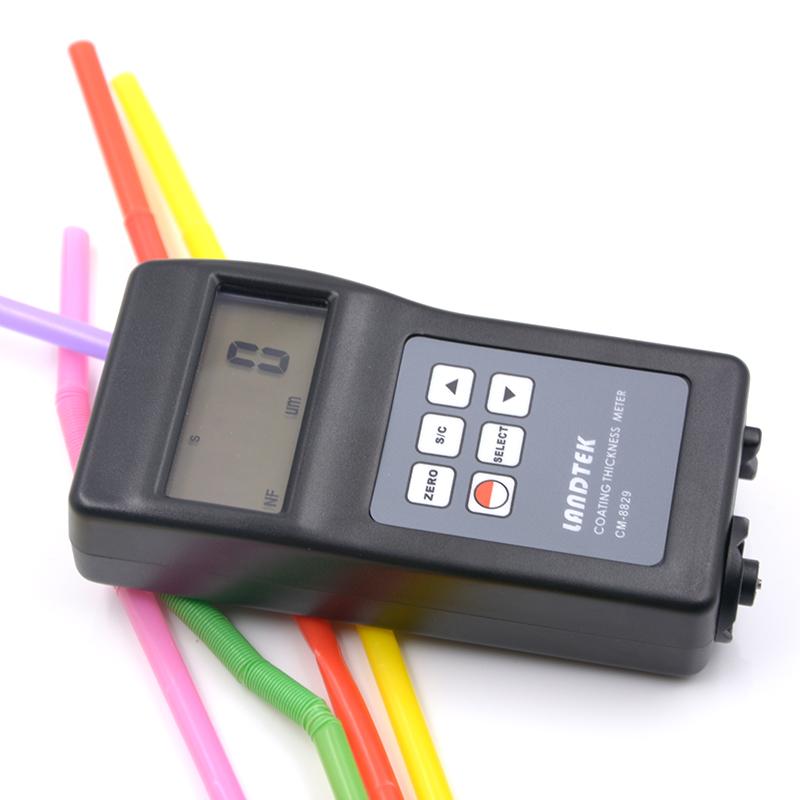

The LANDTEK CM8829fn Coating Thickness Gauge is a built-in probe type paints Coating thickness gauge with eddy Current and magnetic Induction dual-use technology, with single and continuous measurement modes. The instrument can automatically identify different substrate materials. Measurement range 0~ 1250 microns and automatic shutdown function are suitable for thickness measurement in Coatings, paints, metals and other fields.
Features
1. Single and Continuous Measurement modes available
2. Metric/imperial unit conversion function
3. With functions such as manual shutdown, automatic shutdown and undervoltage prompt
4. Automatically remember the calibrated value and automatically identify the material of the tested substrate
5. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
6. Use USB data cable output, RS-232C data cable and software to communicate with PC
7. Provide optional configuration Bluetooth Bluetooth ™ data output selection

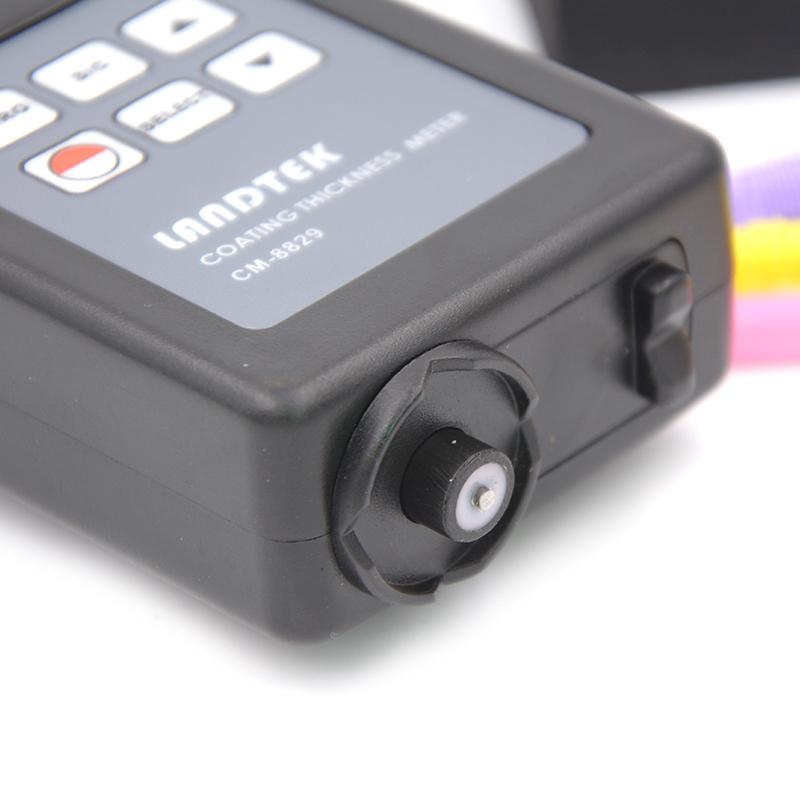

8. The integral design is suitable for one-handed operation, the large Probe contact surface has better Stability, accurate measurement results and strong Repeatability
Principle
CM8829FN Coating thickness gauge adopts magnetic Induction and eddy Current Measurement principles. Magnetic Induction Sensor is used for the measurement of non-ferromagnetic Coating thickness on ferromagnetic metal substrates such as steel and iron; eddy Current Sensor is used for the measurement of non-conductive Coating thickness on copper, aluminum, zinc, tin and other substrates.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields
Steps
1. Select Single or Continuous Measurement mode
2. Probe into contact with the tested surface
3. The instrument automatically recognizes the substrate material and makes measurements
4. Read the thickness value on the display
5. Data transmission with PC via data cable or Bluetooth
Notice
* Operating temperature range is 0~ 40 ℃
* relative humidity range of 10~ 90% RH
* Minimum measurement surface is φ 6mm
* Minimum thickness of ferromagnetic substrate is 0.3mm
* Minimum radius of curvature of iron matrix: convex 1.5mm/concave 25mm
* Minimum radius of curvature for non-ferrous substrates: convex 3mm/concave 50mm

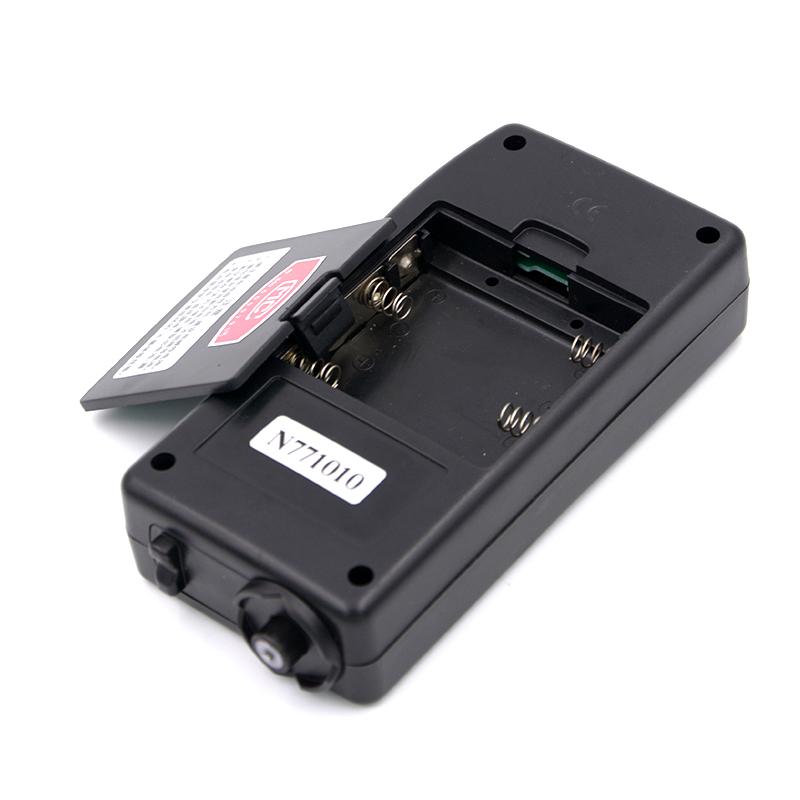

* Pay attention to the battery level, the instrument has a low voltage prompt function
