Overview

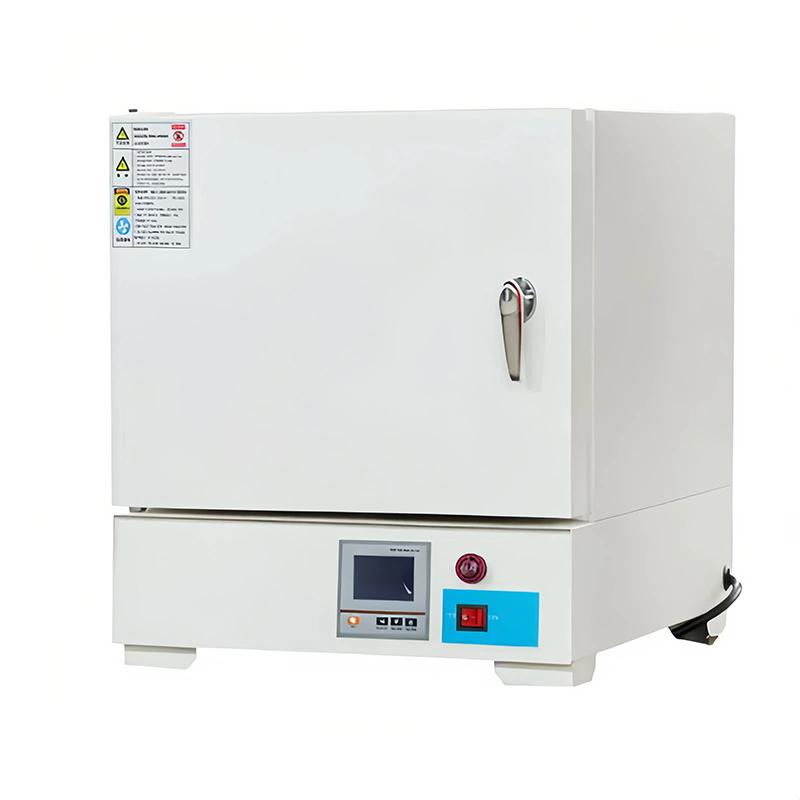

BOZHEN BZ-10-12 integrated muffle furnace is a periodic working heater with a maximum temperature of 1200 ° C, a heating power of 10KW, and a furnace size of 160 * 250 * 400mm. This product can be used in laboratories of industrial and mining enterprises, scientific research and other units for chemical analysis, physical determination and general heating of small steel parts.
Features
1. Adopt overall design and user-friendly menu design for easy operation.
2. Application of industrial PID self-tuning control technology, dual-screen high-luminance window digital display, clear and intuitive indication.
3. Microcomputer intelligent control, effectively solving the problem of temperature overshoot, with good temperature control effect.
4. After setting the temperature, the instrument controls the heating output by itself, and the temperature control is accurate and stable.
5. With over-temperature alarm device, automatically cut off the heating output when overheating.
6. It has a timing function to meet different experimental requirements.
Principle
The integrated muffle furnace adopts the principle of resistance heating, and uses the industrial PID self-tuning technology to precisely adjust the heating power through the microcomputer intelligent control system to achieve stable temperature control. When the temperature is set, the instrument automatically controls the heating output to ensure that the temperature in the furnace is accurately maintained at the set value.
Applications
Industrial and mining enterprises, R & D institutions, chemical analysis, physical measurement, heat treatment of small steel parts
Steps
Connect the power supply to ensure that the voltage meets the requirements (380V).
2. Set the required temperature and working time through the user-friendly menu.
3. Start the device and the meter controls the heating output by itself.
4. During the operation of the equipment, monitor the temperature display, automatically alarm and cut off the heating when it exceeds the temperature.
5. After the work is completed, turn off the equipment according to the procedures.
Notice
• Power frequency matching (380V) before use.
• The set temperature must not exceed the rated maximum temperature of 1200 ° C.
• Timely handling of over-temperature alarms to avoid equipment damage.
• Pay attention to safety during operation to prevent burns.
• Maintain equipment regularly to ensure normal operation.
