Overview

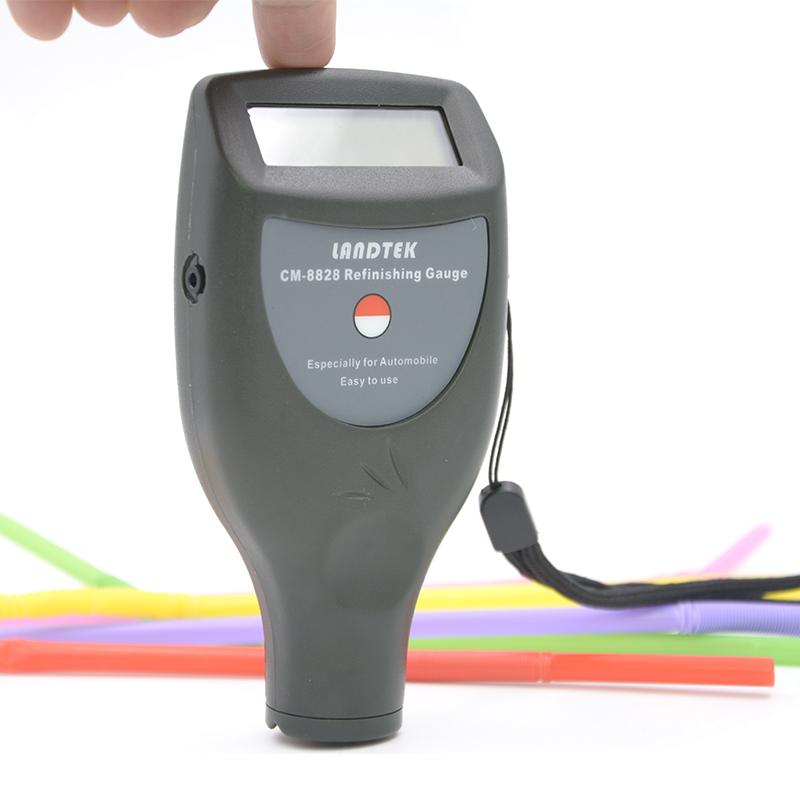

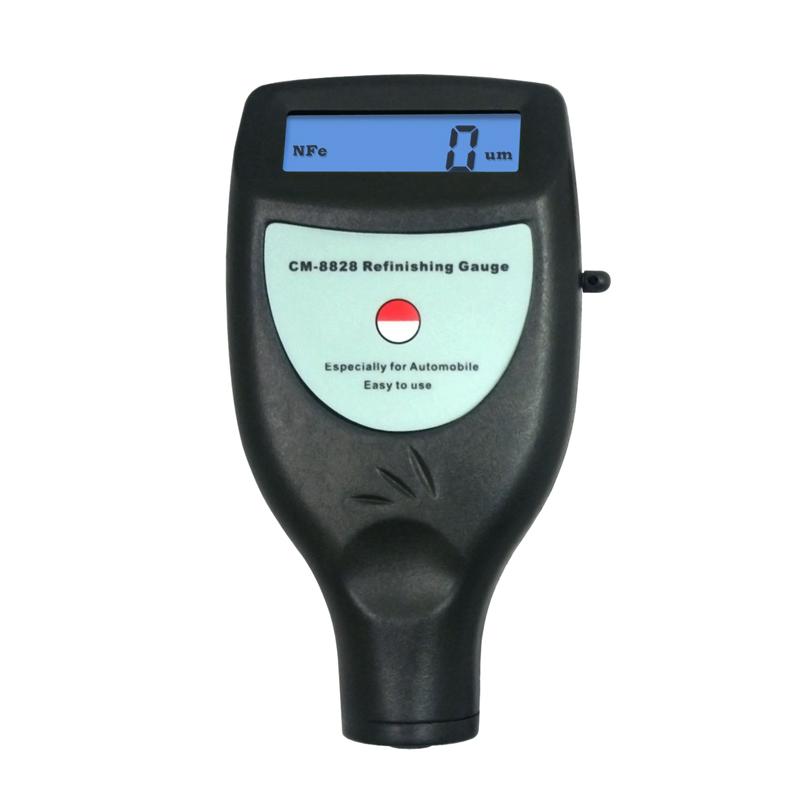

LANDTEK CM8828 paint film thickness gauge is a kind of Portable measurement instrument, which can quickly, non-destructive and precise measurement of the thickness of automotive coatings and platings.
Features
1. Iron-based and non-iron-based dual-use paint film thickness gauge
2. Single and Continuous Measurement modes available
3. Metric/imperial unit conversion
4. With functions such as manual shutdown, automatic shutdown and undervoltage prompt
5. Automatically remember the calibrated value and automatically identify the material of the tested substrate
6. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
7. Use USB data cable output, RS-232C data cable and software to communicate with PC
8. Provide optional configuration Bluetooth Bluetooth ™ data output selection
9. One-click operation, fast and convenient
Principle

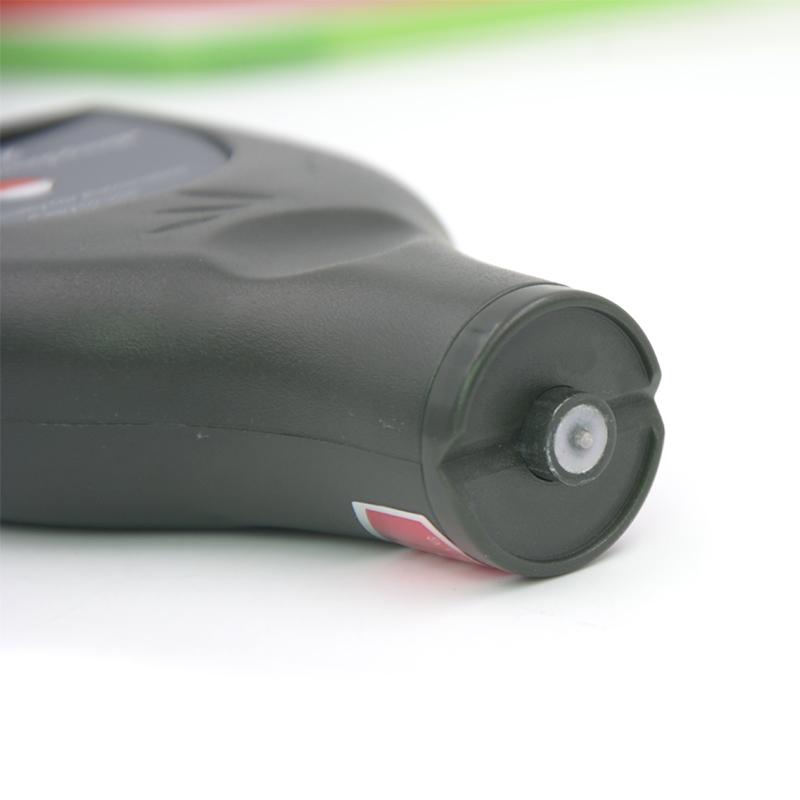

CM-8828 with magnetic Sensor measurement of steel, iron and other ferromagnetic metal substrates on non-ferrous magnetic coatings, platings, with eddy current Sensor measurement of copper, aluminum, zinc, tin and other substrates on the enamel, rubber, paints, plastic layer.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields
Steps
1. Measurement mode (single or continuous)
2. Automatically identify the material of the tested substrate

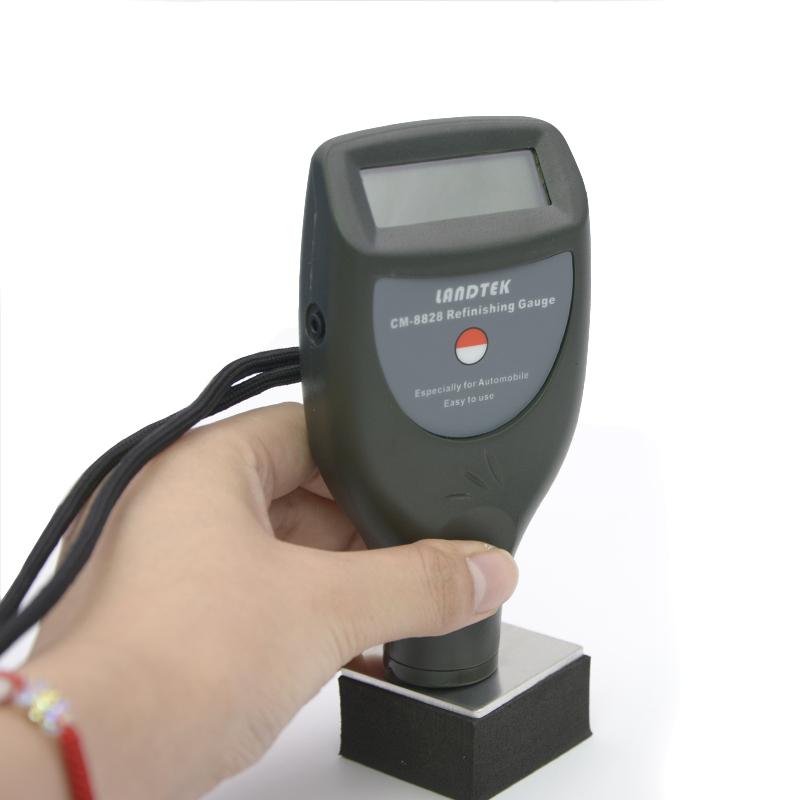

3. Perform measurement operations
4. Read measurement results
Notice
• Measurement range 0~ 1250μm
• Error range is +/- 3%
• Minimum radius of curvature: F Probe convex 1.5mm/concave 25mm; N Probe convex 3mm/concave 50mm
• The thinnest substrate is 0.3mm.
• Minimum measurement surface is φ 6mm
• Operating temperature 0~ 40 ℃
• relative humidity of 10~ 90% RH

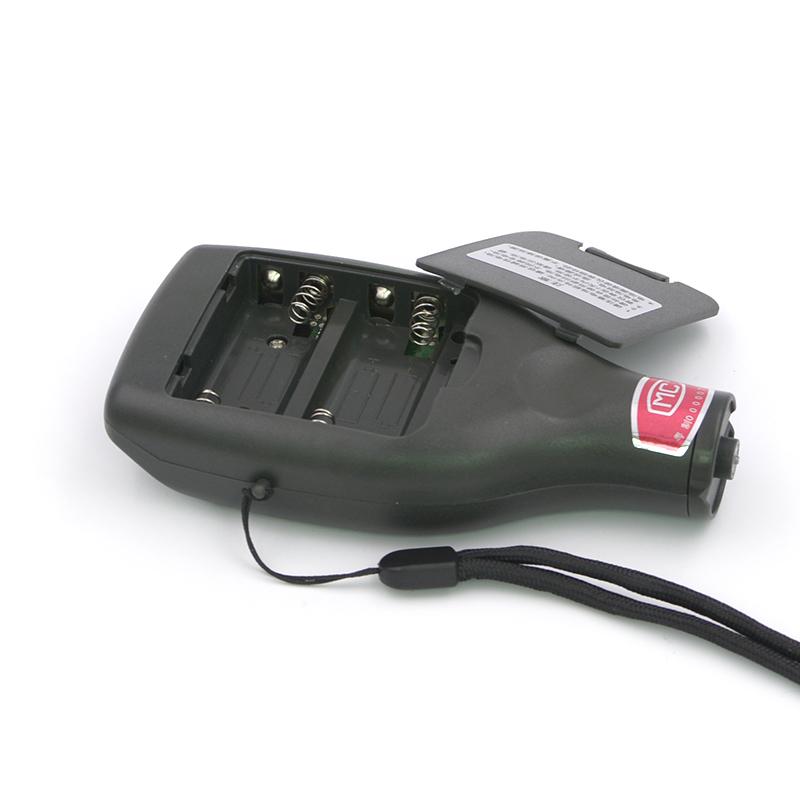

• Powered by 4 * AAA batteries, pay attention to low voltage prompts
