Overview

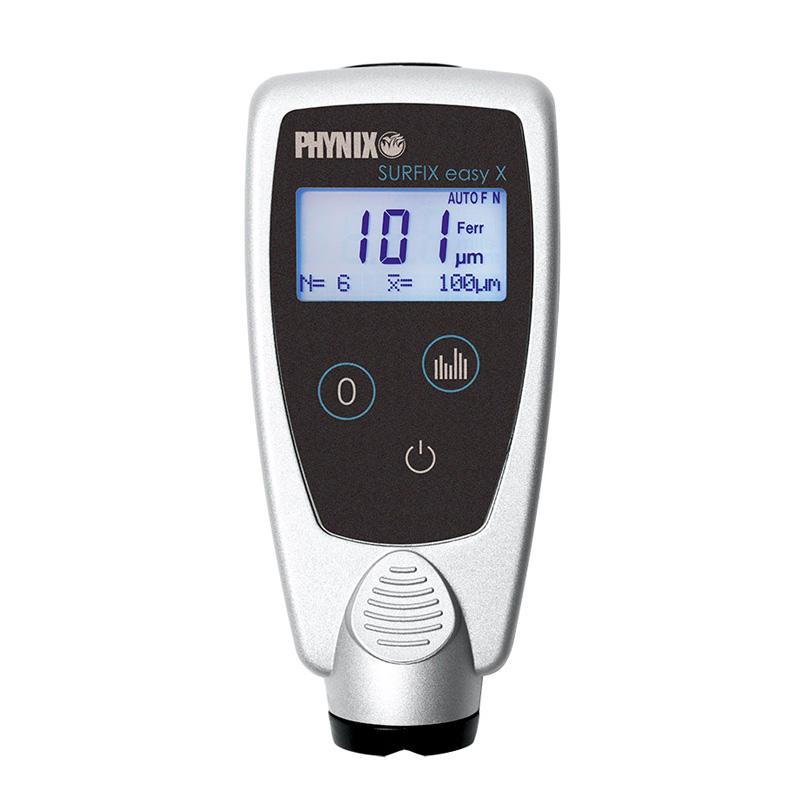

The PHYNIX Easy x I-F HR Coating thickness gauge is a general-purpose device of the Surfi x ® easy X series for daily operation and laboratory measurements. The series uses magnetic Induction and eddy current measurement principles to automatically identify substrate types, provides a one-click calibrate function for improved measurement accuracy, and has built-in online statistics for fast display of Average, Standard Deviation and Maximum MIN Minimum.
Features
1. Free calibrated measurement: direct measurement when turned on
2. Backlit display for easy reading in dark environment
3. Single point calibrating for accurate measurements on various surfaces
4. Automatic identification of steel/non-ferrous metal substrates
5. Built-in online statistics (quantity, average, standard deviation, MIN Minimum, MAX Maximum)
6. Large landing area to ensure safe positioning
7. There is a sound prompt when the measurement is completed
8. Units can be switched between µm/mils
9. Provide manufacturer test certificate
10. Enjoy 2-year warranty service
Principle
The thickness gauge uses both magnetic Induction and eddy current measurement methods in accordance with DIN EN ISO 2178 and 2360. The device automatically recognizes the substrate type and selects the corresponding measurement method, providing High Accuracy measurement on both steel and non-ferrous substrates, especially for thin coating measurement.
Applications
Paints shop, paints and powder coatings technology, automotive evaluation and automotive workshops, steel construction, automotive manufacturing, shipbuilding, loading area, production process, final inspection and mass assurance, laboratories
Standards
DIN、ISO、ASTM、BS
Steps
1. Turn on the device power supply
2. Place the Probe vertically on the surface of the measurement object
3. Equipment automatically recognizes substrate type and selects measurement method
4. Read measurement results
5. For improved accuracy, single point calibrating function can be used
Notice
• The minimum size of the measurement surface is 10x10mm
• The minimum radius of curvature of the convex surface is 5mm, and the minimum radius of curvature of the concave surface is 50mm
• Film thickness is 0.5mm
• operation temperature range 0~ + 50 ℃
• Probe contact temperature range -15~ 60 ℃
• Protection Rating IP52
• Powered by 2 AAA batteries
