Overview

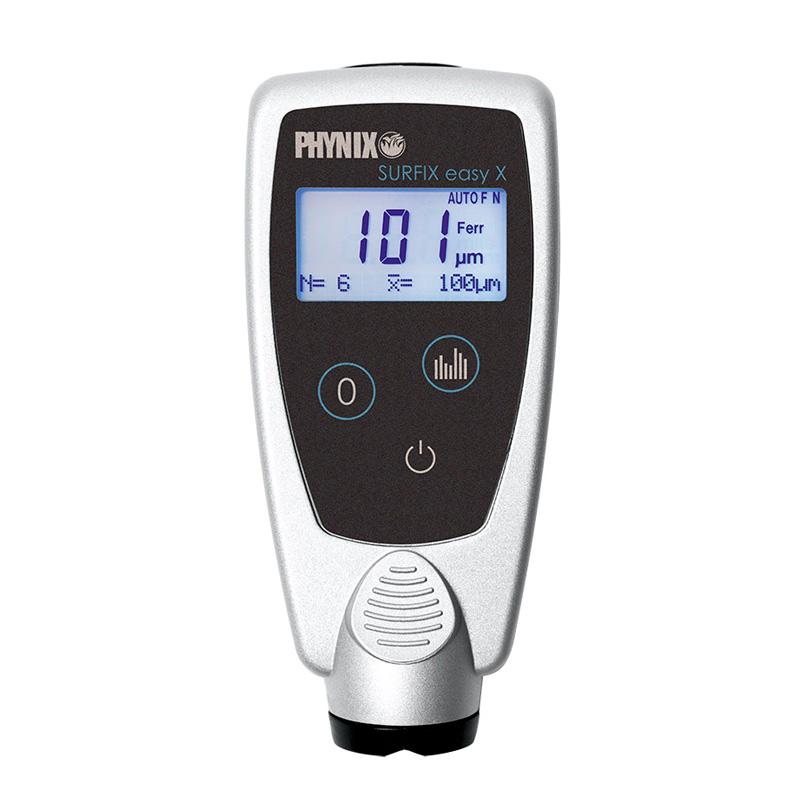

The German PHYNIX Surfix Easy x I-FN HR dual-use film thickness gauge is a dual-function Coating thickness gauge with measurement Film thickness values up to 3000 μm. It is a Portable thickness gauge with built-in probe type. Suitable for daily operations as well as demanding laboratory measurements, this series is suitable for customers who want a simple way to measure coating thickness but need statistical evaluation, Abrasion Resistance measurement and high production mass. The one-click calibrate function can be used to perform difficult measurement tasks, and the built-in online statistics quickly display the mean and Standard Deviation as well as the maximum and minimum measurement values.
Features
1. No calibrated measurement: just open and measurement
2. Backlit display is easy to read even in dark environments
3. "Zero" (single point calibrated) for precise measurements on flat, rough and curved surfaces
4. Steel/non-ferrous metal measurement by automatic identification of base materials
5. Online statistics (quantity, mean, standard deviation, MIN Minimum, MAX Maximum)
6. Larger landing zones to ensure safe positioning
7. Sound signal when recording readings
8. Switchabel units µm/mils
9. Manufacturer Test Certificate
10.2 year warranty
Principle
Two proven Film thickness measurement methods are used: Magnetic and eddy current (DIN EN ISO 2178 and 2360). The FN type uses both methods and the selection is done automatically when placing the Probe on the measurement object. Both provide the highest accuracy, even in the case of thin coatings, whether on steel or non-ferrous metals.
Applications
In paints shops, for paints and powder coatings technology, for automotive evaluation and automotive workshops, in steel construction, automotive manufacturing and shipbuilding, in the loading area, in the production process, final inspection and mass assurance, in the laboratory
Standards
DIN、ISO、ASTM、BS
Steps
Step 1 Turn on the device
2. Place the Probe on the measurement object
3. Automatic identification of basic materials
4. Carry out measurements
5. View statistics (quantity, mean, standard deviation, MIN Minimum, MAX Maximum)
Notice
• Minimum measurement surface: 10x10mm
• Minimum radius of curvature: convex 5mm; concave 50mm
• Thinnest substrate: 0.5mm (F); 0.05mm (N)
• operating temperature: 0~ + 50 ℃
• Protection Rating: IP52
• Probe contact temperature: -15~ 60 ℃
