Overview

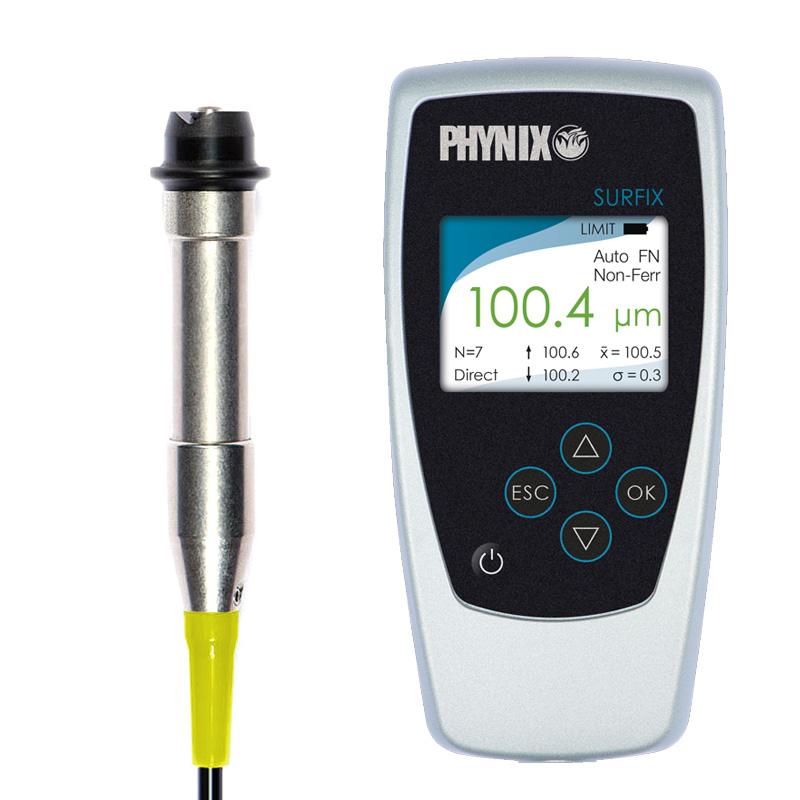

The PHYNIX Surfix SX-N1.5 Coating thickness gauge is a professional device using the eddy Current measurement principle with a high-resolution color graphic display and USB interface. The device supports multi-language operation, the internal memory can store up to 2,000 measurements, and the data can be transferred to Excel through the PHYNIX.connect software. Provides a split Probe design to ensure measurement flexibility and accuracy.
Features
1. High resolution color graphics display
2. USB 2.0 interface
3. Automatic identification of basic materials
4. Data storage can store up to 2,000 measurements
5. Online statistics function
6. Intuitive menu guidance
7. Optional High Temperature Probe supports surface measurement up to 300 ° C
8. Equipped with PC software
9.2 year warranty
Principle
The PHYNIX Surfix SX-N1.5 Coating thickness gauge uses the eddy Current measurement principle to generate electromagnetic fields through Probe, and accurately measure coating thickness according to the effect of coating thickness on electromagnetic fields. The device automatically recognizes the type of basic material to ensure measurement accuracy.
Applications
Eletroplating industry, painting industry, automotive industry, chemical industry, aeronautical engineering, shipbuilding industry, research laboratories and universities, workshops, consultants and appraisers
Standards
DIN、ISO、ASTM、BS
Steps
1. Power on and select the operating language
2. Select the measurement mode through the menu
3. Place the Probe vertically on the surface to be tested
4. Read the measurement results on the display
5. Use the statistics function to view measurement data
6. Connect the computer to transfer data through the USB interface
Notice
• Ensure the measurement surface is clean and drying
• Probe vertical contact with measurement surface
• Avoid use in strong electromagnetic interference environments
• Note Probe contact temperature range: Standard Probe -15 ℃ to + 60 ℃, High Temperature Probe optional -15 ℃ to 300 ℃
Periodically calibrated to ensure measurement accuracy
• Powered by the specified type of battery
• Avoid high temperature and high humidity environment during storage
