Overview

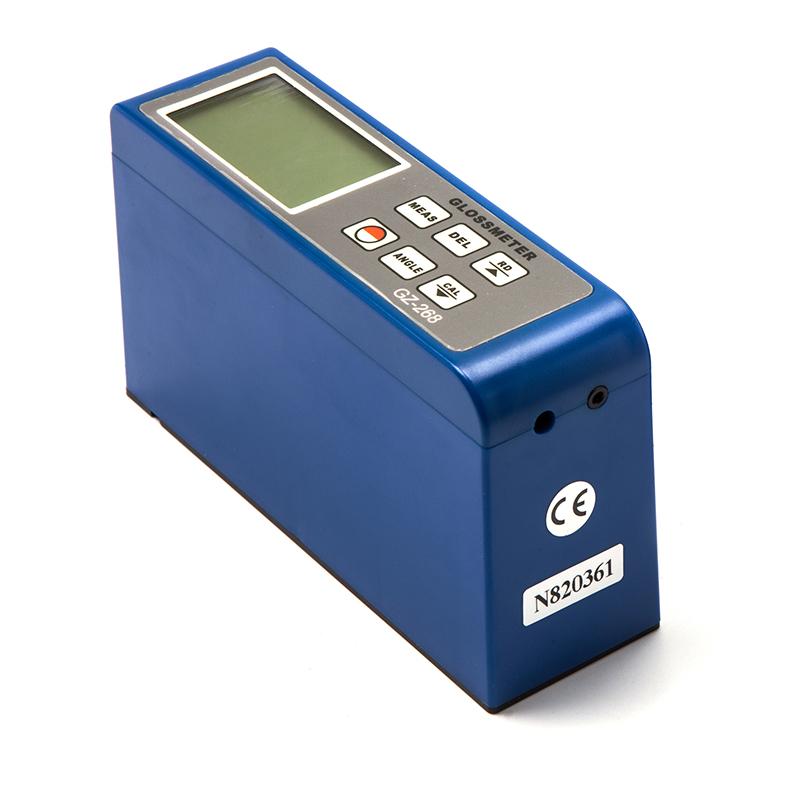

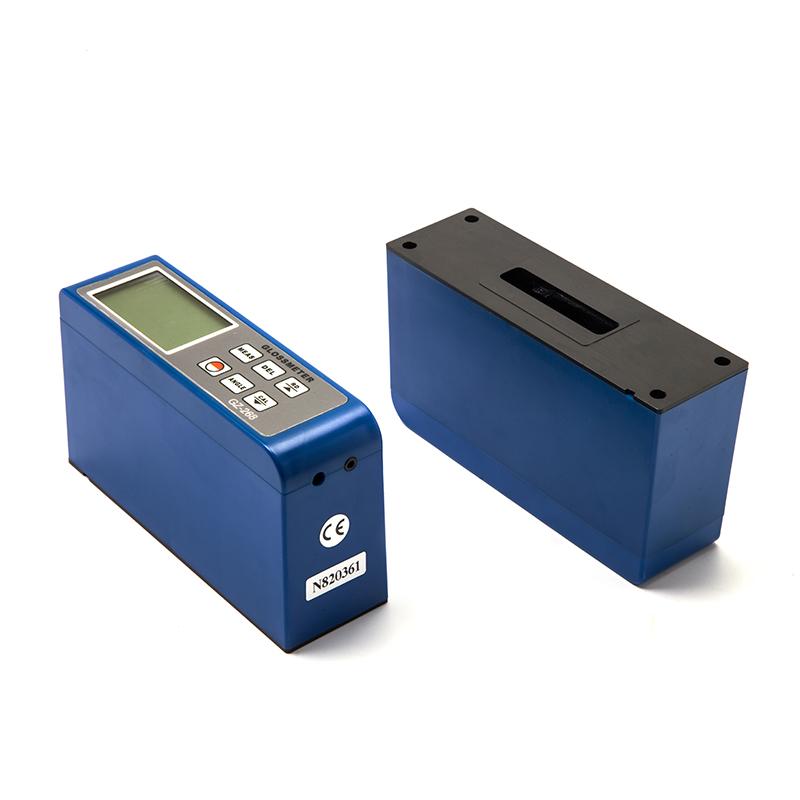

The HBO GZ-268 Glossiness Meter is a precision and lightweight Portable measuring instrument with intelligent design for fast and accurate measurement of gloss on a wide range of material surfaces, widely used in industrial quality control.
Features
1. Precision and lightweight shape, easy to carry
2. auto calibration, no need for manual adjustment
3. Intelligent design, fast measurement
4. Accurate measurement, good repeability
254 sets of data can be stored
6. Built-in rechargeable lithium-ion battery
7. Backlit display, easy to use in dark rays of light environment
8. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC
9. Provide Bluetooth data output selection
Principle
The Glossiness Meter assesses gloss by measuring the reflection ability of the material surface against rays of light, using a multi-angle measurement technique (20 °/60 °/85 °), which detects the reflected light intensity by a photoelectric Sensor and converts it to gloss unit (GU) values.
Applications
Floor maintenance, surface cleaning quality control, stone gloss measurement, tile gloss measurement, paint spray inspection, paints quality control, ink quality control, polished metal surface quality control, paints protective layer, wax film, automotive body paints inspection, plastic molded products inspection, detergent, washer, masonry industry, building exterior evaluation
Standards
ASTMD-523、ASTMD1455、ASTM C346、ASTMC584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB 8807、JJG 696-2002
Steps
1. Power on the instrument
2. Instrument auto calibration

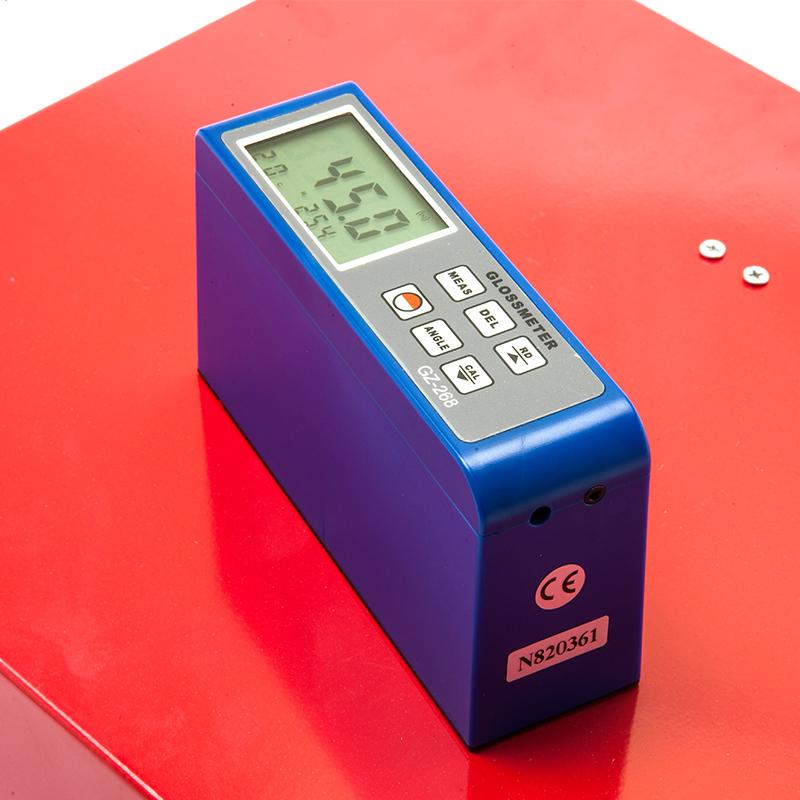

3. Align the measurement port to the surface to be measured
4. Choose the right Measurement Angles (20 °/60 °/85 °)
5. Press the measurement button for measurement
6. Read the gloss value on the display
7. Data is automatically stored or exported through the interface
Notice
• The operation temperature range is 0~ 40 ℃, beyond the range may affect the measurement accuracy
• relative humidity should be less than 85%
• Make sure the instrument has auto calibration before measurement
• Keep the measurement port in close contact with the surface to be measured during measurement
• Avoid use in strong electromagnetic interference environments
• Charge regularly to ensure the normal operation of the battery
• Measuring Area size is 7 * 14mm, make sure the area to be measured is large enough
