Overview

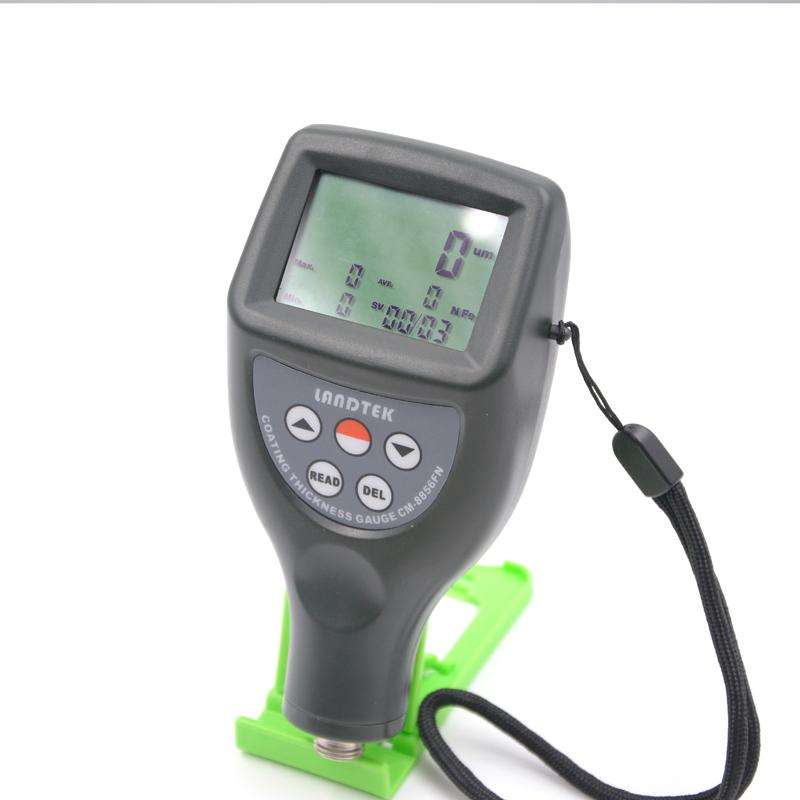

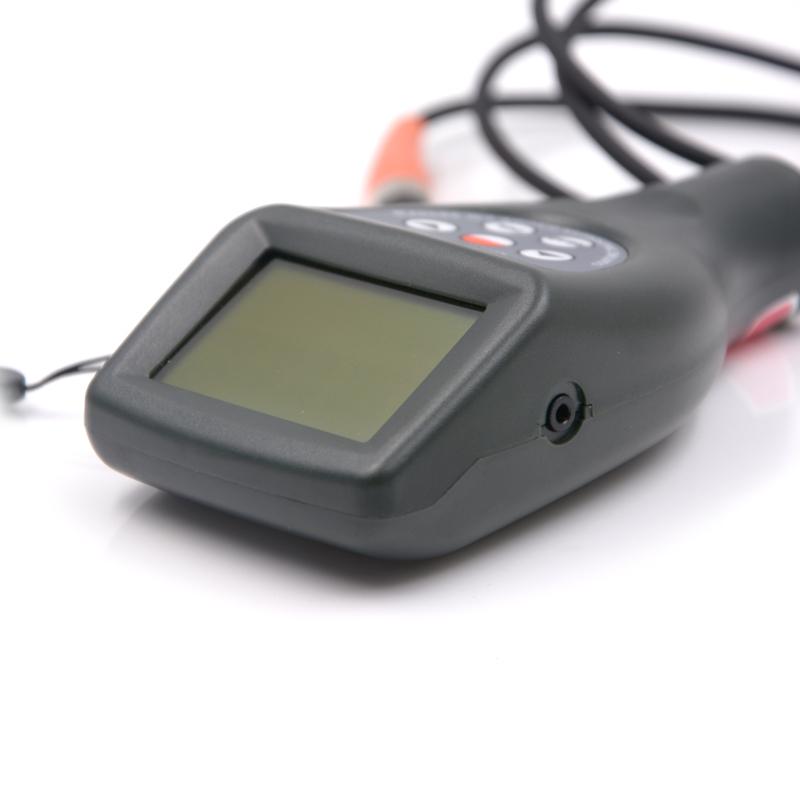

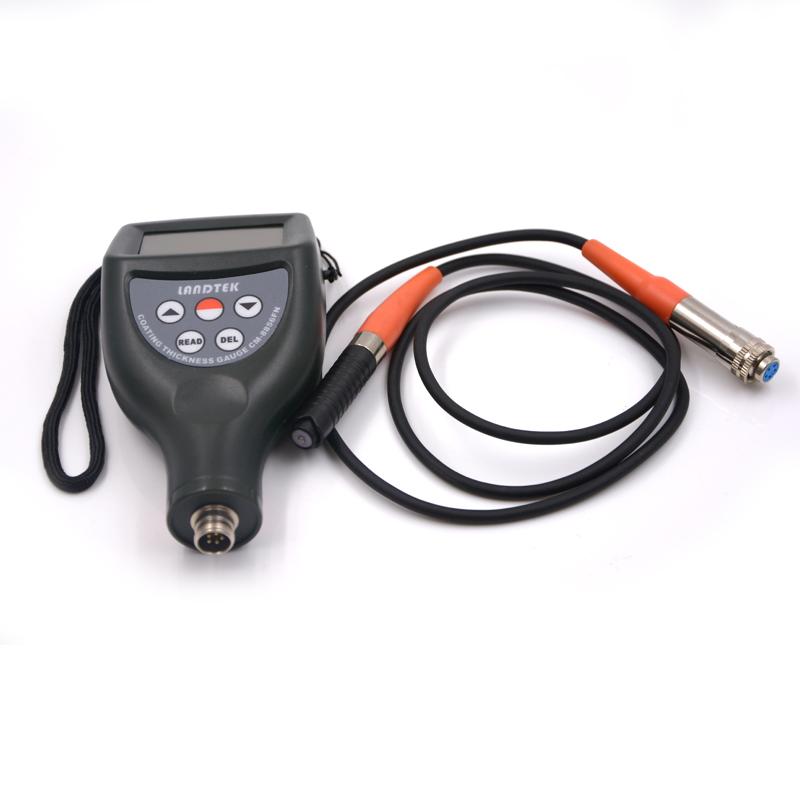

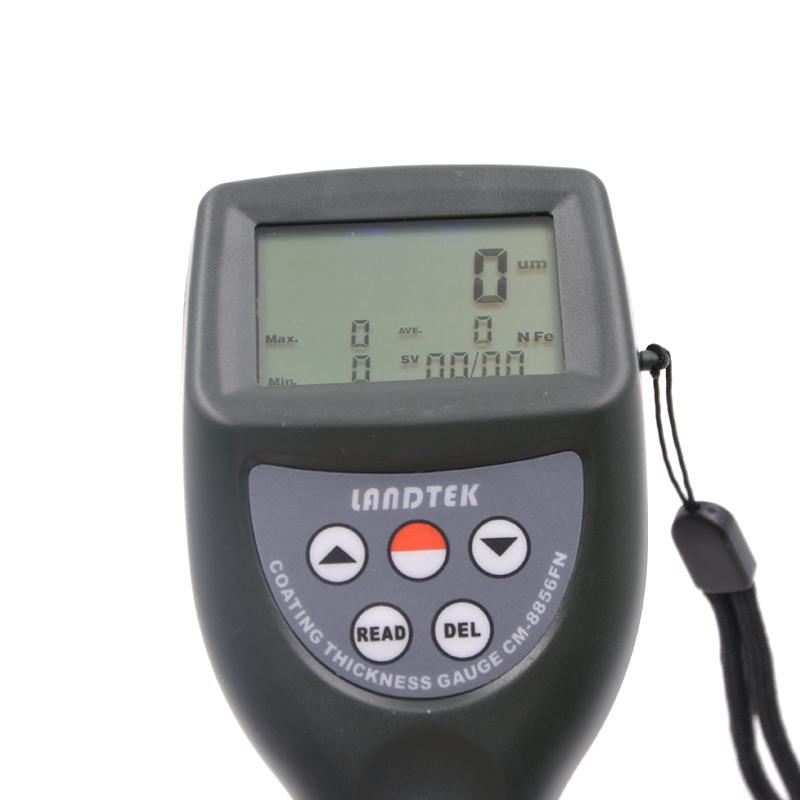

The LANDTEK CM8856 surface platings thickness gauge is a split Portable thickness gauge. It adopts an external Probe design to automatically identify the substrate and measure magnetic and nonmagnetic metal substrates at the same time. The thickness measurement range is 0~ 1250 microns, the measurement is accurate, stable and reliable, and it is easy to carry. It is suitable for engineering sites and laboratories. It can quickly, non-damage and precise measurement of coating and platings thickness.
Features
1. Can store 99 sets of measurement data, with statistical function (average, MAX Maximum, MIN Minimum)
2. Iron-based and non-iron-based dual-use thickness gauges
3. Single and Continuous Measurement modes available
4. Metric/Imperial Unit Conversion
5. With manual shutdown, automatic shutdown and undervoltage prompt functions
6. Automatically remember the calibrated value and automatically identify the material of the tested substrate
7. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
8. Optional RS232C software and cable to communicate with PC for data collection, processing, analysis and printing
9. Optional configuration Bluetooth data output
10. Integral Instrument Suitable for One Hand Operation, Large Probe Design Stability, Accurate Results and Strong Repeatability
11. Wear-resistant hard metal probe spring guide sleeve Probe, suitable for hard or rough surfaces, ensuring tight force and stable sampling values
Principle
Using magnetic Induction and eddy Current principles, magnetic Sensor measurement of steel, iron and other ferromagnetic metal substrates on the thickness of non-ferrous magnetic coatings, platings; eddy current Sensor measurement of copper, aluminum, zinc, tin and other substrates on the thickness of the nonconductive coating layer.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields
Steps
1. Power on the instrument
2. Select Single or Continuous Measurement mode
3. Probe contact with the measured surface for measurement
4. Read measurement data and store (optional)
5. Switch between male and imperial systems through unit conversion function
6. Optional connection to PC or Bluetooth for data transmission and processing
7. Manual shutdown or wait for automatic shutdown after use
Notice
* Operating temperature range is 0~ 40 ℃, relative humidity 10~ 90% RH, avoid using in an environment beyond the range
Make sure that the thinnest thickness of the substrate is not less than 0.3mm.
* Pay attention to the minimum curvature radius requirements when measuring: iron base convex 1.5mm/concave 25mm, non-iron base convex 3mm/concave 50mm
* The minimum measurement surface is φ 6mm, ensuring that the Probe fully covers the measurement area
Check the battery level regularly and replace it in time when the voltage is low
* Avoid prolonged use of Probe on extremely rough surfaces to prevent abrasion
* Automatic recollection of calibrated values without frequent Manual calibration
* The buzzer does not sound during continuous measurement, pay attention to the display data
