Overview

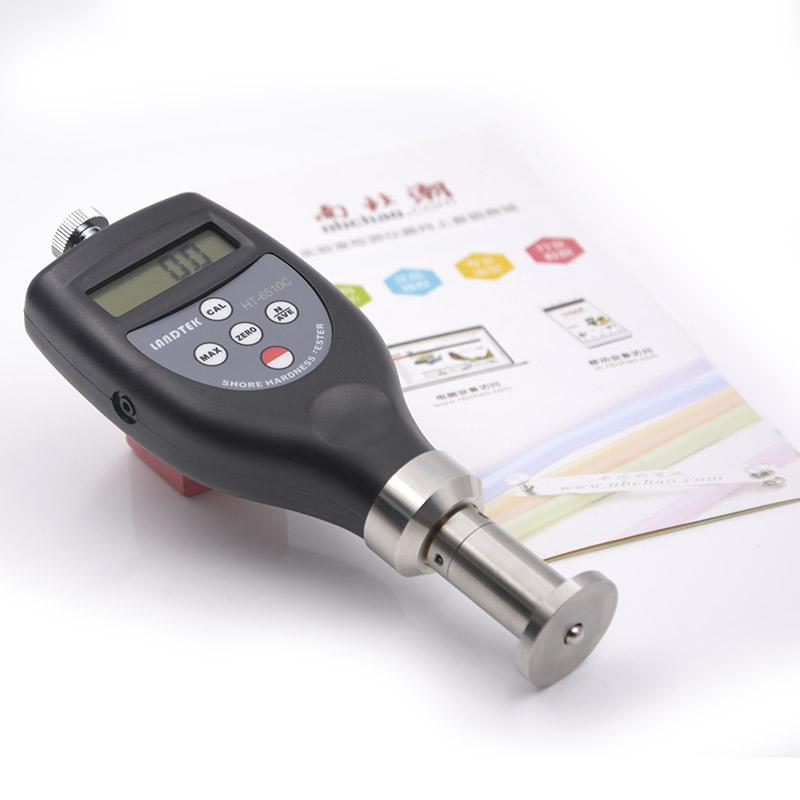

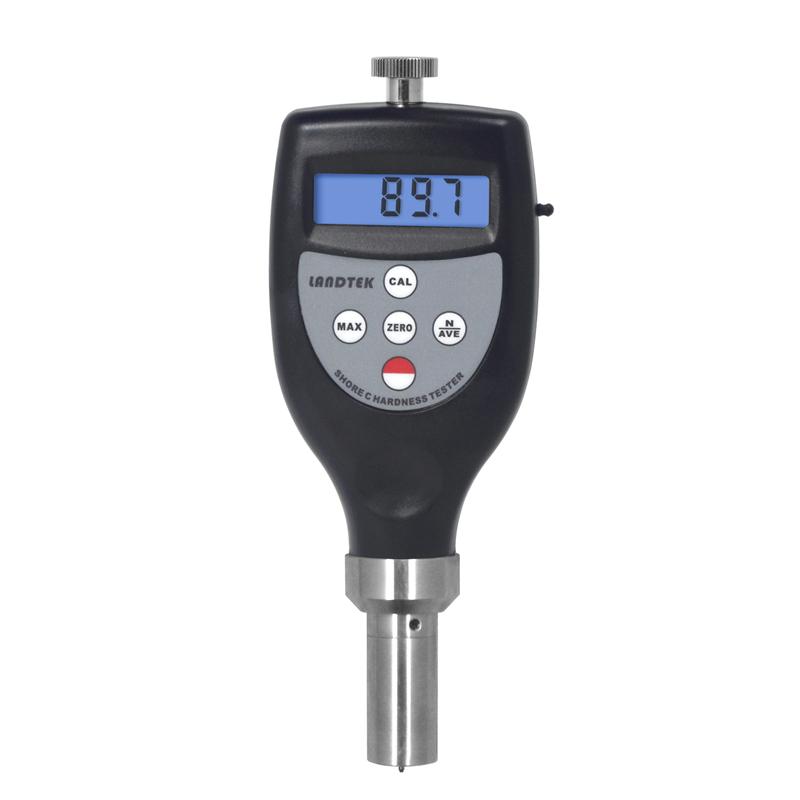

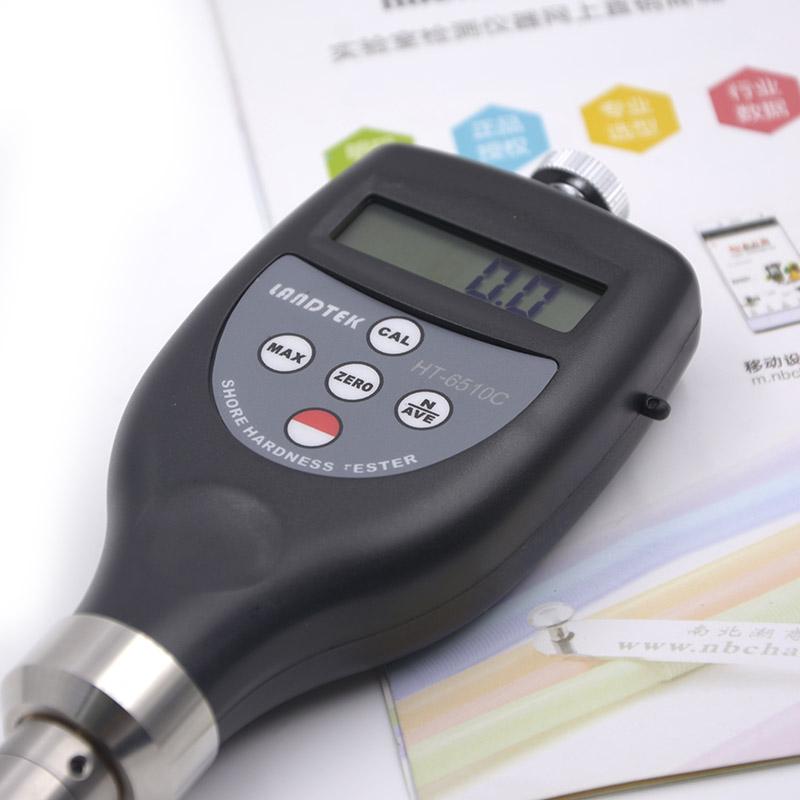

The LANDTEK HT6510A Shore Shore Durometer is a Handheld portable hardness gauge with a small LCD screen for the measurement of Closer Hardness of materials. Hardness measurement of soft rubber, soft vulcanized rubber, natural rubber, NBR, thermal plasticity, plastics, thermal plasticity resilience, waxes, felts, leather products, etc.
Features
1. Average calculation function
2. MAX Maximum Latch Function
3. Low voltage alarm indication function
4. Use USB data cable output and RS-232 data cable output to communicate with PC
5. Provide Bluetooth data output selection
6. Adopt professional technologies such as computer technology and digital filtering technology
7. Numbers are displayed, ignoring the difference
Principle
The HT6510A model uses a 0.79 truncated cone crimp to measure the material's Crane Hardness value and directly display the Hardness reading through digital display technology.
Applications
Soft rubber, soft vulcanized rubber, natural rubber, NBR, thermal plasticity, plastics, thermal plasticity resilience, waxes, felt products, leather products
Standards
GB/T 531-1999、GB/T 2411-80、DIN 53505、ISO 868、ISO 7619、ASTMD 2240、JISK7215
Steps
1. Manual shutdown: Press the multi-function button until the monitor shows OFF, and release the button to turn off the power.
2. Automatic shutdown: If you do not operate or press any button within 60 seconds, it will automatically shut down.
Notice
* Measurement range is 20~ 90A
* measurement error ≤ +/- 1H
* Ambient Temperature 0~ 50 ℃
* Environmental humidity < 80% RH
* Powered by 4 AA batteries
* Pay attention to the low voltage prompt function
