Overview

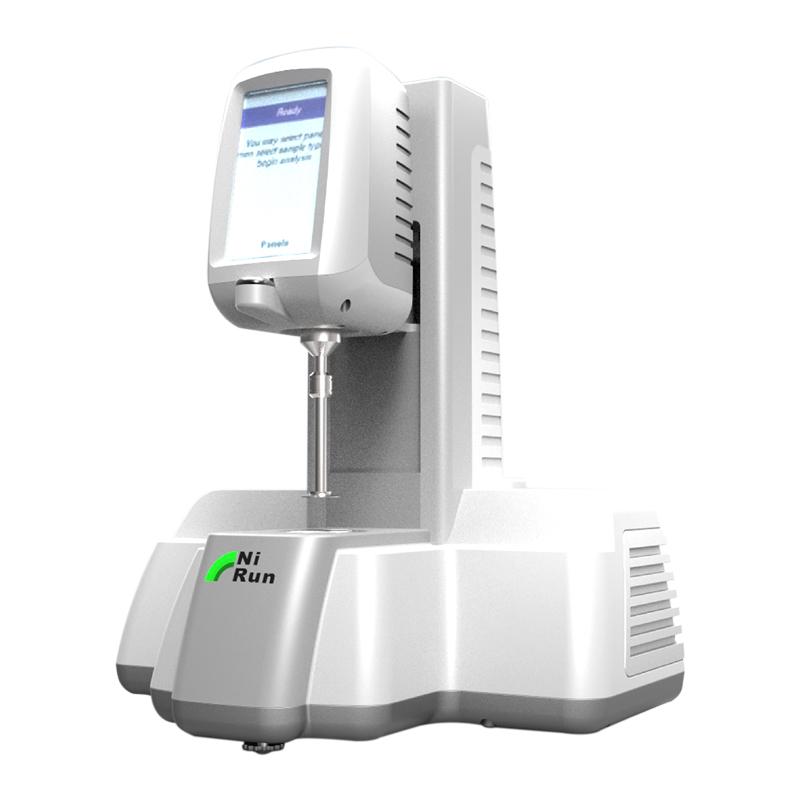

The NIRUN NTV-CAP3H cone plate Rheometer is a professional fluid viscosity measurement instrument with a 7-inch wide Touchscreen and ARM chip processor for easy operation and fast data processing. The instrument supports multiple viscosity units and measurement modes for accurate measurement of medium to high viscosity fluids.
Features
1.7 inch wide Touchscreen, easy to operate, rich display information
2. Optional DV data collection and program control software can measure rheological characteristics, and the screen directly displays rheological Linear dispersion
3. Display shear rate and shear stress metrics
4. Anti-static shell, automatic lifting design
5. Built-in PT100 Temperature Probe
6. ARM chip processor, faster data processing speed
7. Durable new bearing design
8. Powerful human-machine interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission
10. Support external U disk data storage; single point, continuous, timing three storage methods are optional
11. Password protection temperature and viscosity correction factor, allowing users to correct themselves
12. Support stepless speed measurement viscosity, easy to select test conditions
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Any exchange of various viscosity units
15. Interchange of a variety of user-friendly operation styles
16. Random comes with powerful operation wizard help
17. The viscosity value shows continuous change
18. There is an alarm sound beyond the measurement range
19. Computer full-scale linear correction
20. AC Power Adapter 100V-240V, good anti-interference
Principle
The cone plate Rheometer calculates fluid viscosity by swirling/spinning the rotor through the sample, measuring shear rate and shear stress. The built-in PT100 temperature Probe and ARM processor ensure fast and accurate data processing, support real-time display of rheological Linear dispersion and multiple viscosity unit conversions.
Applications
Medium viscosity fluids: hot-melt adhesives, coatings, Resin, starch, silk screen inks, surface preparation, organic solvents, frost, food, gel, chewing gum, plastic sol, etc.; High viscosity fluids: Adhesive, gel, sealing agent, asphalt, Printing ink, chocolate, tar, molasses, paste, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Steps
1. Connect the power supply and turn it on, use Touchscreen to select the operation mode
2. Install the appropriate rotor and select the rotor number according to the sample viscosity
3. Set the temperature range (5 ℃~ 250 ℃) and speed (5-1000rpm)
4. Load the sample to ensure that the sample volume meets the rotor requirements
5. Start measurement, observe the viscosity value and rheological Linear dispersion displayed on the screen
6. Save data as needed, support single point, continuous or timing mode
7. After the measurement is completed, clean the rotor and shut down
Notice
• When selecting the rotor, refer to the rotor parameter table to ensure that the sample volume and viscosity range match
• Check the temperature setting before measurement to avoid exceeding the range of 5 ° C to 250 ° C
• Keep passwords properly when using password protection to prevent unauthorized modification
• Pay attention to the alarm prompt when exceeding the measurement range, and adjust the test conditions in time
Periodically calibrate instruments to ensure measurement accuracy +/- 2% (F. S) and temperature accuracy +/- 0.1 ° C
• Avoid damage when cleaning and maintaining the rotor to extend its service life
