Overview

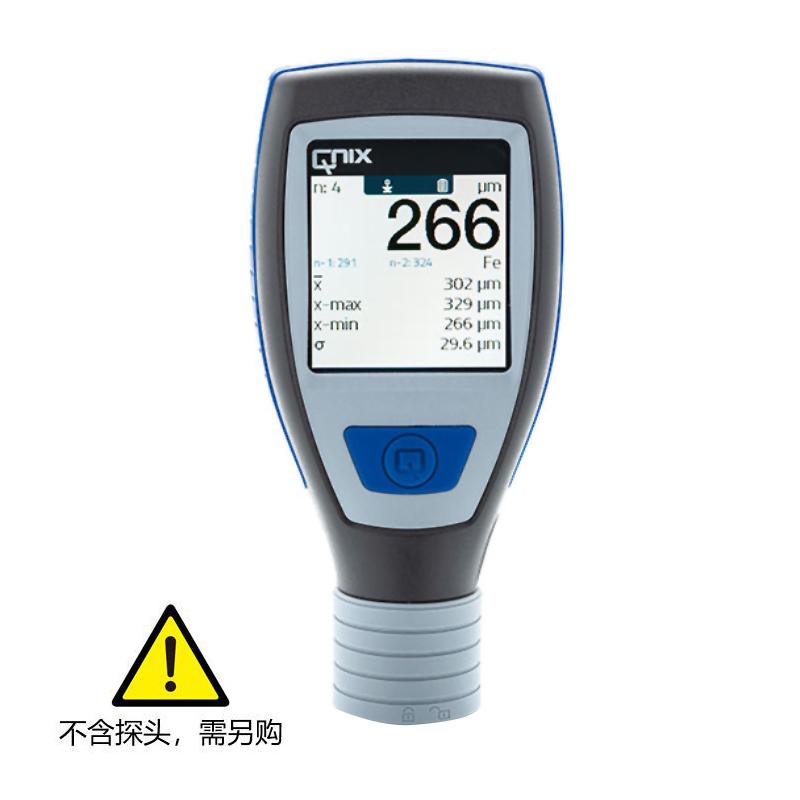

The QNix 5500 Coating thickness gauge is a convenient, durable, and measurement-ready instrument for industrial painting, engineering coatings, severe corrosion protection, and vehicle evaluation. It features a Modular design, a user-selectable Probe and cable, and a large 2-inch color LCD display with auto-flip for easy reading of measurements in harsh lighting conditions.
Features
1. Modular design, users can choose their own Probe and cable
2.2-Inch large color LCD display with auto-flip function for easy reading in harsh lighting conditions
3. Provide statistical information display, including Average, Standard Deviation, MAX Maximum and MIN Minimum
4. Large Probe seat and low center of gravity design to ensure smooth measurement and avoid abnormal values
5. Probe wire can instantly transform the instrument into a split machine, which is convenient for measurement of small workpieces or angled areas
6. Right Angle Connector Can Play the Role of Right Angle Probe, Suitable for Pipe-type Narrow Spaces
7. One-click operation, quick and reliable adjustment of the base substrate or zero board
8. A variety of Probes are available, ranging from 1.25-3 mm, 1.25-5 mm, divided into Fe, NFe, Fe/NFe dual-use Probes
Principle
The QNix 5500 Coating thickness gauge uses magnetic Induction and eddy Current principles for measurement, depending on the selected Probe type.
Applications
Industrial painting, engineering coatings, severe corrosion protection, vehicle evaluation
Standards
DIN EN ISO 2808、DIN 50981、DIN 50984、ISO 2178、BS 5411（3＆11）、BS 3900-C5、ASTM B 499、ISO 2360、ASTM D 1400、ASTM D 1186、ASTM D 7091
Steps
Step 1 Power on
2. Adjust the base substrate or zero board (optional)
3. Probe placed for measurement
4. Read measurements on the display
Notice
• Remember to disconnect the power supply when changing the Probe
• Select the appropriate Probe for the application to ensure accuracy and full range effectiveness
