JINGHUAYIQI JH-HDY-A paper Thickness Gauge 0.01mm accuracy paper Cardboard thickness Tester

Name: JINGHUAYIQI JH-HDY-A paper Thickness Gauge 0.01mm accuracy paper Cardboard thickness Tester
Brand: JingHuaYiQi
SKU: NB028453
Price: 377.0 USD
Availability: InStock

$ 377.00Ex works

Measurement range 0-6mm, accuracy of 0.01mm, contact pressure 100 +/- 5kpa, with digital display function and stable parallelism measurement, suitable for a variety of materials Film thickness detection.

Model

Get Quote

Category : Paperboard Thickness Gauge

Brand : JingHuaYiQi

SKU : NB028453

Service :The delivery and service By NBCLab.Com

Overview

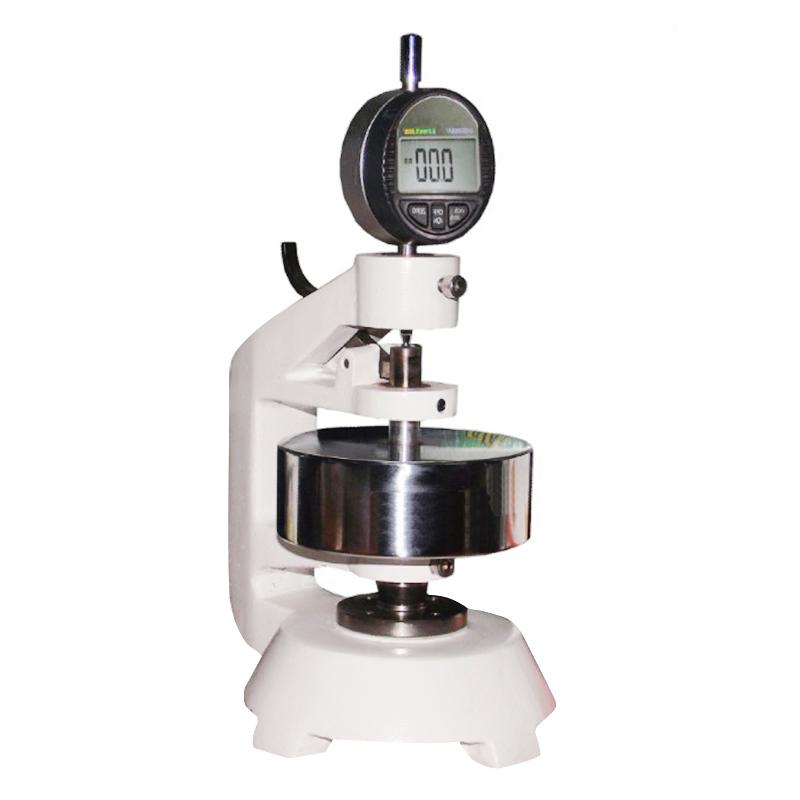

Paper Thickness gauge JH-HDY-A (0.01) is a testing instrument specially developed and produced by JINGHUAYIQI brand, which is used for the detection of film thickness of paper, Cardboard and sheet materials with certain tightness characteristics. The instrument is a testing tool required by paper production enterprises, Encasement production enterprises and mass Quality control supervision departments.

Features

1.Up to 0.01mm measurement accuracy 2. The digital display shows clear and intuitive readings 3. The contact pressure is stable at 100 +/- 5kpa 4. Parallelism of measurement plane ≤ 0.035mm 5. Strong environmental adaptability, temperature (20 +/- 10) ℃, humidity < 85%

Principle

Paper Thickness gauge through the measurement head in contact with the sample, in the specified contact area of 200 +/- 5mm ² and contact pressure of 100 +/- 5kpa conditions, accurate measurement of paper, Cardboard and other sheet material Film thickness value, and through the digital display device directly display measurement results.

Standards

QB/T 1035、QB/T 451.3、QB/T 1055、ISO 438、ISO 534

Notice

• Make sure the instrument is on a horizontal table before use • Keep the measurement surface clean and pollution-free • Avoid use in environments beyond the specified temperature and humidity range Periodically calibrate instruments to ensure measurement accuracy • Handle with care to avoid violent vibration

measurement Range
0-6mm
measurement accuracy
0.01mm
reading display
Digital display (pointer optional)
Indication Error
0.05%
contact area
200±5mm²
contact pressure
100±5kPa
parallelism
≤0.035mm
weight
About 2kg
Operating environment
Temperature (20 +/- 10) ℃, humidity < 85%

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
