Overview

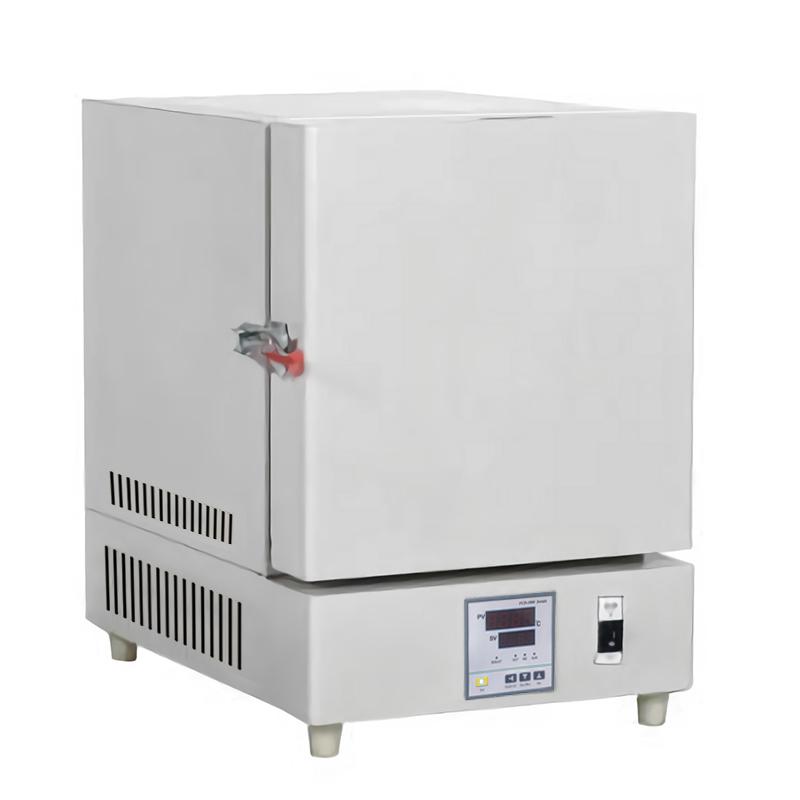

The BENTING CSX2-4-10 resistance furnace is a cycle-operated heater with a refractory brick muffle furnace design and high cost performance. It is suitable for chemical analysis, physical determination and heat treatment heating of small steel parts in laboratories such as industrial and mining enterprises and R & D institutions.
Features
1. The liner is made of refractory bricks, and the equipment is cost-effective
2. Intelligent controller, good temperature control effect; a large number of exports to European countries
3. Digital one-screen display, temperature, time and other parameters
4. The product is durable, and the parameters are presented without reservation
5. Streamlined luxury machine shape, electrostatic spray box
6. The furnace body is made of refractory brick material, and the thermal insulation performance is good
7. LED large-screen LCD display displays various set parameters and measured parameters
8. Microcomputer P.I.D temperature controller with timing function for accurate and reliable temperature control
9. Upgraded sound and light alarm environment scanning microcomputer chip, powerful data processing function
10. With over-temperature alarm, regular shutdown, call recovery, parameter encryption, temperature correction and other functions
11. Power-off recovery function, automatically run according to the original setting program after the power is restored
12. Comprehensive safety protection design to achieve triple safety protection for personnel, samples, and equipment
Principle
The microcomputer P.I.D temperature controller is used to achieve accurate temperature control and work through resistance heating. The controller has over-temperature deviation protection, timing function and data processing ability to ensure stable and reliable heating process.
Applications
Industrial and mining enterprises, R & D institutions, chemical analysis, physical measurement, heat treatment of small steel parts
Steps
1. Connect the AC220V 50Hz power supply
2. Set the temperature parameters through the LCD LCD screen (RT + 50~ 1000 ℃)
3. Set Timer Range 1~ 9999min
Step 4 Start the heating program
5. Manual door opening operation
6. The equipment automatically runs to the set time or temperature
Notice
• Working Ambient Temperature should be kept within the range of 5 ℃~ 40 ℃
• Pay attention to over-temperature alarm and independent over-lift preventer prompt
• Check whether the Sensor function is normal before use
• Pay attention to the overcurrent trip protection function
• The device has parameter encryption function, and the setting parameters need to be properly kept
• When calling again after power failure, pay attention to the automatic recovery of the equipment
