Overview

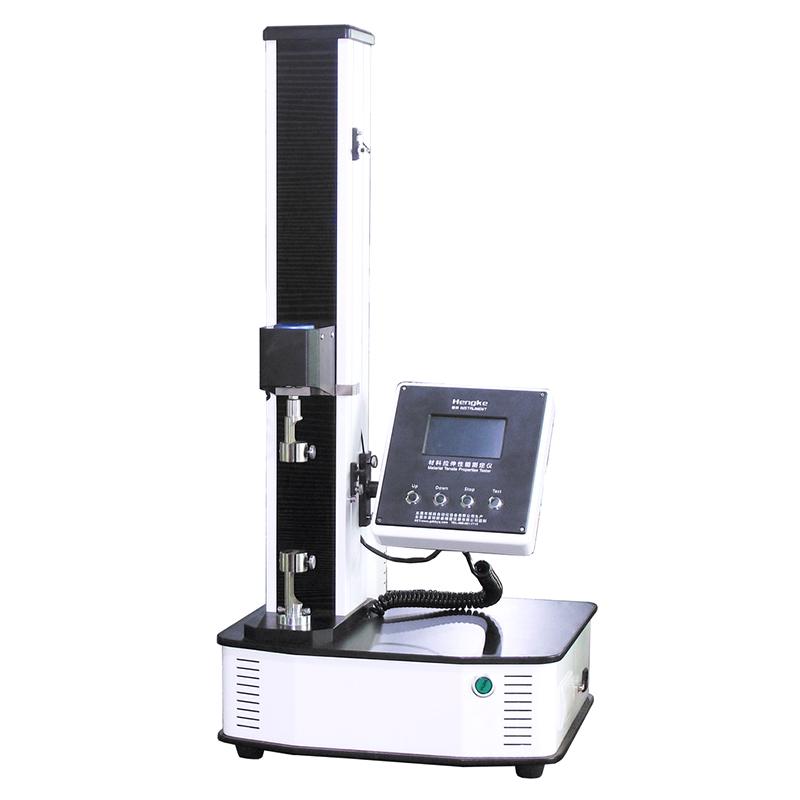

Material Tensile strength tester (vertical high precision model) IMT-Tensile 02 is the IMT brand High Accuracy testing equipment, mainly used to detect the paper Tensile Strength, elongation, fracture length, Tensile Energy Absorption, tensile index, Tensile Energy Absorption index and other mechanical properties.
Features
1. Power resolution up to 1/100000, Precision +/- 0.1% (20~ 100% FS)
2. Data analysis sampling Frequency 400 times/second, Indication Error ≤ +/- 0.5%
3. Displacement resolution ≤ 0.1mm, force resolution 0.01N
4. Stretching speed 1~ 500mm/min stepless variable speed, return speed 1~ 500mm/min stepless variable speed
5. Adopt Taiwan single-column structure precision ball screw
6.5.0-Inch Touchscreen operating platform, supports Chinese and English conversion
7. Rapid sensor protection device PROTEC SYSTEM
8. Modular integrated thermal printer, automatically prints data
9. The front cover sheet metal adopts the wire cutting process Slotting, and the heat dissipation channel is reserved
10. High Accuracy Distance Limit Switch External, Instant Adjustable
Principle
The measuring instrument applies the tensile force to the sample through the precision ball screw drive system, uses the High Accuracy Sensor to collect the force value and displacement data in real time, and analyzes and calculates the sampling Frequency of 400 times/second, and finally obtains the mechanical properties parameters such as anti-tension and elongation.
Applications
Paper detection
Standards
GB/T453、GB/T 12914、ISO 1924.2
Steps
1. Prepare samples of size 1-25mm
2. Set test parameters through 5.0-inch Touchscreen
3. Adjust the limit switch according to material requirements
4. Start the test, and the equipment automatically completes the stretching process
5. View test results and Linear dispersion analysis
6. Use the thermal printer to output the test report
Notice
• Specimen size should be within the range of 1-25mm
Adjust the position of the limit switch according to the material characteristics before testing
• Ensure that the heat dissipation channel of the equipment is smooth
The force range should be between 0.1 and 300N
• Measurement range of elongation 45~ 260mm
• Test speed accuracy needs to be controlled within the range of (1~ 10) mm/min; +/- 0.1mm/min
