IMT-203E Ring Test Center Paper Cardboard Compressive Strength Tester

Name: IMT-203E Ring Test Center Paper Cardboard Compressive Strength Tester
Brand: IMT
SKU: NB029189

Please contact customer service

6 tests, including Ring Crush Test and Edge Crush Test, can be performed, with a clamping thickness range of 0.1 to 1.0mm, and is equipped with a master disk and thirteen sub-disks to meet a variety of testing requirements.

Model

Get Quote

Category : Compression Strength Tester

Brand : IMT

SKU : NB029189

Service :The delivery and service By NBCLab.Com

Overview

IMT-203E Ring Test Center Plate is a special accessory for paper and Cardboard Compressive Strength Tester, which is used to detect 6 test items such as Ring Crush Test RCT, Cardboard Edge Crush Test ECT, Corrugated Board adhesive strength PAT, Corrugated Board Flat Crush Test FCT, Corrugated Base Paper CMT and Corrugated Base Paper CCT of paper and Cardboard.

Features

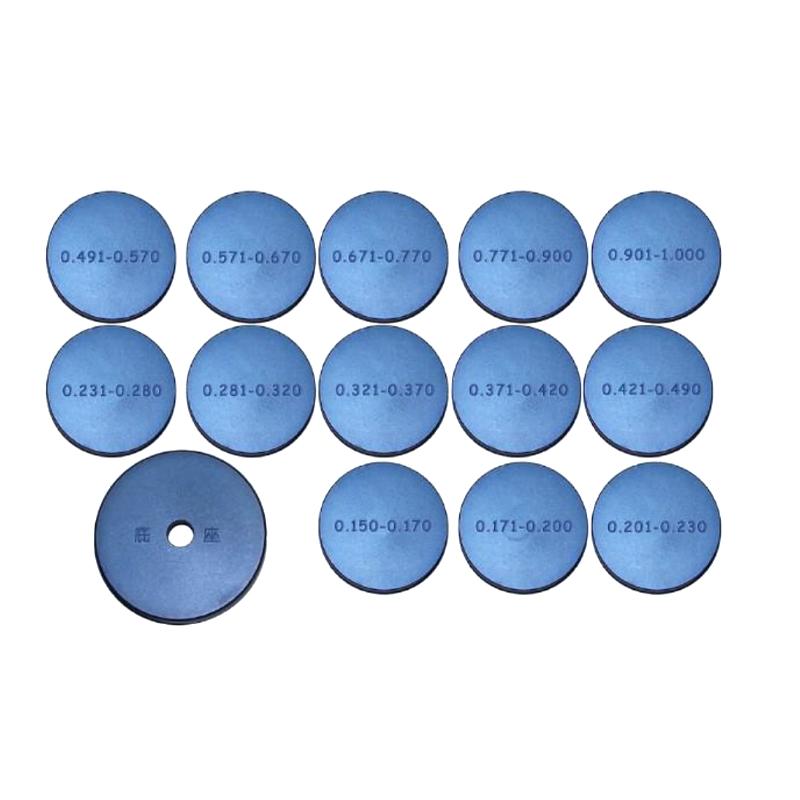

1. Clamping length 152 * 127mm 2. Clamping thickness range 0.1~ 1.0mm 3. Clamping thickness deviation ≤ 0.01mm 4. Center disk configuration: one master disk and thirteen sub-disks 5. Lightweight, only 2kg

Principle

The ring test center plate is used to fix the paper sample through a precise clamping device, and the Compressive Strength Tester applies pressure to the paper and Cardboard to measure their strength performance under different compression states.

Standards

GB/T 2679.8、GB/T 6546、GB/T 6548、GB/T 2679.6、ISO12192

clamping length
152*127mm
Clamping thickness Range
0.1~1.0mm
Clamping thickness deviation
≤0.01mm
Number of center disks
One master plate and thirteen sub plates.
weight
2kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
