Overview

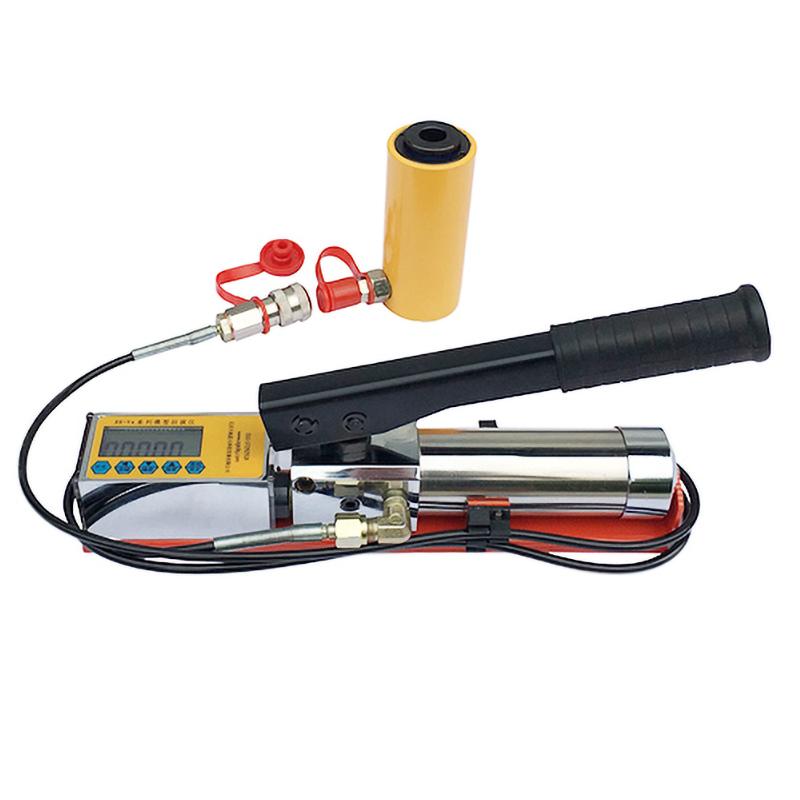

XH-V2 miniature drawing instrument is a testing instrument independently developed by Beijing Tiandi Spark Technology Development Co., Ltd., which is suitable for detecting the pull-out force of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors. It can also be used for Glass curtain wall. On-site pull-out force testing, it is the preferred testing instrument for various Quality control and construction units.
Features

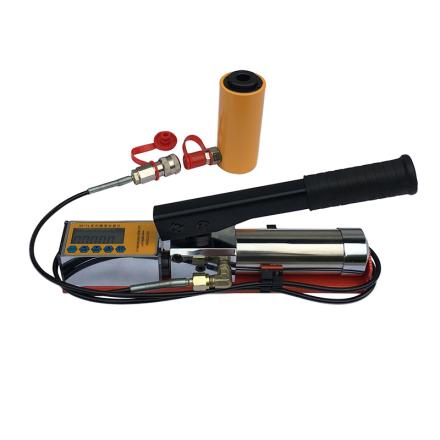

1. Composed of manual pump, hollow hydraulic cylinder, digital pressure gauge, high voltage hose, anchor, tie rod, adapter and portable case, the structure is complete
2. All hydraulic cylinders are designed with hollow self-reset and digital display, which can directly read the force value (KN).
3. With peak hold, storage, reset, backlight, query and automatic shutdown functions
4. Reliable technology, simple operation, suitable for laboratory and field use
Principle
The XH-V2 miniature drawing instrument generates hydraulic pressure through the manual pump, drives the hollow hydraulic cylinder to work, and the digital pressure gauge displays the pulling force value in real time to realize the accurate measurement of the anti-pulling force.
Applications
Bolt Testing, Reinforcement (Plant Rebar) Testing, Expansion Bolt Testing, Chemical Anchor Bolt Testing, Glass Curtain Wall Field Pullout Testing
Standards
GB 50203-2011 "Masonry structure engineering construction mass acceptance", JGJ 145-2013 "concrete structure after anchoring technical regulations"
Steps
1. Connect the manual pump, hydraulic cylinder and digital pressure gauge
2. Install anchors, tie rods and adapters
3. Start the equipment for pull-out resistance testing
4. Read the force value data through the digital pressure gauge
5. Use peak hold, storage, and other functions to record test results
Notice
• Check whether the connection of each part is firm before use
• Ensure that the digital pressure gauge has sufficient power
• Operating Pressure Strictly According to Rated Pressure
• Regular maintenance of equipment
• Pay attention to safe operation practices
