Tiandi Spark XH-V5 miniature drawing instrument, bolt pull-out force detection, hollow self-reset digital display integrated

Name: Tiandi Spark XH-V5 miniature drawing instrument, bolt pull-out force detection, hollow self-reset digital display integrated
Brand: Tiandi Spark
SKU: NB029531
Price: 769.0 USD
Availability: InStock

$ 769.00Ex works

Maximum pull-out force 50kN, center aperture 18mm, hollow self-resetting digital display integrated structure, can directly read the force value, with peak holding, storage, backlight and automatic shutdown functions, simple and reliable operation.

Model

Get Quote

Category : Other Adhesion Testers

Brand : Tiandi Spark

SKU : NB029531

Service :The delivery and service By NBCLab.Com

Overview

XH-V5 miniature pullout instrument is a test instrument independently developed by Beijing Tiandi Spark Technology Development Co., Ltd., which is suitable for detecting the pullout resistance of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors. It can also be used for on-site pullout resistance testing of Glass curtain walls. It is the preferred testing instrument for various Quality control and construction units.

Features

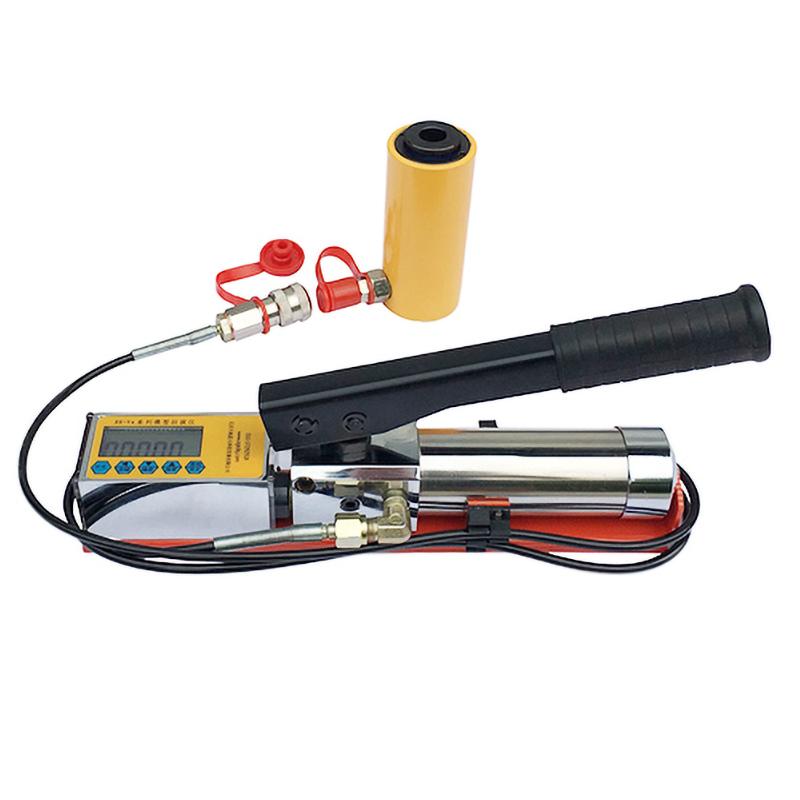

1. Composed of manual pump, hollow hydraulic cylinder, digital pressure gauge, high voltage hose with quick connector, anchor, tie rod, adapter and portable case 2. All hydraulic cylinders are designed with hollow self-reset and digital display 3. Can directly read the force value (KN), and has peak hold, storage, clear, backlight, query and automatic shutdown functions 4. Reliable technology, simple operation, suitable for laboratory and field use

Principle

The XH-V5 miniature drawing instrument generates hydraulic pressure through the manual pump, drives the hollow hydraulic cylinder to work, and the digital pressure gauge displays the drawing force value in real time, so as to realize the detection of the anti-pulling force of the anchor.

Applications

Bolt Testing, Reinforcement (Plant Rebar) Testing, Expansion Bolt Testing, Chemical Anchor Bolt Testing, Glass Curtain Wall Field Pullout Testing

Standards

GB 50203-2011 "Masonry structure engineering construction mass acceptance", JGJ 145-2013 "concrete structure after anchoring technical regulations"

Notice

• This product is guaranteed for three years free of charge. • The company implements a long-term maintenance responsibility system for the products sold

Maximum Operating Pressure
50 MPa
plunger diameter
10mm
Maximum pulling force
50 kN
central aperture
18mm
Piston Travel
50mm
Measurement Range of pressure gauge
0~50 KN
Pressure gauge power supply
4.2V rechargeable battery
resolution
0.001 KN
Indication Error
≤±1%F.S
