LINSHANG LS225-PFS Probe fixed bracket platings thickness Gauge test fixture

Name: LINSHANG LS225-PFS Probe fixed bracket platings thickness Gauge test fixture
Brand: LinShang
SKU: NB029835
Price: 362.0 USD
Availability: InStock

$ 362.00Ex works

Suitable for the measurement of extremely thin platings thickness, can effectively reduce the operation error, especially suitable for the measurement of nails, bolts and other small workpieces, need to be used with multi-point calibrating.

Model

Get Quote

Category : Coating Thickness Gauge

Brand : LinShang

SKU : NB029835

Service :The delivery and service By NBCLab.Com

Overview

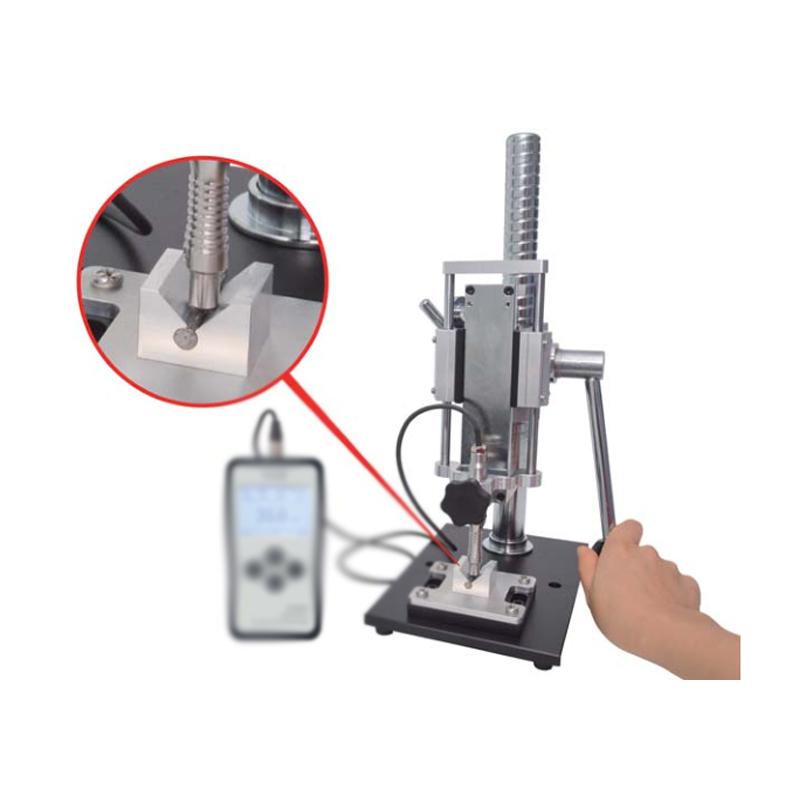

The LINSHANG LS225-PFS Probe Fixture is a test fixture designed for the LS225 platings thickness gauge to meet the demanding accuracy requirements when measuring the thickness of extremely thin platings. The bracket significantly reduces human error and is especially suitable for the measurement of small workpieces such as nails and bolts. The measurement accuracy and Repeatability are improved by fixing the Probe position.

Features

1. Specially designed for LS225 models, with strong compatibility. 2. Effectively reduce human error and improve Measurement accuracy. 3. Especially suitable for the thickness measurement of platings of small workpieces such as nails and bolts. 4. Easy to operate, with Probe can optimize the measurement process.

Principle

The Probe fixing bracket stabilizes the Probe on the surface of the workpiece by mechanical fixing, ensuring that the contact position and pressure of the Probe with the workpiece are consistent during each measurement, thereby reducing fluctuations caused by human factors. When using, it is recommended to remove the black positioning sleeve at the front end of the Probe and perform multi-point calibrating on the non-lame plating standard workpiece to further improve the measurement accuracy.

Steps

1. Adapt the Probe fixing bracket to the LS225 thickness gauge. 2. Remove the small black positioning sleeve on the front end of the Probe (for small workpiece measurement). 3. Multi-point calibrating on standard workpieces without lame plating. 4. Place small workpieces such as nails or bolts under the bracket and fix the Probe for measurement.

Notice

• Be sure to re-calibrate on unlame plated standard workpieces before use. • When measuring small workpieces, it is recommended to remove the black positioning sleeve at the front end of the Probe. • Only compatible with LS225 models, do not use on Miscellaneous equipment. • Avoid excessive pressure during operation to prevent damage to the Probe or workpiece.

adapter host
LS225
