Overview

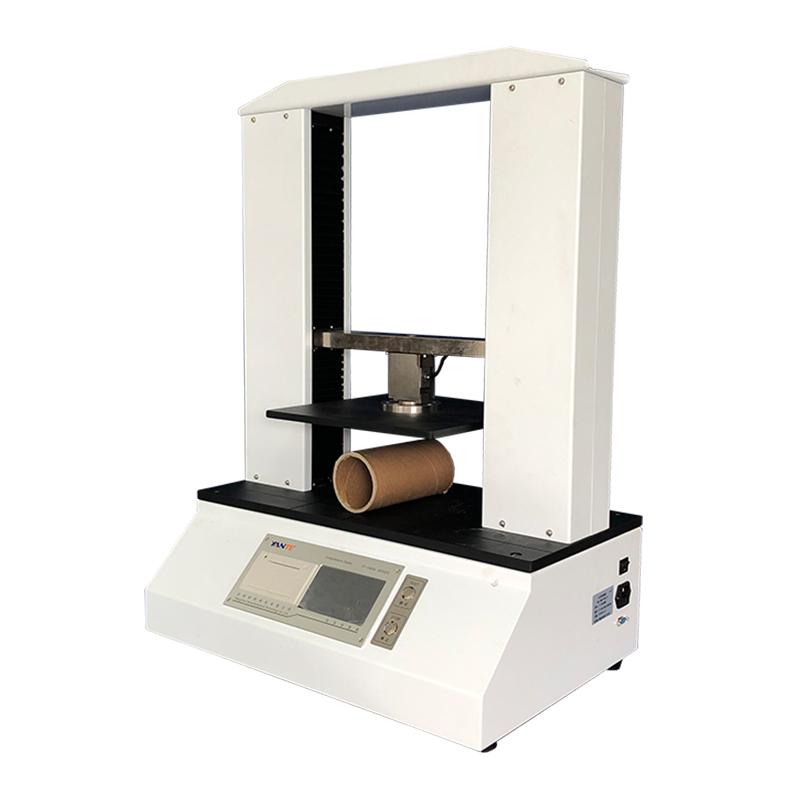

YT-YS05KN paper tube compression testing machine is a multi-functional and High Accuracy carton mass inspection equipment newly developed by YANTE brand, which is mainly used for the compressire strength test of all kinds of corrugated boxes. The testing machine adopts professional double screw and double guide column mechanical structure and stepper motor control. It has the characteristics of high parallelism, good stability and high Measurement accuracy. It has the functions of standard parameter testing, display, memory, statistics and printing.
Features
1. Strength test function: measurement of the maximum pressure resistance of the tested sample and the deformation when crushed
2. Ring Crush Test Function: Detect Ring Crush Test by Setting Basis Weight and Differential Pressure Parameters
3. Stacking test function: inspection of the ability of the sample to withstand constant pressure within a certain period of time
4. Data processing function: directly obtain statistical results of various data
5. Automatic reset and fault diagnosis functions
6. Double screw double guide column mechanical structure, high parallelism and good stability
7. Fast return speed and easy operation
Principle
The testing machine adopts the mechanical structure of double screw and double guide column and the control of stepping motor, and realizes the smooth lifting and lowering of the pressure plate through the precision transmission system. In the strength test, the maximum pressure resistance and crushing deformation of the sample are measured; Ring Crush Test is detected by setting Basis Weight and pressure difference parameters; Stacking test is monitored and maintained by the system in real time, and the measurement is completed after the set test time is reached.
Applications
Corrugated box compressire strength test
Standards
GB/T2679.8-1995、GB/T4857.4、GB/T4857.3、GB/T0032-2006
Steps
1. Strength test: placing the sample, measurement of maximum pressure resistance and crushing deformation
2. Ring pressure test: test after setting Basis Weight and differential pressure parameters
3. Stacking test: Set the compressive strength and test time parameters, and the system automatically maintains the pressure until the end of the test
Notice
• This testing machine is suitable for Ambient Temperature 10~ 30 ℃, relative humidity < 85%
• Strength test belongs to Destructiveness test
• Ring pressure test requires correct setting of Basis Weight and differential pressure parameters
• The system will automatically maintain the set pressure during the stacking test
• Please confirm that the equipment is operating within the specifications before use
