Overview

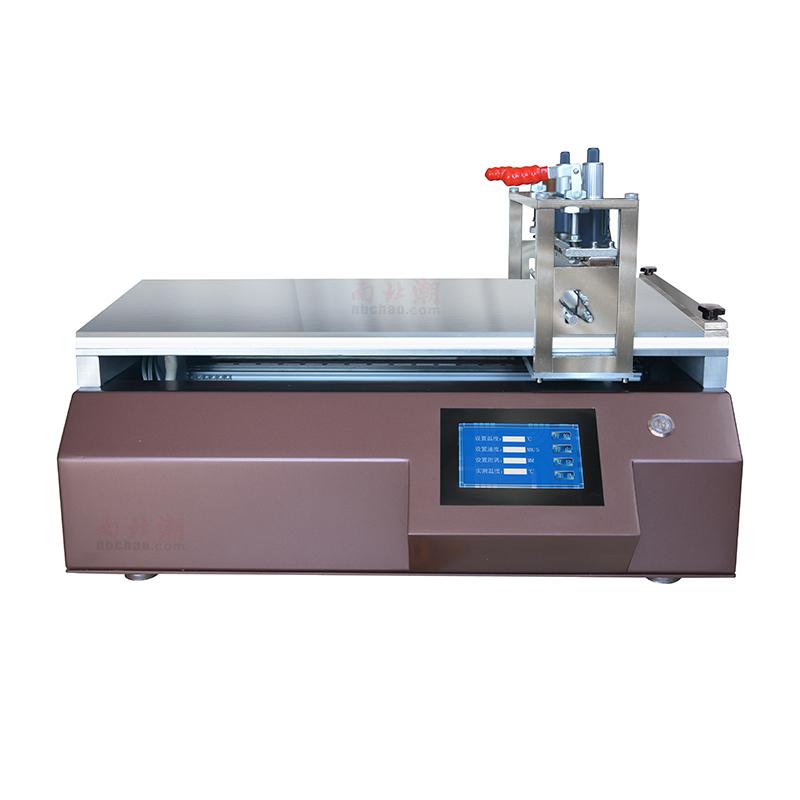

TBJ-X2 Automatic Film Applicator is a small experimental Spreader test equipment, manufactured with imported accessories, with excellent cost performance. The equipment ensures the uniformity and smoothness of the Spreader coating by precisely controlling the speed and stable pressure of the Spreader, solves the problem of artificial film inconsistency, and significantly improves the film reproducibility.
Features
1. Using imported accessories, excellent cost performance
2. Support bar + drawdown blade double coating method
3. Blade Coating accuracy up to +/- 0.003mm
4. Spreader thickness range is wide, drawdown blade 0.001~ 10mm adjustable, bar 1~ 571.5μm
5. coating speed 5~ 200mm/s stepless speed control
6. Equipped with 400 * 300mm Vacuum chuck platform
7. Touchscreen control, easy to operate
8. Support a variety of customization functions and optional Accessories
Principle
The device achieves uniform Spreader by precisely controlling the speed of the Spreader and the stable pressure applied to the film applicator. The substrate is fixed by Vacuum chuck method, and the coating speed is adjusted by the stepless speed change Control system to ensure that the precise wet-film is Spreader on different substrates, which greatly improves the reproducibility and conformity of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign university laboratories, scientific research institutions, material research and development, coating testing, Adhesive application
Steps
1. Spreader substrate prepared and placed on Vacuum chuck platform
2. Select the appropriate coating method (bar or drawdown blade) according to requirements
3. Set Spreader parameters (speed, thickness, travel, etc.) on the Touchscreen
4. Start the Device for Auto Spreader
5. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Choose the appropriate fixing method according to the thickness of the substrate
• Spreader parameter settings need to be adjusted according to specific material characteristics
• Regularly check the working status of the Vacuum chuck system
• Keep the equipment clean to avoid Spreader material residue affecting the accuracy
