Overview

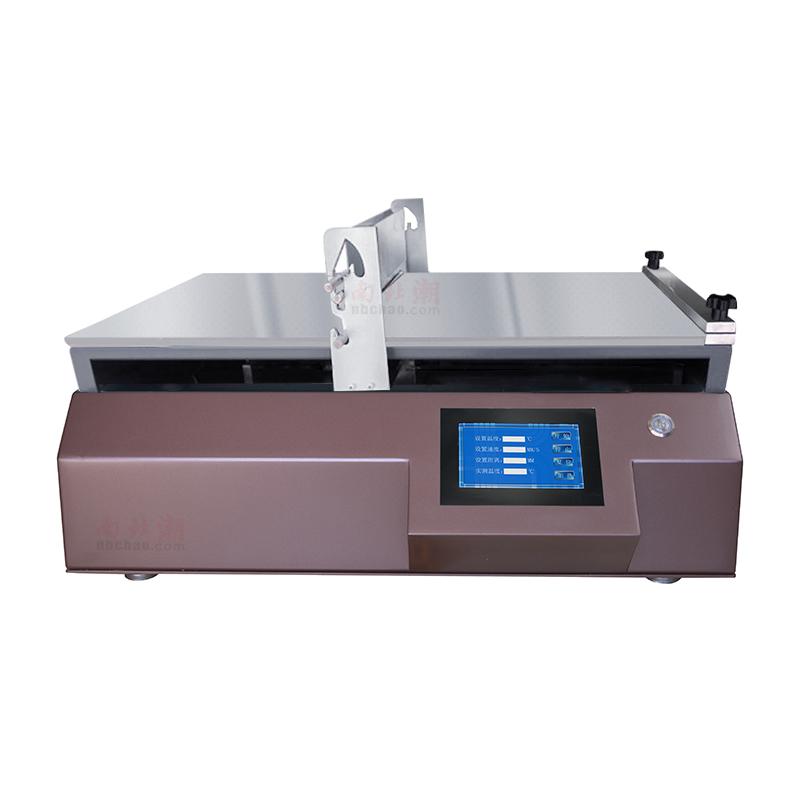

Touch Lab TBJ-A2 Automatic Film Applicator is a new upgrade product of China bar Lab Film Applicator. It is specially designed for Spreader accurate wet-film on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless test samples. It has been favored by many enterprises, R & D institutions and Universities & colleges.
Features
1. The coating method is bar Spreader, the thickness range is 1~ 571.5 μm (determined according to the bar model), and the accuracy is +/- 0.001mm; 2. The coating speed is 5~ 200mm/s, and the customization is supported < 5mm/s; 3. The effective coating area is 400 * 300mm, which can be customized; 4. The substrate is fixed with a mechanical fixing fixture; 5. Control mode is Touchscreen; 6. Heating Temperature range RT +~ 180 ℃, accuracy +/- 3 ℃; 7. The base plate material is aluminum alloy, and the Heating mode is aluminum Platen Heating; 8. Dimension 622 * 400 * 280mm, Net weight 60kg; 9. Host power single-phase 220V 50Hz 100VA; 10. Optional leakage tank, substrate fixing fixture, fine-tuning horizontal height support foot device, Glass plate, silicone pad and weight (for uneven application of Spreader substrate thickness), application width control baffle; 11. Customized automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader function.
Principle
The device uses the bar coating method to uniformly Spreader wet-film on the substrate, stabilizes the substrate with a mechanical fixture, controls the coating speed and heating temperature through Touchscreen, and ensures uniform temperature through aluminum Platen Heating, thus preparing a smooth and flat test sample.
Applications
Corporate R & D, Universities & colleges
Steps
1. Prepare the substrate and fix it on the mechanical fixture; 2. Select the bar model to set the thickness of the Spreader according to the needs; 3. Set the coating speed and heating temperature through the Touchscreen; 4. Start the device for Spreader operation; 5. Take out the sample for inspection after completion.
Notice
• Ensure that the power supply is single-phase 220V 50Hz before use; • Spreader thickness needs to be determined according to the bar model; • Heating temperature should not exceed 180 ° C; • Substrate fixation needs to be firmly avoided from sliding; • Customized functions need to be confirmed in advance; • Regular inspection of equipment maintenance status.
