Overview
The TQC GL0010 Gloss Meter is a 60 ° single angle Glossometer designed for measurement in the half Gloss range, suitable for medium Gloss surfaces. The instrument is easy to operate, the user only needs to place the Glossometer on the test plane, press the scan button to read the Gloss level value, no special training is required, suitable for paper, paints, plastic, wood and other materials.
Features
1. Optical inspection Stability
2. LED light source
3. OLED display with high visibility and contrast ratio
4. Ergonomic shape, suitable for left-handed and right-handed users
5. USB port
6. Users can calibrate
7. Menu operation
Principle
When the Glossometer is placed on the measured surface, the Illuminant forms a 60 ° angle to the surface and determines the Gloss level by measuring the intensity of the reflected light. The user simply presses the scan button and the instrument quickly displays the exact Gloss value.
Applications
Automotive industry, paints Coatings, paper, plastics, flooring, Encasement materials, yacht manufacturing, furniture products, large household appliances, household electronics, ceramics, food, other
Standards
ISO 2813、ASTM D523、ASTM D2457、ASTM C584、AS 1580 (602.2)、BS 3900 D5、DIN 67530、JIS Z 8741、ISO 7668、MFT 30064
Steps

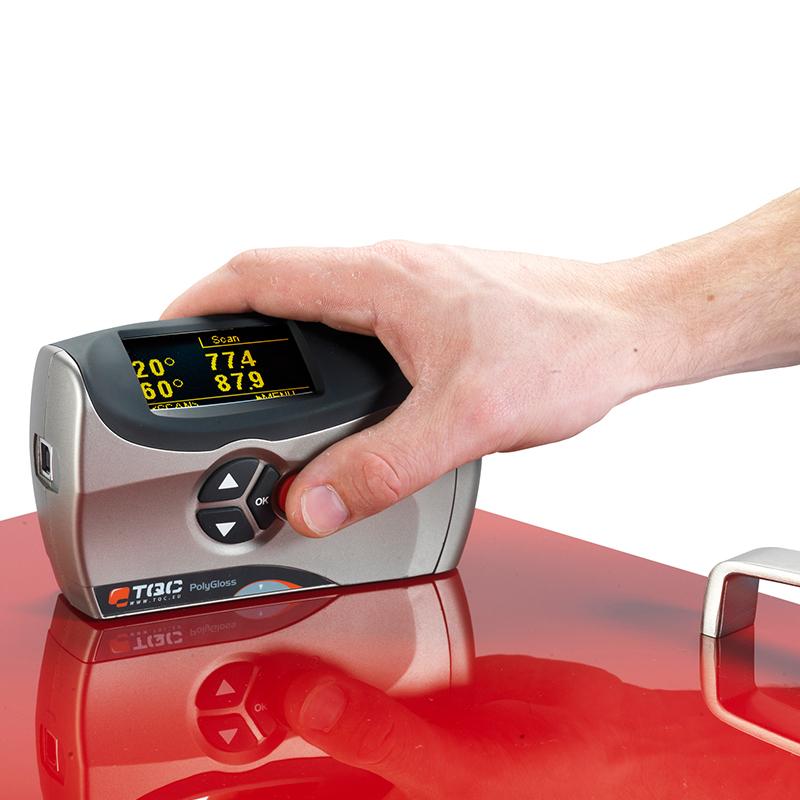

1. Place the Glossometer on the object to be tested
2. Press the "scan" button
3. Read the displayed value
Notice
• Although the material is sturdy, it cannot be dropped or tapped because it is a precision instrument
• Keep it clean
• Use a soft dry cloth to clean the equipment, do not clean with Miscellaneous materials such as wire brushes and sandpaper, the use of detergents may cause permanent damage
Do not use compressed air cleaning equipment
• When Glossometer is not in use, put it in the box
It is recommended to calibrate once a year
Do not use in high or low temperature environments
• Glossometer drying
