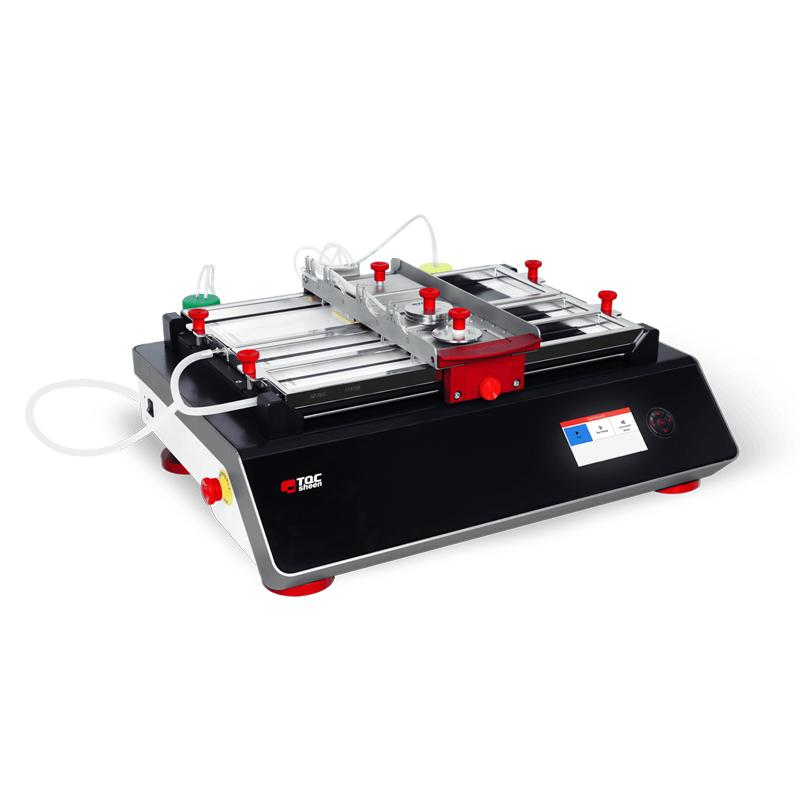

TQC sheen AB6010 Scrub Resistance Tester scruf abrasion resistance testing instrument

Name: TQC sheen AB6010 Scrub Resistance Tester scruf abrasion resistance testing instrument
Brand: TQC sheen
SKU: NB032300
Price: 12607.0 USD
Availability: InStock

$ 12607.00Ex works

Scruf Travel 20-300mm adjustable, speed range 1-60cpm, equipped with TFT full color display and intelligent Operating interface, supports manual testing and is compatible with a variety of standard accessories, suitable for coating Abrasion Resistance evaluation.

Model

Get Quote

Category : Scrub Resistance Tester

Brand : TQC sheen

SKU : NB032300

Service :The delivery and service By NBCLab.Com

Overview

The Scrub Resistance Tester (model AB6010) is used to simulate abrasion caused by cleaning or daily use, testing the tolerance of paints, varnishes or coatings to scratches, abrasions and color loss caused by wet or dry grinding. The minimum number of strokes for coating failure can be determined by testing a specified number of strokes or periodic inspection as a pass or fail test.

Features

1. Default range options 2. Simple and intuitive Operating interface with Triple i Control (intelligent lighting interface) 3. Full color display 4. Easy-to-update software 5. Manual testing 6. Compatible with a variety of accessories

Principle

The instrument simulates abrasion caused by daily cleaning or use, and performs Abrasion Resistance and washable tests on coated panels through scruf actions to evaluate the coating's resistance to scratching, abrasion, and fading.

Standards

DIN 53778、ASTM D2486、ASTM D4213、ASTM D4828、ASTM D3450、ISO 11998、ASTM F1319、ISO 105X12、Renault D431010、GME 60269、ECCA T11、EN 13523-11、EN 60730-1、EN 13300

Steps

1. Set scruf Travel and Speed parameters 2. Install the test panel 3. Start the test and monitor the number of strokes 4. Regularly check the coating status 5. Record the minimum number of failed strokes or specify the number of strokes as a result

Scruf Travel
20~300mm
Scruf speed
1-60 cycles per minute
Scruf speed accuracy
+/- 1% of the set speed
Scruf Travel accuracy
±0.01mm
Motor Power
Up to 90 w
power supply
24 VDC / 100-240 V / 50-60 Hz
Flow rate of pump
0.0~ 3.0 ml per minute/0.0~ 0.79 GPH
Dimension
490x640x235mm
Machine weight
30~35 kg
Maximum panel width
70mm
Maximum panel length
350mm
Maximum panel height
35mm
Pump depth
530mm
display screen
480 x 272 pixel TFT display
control button
5-Key navigation switch (mouse and keyboard optional)
Menu Language
English, Spanish, Chinese, Polish, German, French, Italian, Japanese, Russian, Turkish
Meet the standard
ASTM D2486，ASTM D3450，ASTM D4213，ASTM D4828，ASTM F1319，ISO 11998

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
